NEC MultiSync P462 User Manual

English-14
Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

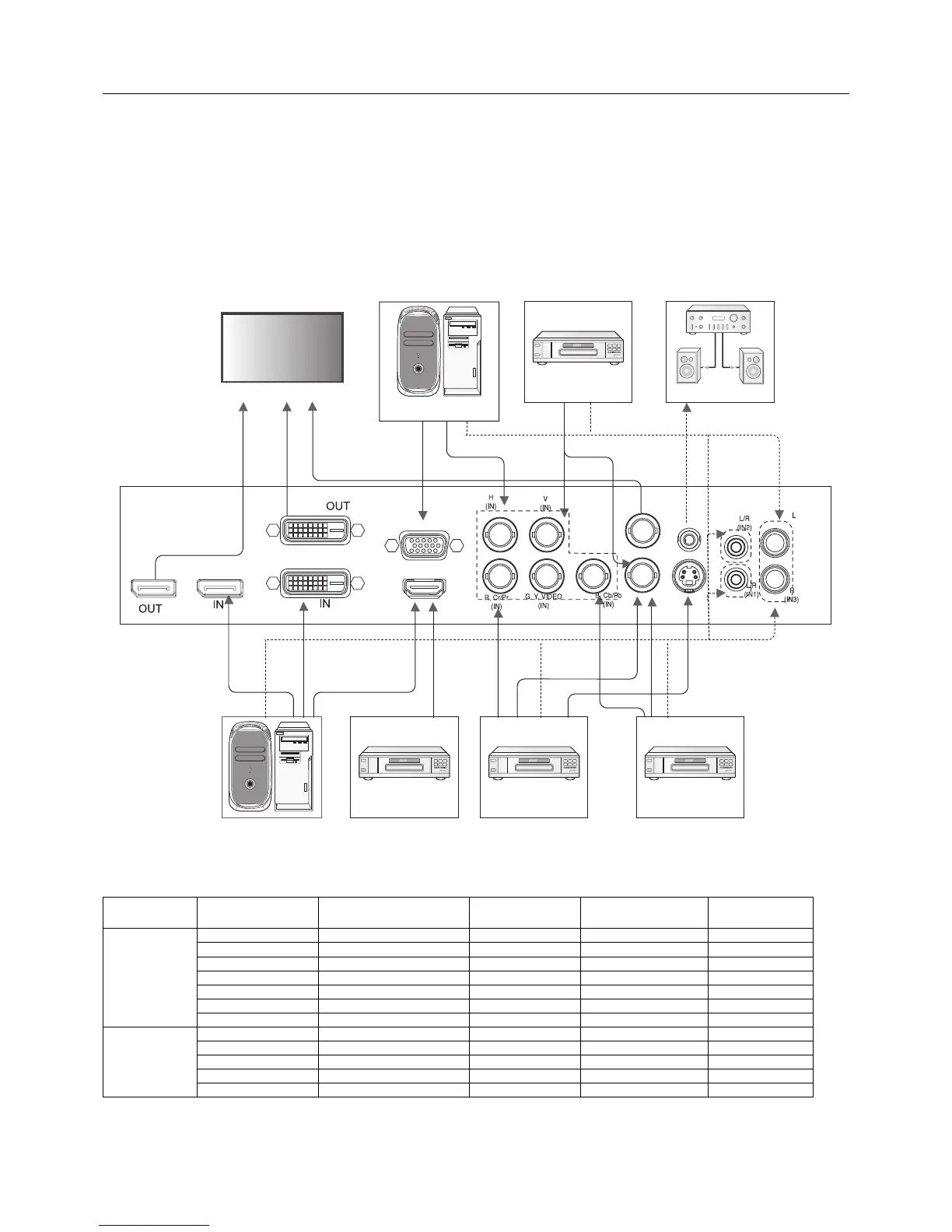

Wiring Diagram
DVD player
with HDMI out
DVD player
VCR or
DVD Player
Stereo Amplifi er
Second monitor*
Computer (Digital)
DVD player with
SCART OUT
Computer (Analog)
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
NOTE: Solid lines = video signal. Dotted lines = audio signal.
Connected
equipment
Connecting
terminal
Setting in Terminal Mode Input signal name
Connecting
Audio terminal
Input button
in remote control
AV
DVI (DVI-D) DVI MODE: DVI-HD DVI AUDIO IN1, IN2, IN3 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
5BNC+VIDEO BNC MODE: SCART SCART AUDIO IN1, IN2, IN3 DVD/HD
VIDEO1 (BNC) - VIDEO1 AUDIO IN1, IN2, IN3 VIDEO
S-VIDEO - S-VIDEO AUDIO IN1, IN2, IN3 S-VIDEO
VIDEO2 (5BNC) BNC MODE: VIDEO VIDEO2 AUDIO IN1, IN2, IN3 VIDEO
DVD/HD (5BNC) BNC MODE: COMPONENT DVD/HD AUDIO IN1, IN2, IN3 DVD/HD
PC
VGA (D-Sub) - VGA AUDIO IN1, IN2, IN3 VGA
DVI (DVI-D) DVI MODE: DVI-PC DVI AUDIO IN1, IN2, IN3 DVI
RGB/HV (5BNC) BNC MODE: RGB RGB/HV AUDIO IN1, IN2, IN3 RGB/HV
DisplayPort - DPORT - DISPLAYPORT
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
*1: depend on signal type.
• AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [IN1], [IN2] or [IN3] in AUDIO INPUT in OSD menu
or press the AUDIO INPUT button (remote control).

NEC MultiSync P462 Specifications

General

Panel life	- h
Pixel pitch	0.53 x 0.53 mm
Response time	8 ms
Display diagonal	46 \
Display brightness	500 cd/m²
Display technology	LCD
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Display number of colors	16.78 million colors
Active display area (W x H)	1018.1 x 572.7 mm
Ethernet LAN	Yes
Multi-display supported	-
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	300 x 300 mm
Power consumption (standby)	1 W
Power consumption (typical)	155 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 90 %

Weight and Dimensions

Depth	103 mm
Width	1055.4 mm
Height	608.6 mm
Weight	23800 g
