English-18
NORMAL: Displays the aspect ratio the same as it is sent
from the source.
FULL: Fills entire screen.
WIDE: Expands a 16:9 letter box signal to fill entire screen.
ZOOM (DYNAMIC): Expands a 4:3 pictures to fill the entire
screen with non-linearity. Some of the outside image area
will be cut off due to expansion.
ZOOM
The image can be expanded beyond the active display area.
The image which is outside of active display area is not
shown.
ZOOM
ZOOM
Using Power Management
The LCD monitor follows the VESA approved DPM Display
Power Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the “ON” mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
NOTE: Depending on the PC and video card used, this
function may not operate.
Selecting a video source
To view a video source:
Use the input button to set [VIDEO1], [VIDEO2], [S-VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.

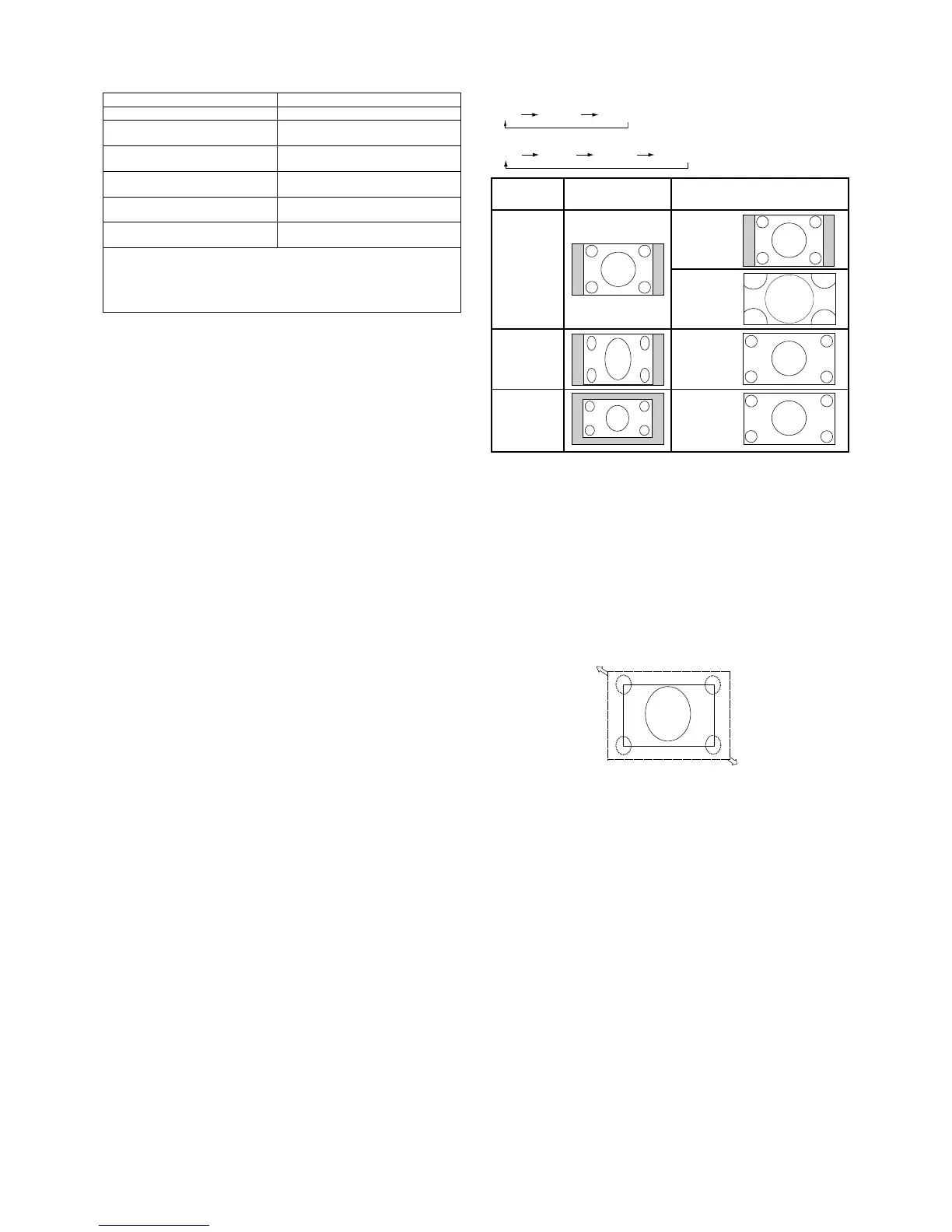

Aspect ratio
of image
NORMAL
ZOOM
(DYNAMIC)
FULL
WIDE
4:3
Squeeze
Letterbox
Unchanged view*
6
Recommended selection
for picture aspect*
6
*
6
Grey areas indicate unused portions of the screen.
Power Indicator
Mode Status Indicator Light
Power ON Green*
2
Power OFF (Eco Standby)*
1
Red
Power consumption under 0.7W*
3
Power OFF (Standby) Amber
Power consumption under 2W*
3,
*
4
Power Save Amber Blinking
Power consumption under 4W*
3,
*
5
Power Standby when Green and Amber blink alternately
“SCHEDULE SETTINGS” enabled
Diagnosis (Detecting failure) Red Blinking
(See Troubleshooting page 35)
*1 When in Eco Standby Mode DDC/CI control does not function.
*2 If “OFF” is selected in POWER INDICATOR (page 24), the LED will not light when
the LCD monitor is in active mode.
*3 “RS-232C” is selected in EXTERNAL CONTROL.
*4 DDC/CI should be disabled.
*5 No DisplayPort connection.
Picture Aspect
DVI, VGA, RGB/HV, DPORT
FULL ZOOM NORMAL
HDMI, DVD/HD1, DVD/HD2, SCART, VIDEO1, VIDEO2, S-VIDEO, TV*
FULL WIDE ZOOM NORMAL
*: The product you purchased may not have this feature.
