NEC MultiSync X464UNS User Manual

English-14
Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

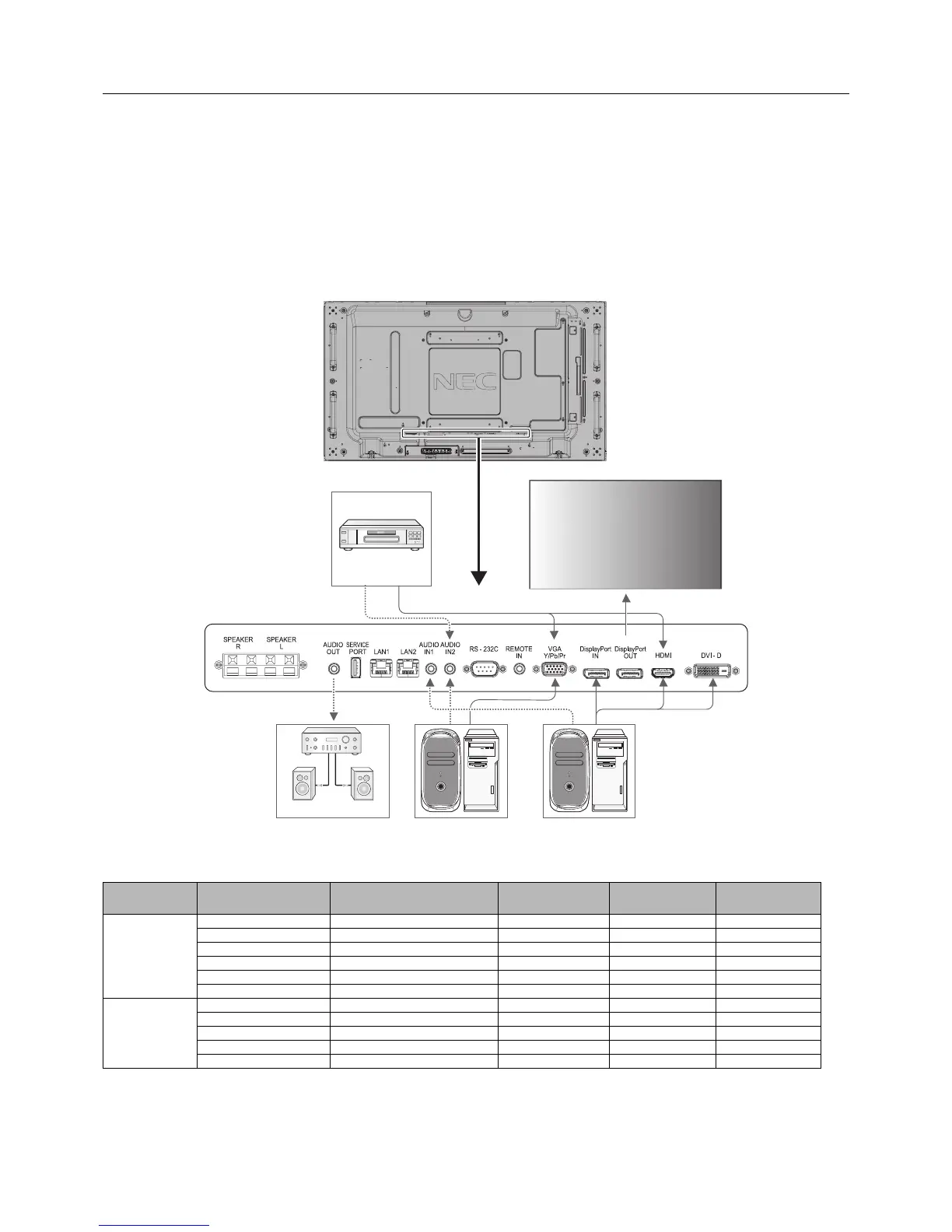

Wiring Diagram
Solid lines = video signal
Dotted lines = audio signal
Stereo Amplifi er
Second monitor*
Computer (Analog) Computer (Digital)
DVD Player
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected
equipment
Connecting
terminal
Setting in terminal mode Input signal name
Connecting
audio terminal
Input button
in remote control
AV
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-HD DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) D-SUB MODE RGB VGA AUDIO IN1/IN2 RGB/HV
VGA (D-Sub) D-SUB MODE COMPONENT COMPONENT AUDIO IN1/IN2 Y/Pb/Pr
Option RAW/EXPAND*
1
OPTION OPTION OPTION
PC
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-PC DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) - VGA AUDIO IN1/IN2 RGB/HV
Option RAW/EXPAND*
1
OPTION OPTION OPTION
*1: depend on signal type.
