Controls
22

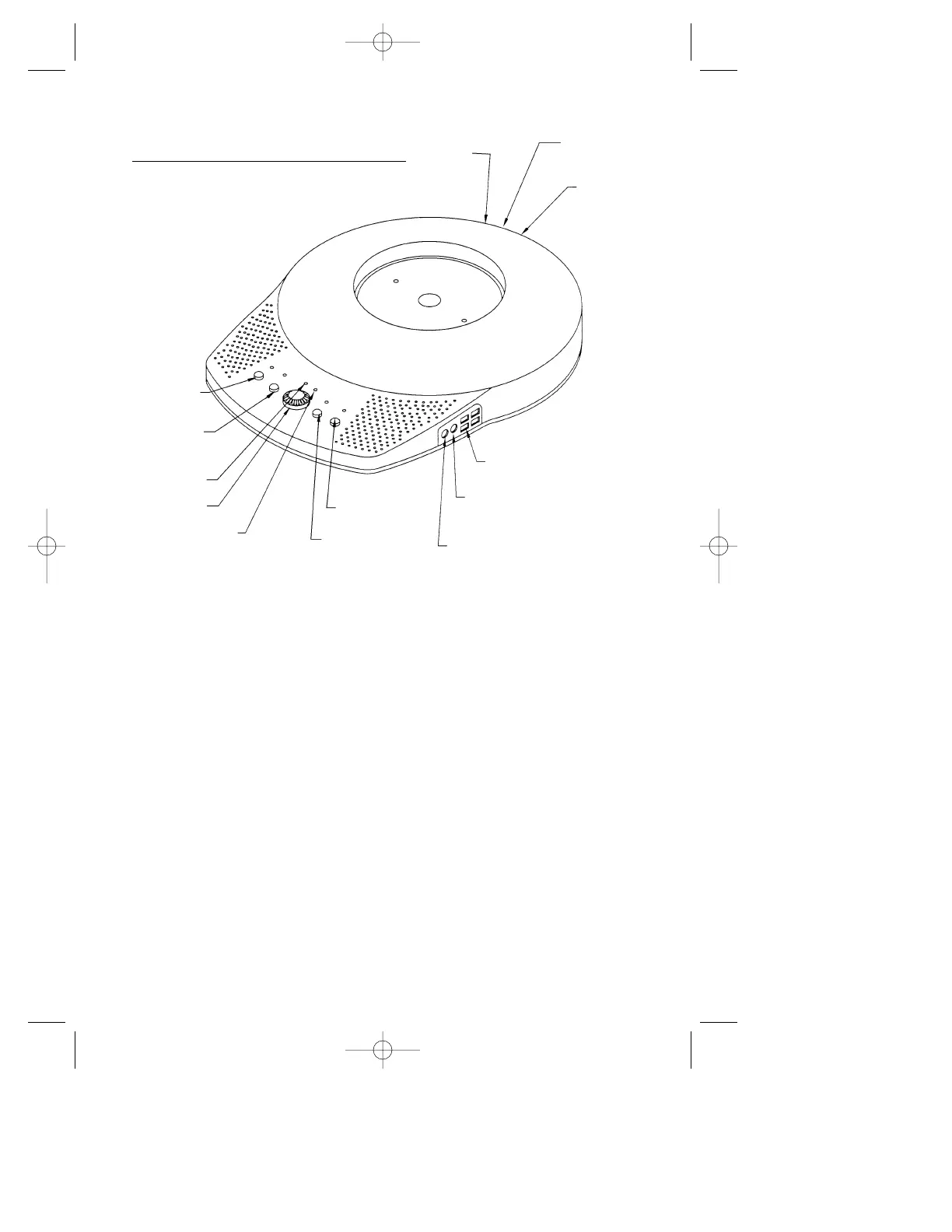

POWER: Indicator light illuminates when power is applied to the IntelliBase
™
USB Hub and Audio.
USB: Indicator light illuminates when the IntelliBase is connected to a computer with
an active USB port.
USB INPUT JACK: This connection provides bi-directional communication with the
host computer using the USB cable provided with the IntelliBase.
USB OUTPUT JACK: Can be connected to virtually any USB device using a standard
USB cable terminated with a Series A plug. Includes both high and low speed and
high and low power USB devices.
NOTE: All four USB output jacks are identical and may be used interchangeably.
HEADPHONE OUTPUT JACK: Headphones can be used to listen to audio in private.
When the headphone plug is inserted into the headphone jack, the speakers are
automatically disconnected and sound is heard through the headphones.
NOTE: Headphones not included. The headphone plug required is a mini stereo
type measuring 3.5mm (1/8”). The headphone impedance should be approximately
32 ohms.
