NETGEAR ProSafe GS748T Hardware Installation Guide

21
GS748T Gigabit Smart Switch
Step 2: Install the Switch
The GS748T can be used on a flat surface or mounted in a standard network equipment
rack.
Install the Switch on a Flat Surface
The switch ships with four self-adhesive rubber footpads. Stick one rubber footpad on each of
the four concave spaces on the bottom of the switch. The rubber footpads cushion the switch
against shock and vibrations. They also provide ventilation space between stacked switches.
Install the Switch in a Rack
To install the switch in a rack, you need the 19-inch rackmount kit supplied with switch.
1. Attach the supplied mounting brackets to the side of the switch.
2. Insert the screws provided in the rackmount kit through each bracket and into the bracket
mounting holes in the switch.
3. Tighten the screws with a #1 Phillips screwdriver to secure each bracket.
4. Align the mounting holes in the brackets with the holes in the rack, and insert two pan-head
screws with nylon washers through each bracket and into the rack.
5. Tighten the screws with a #2 Phillips screwdriver to secure mounting brackets to the rack.

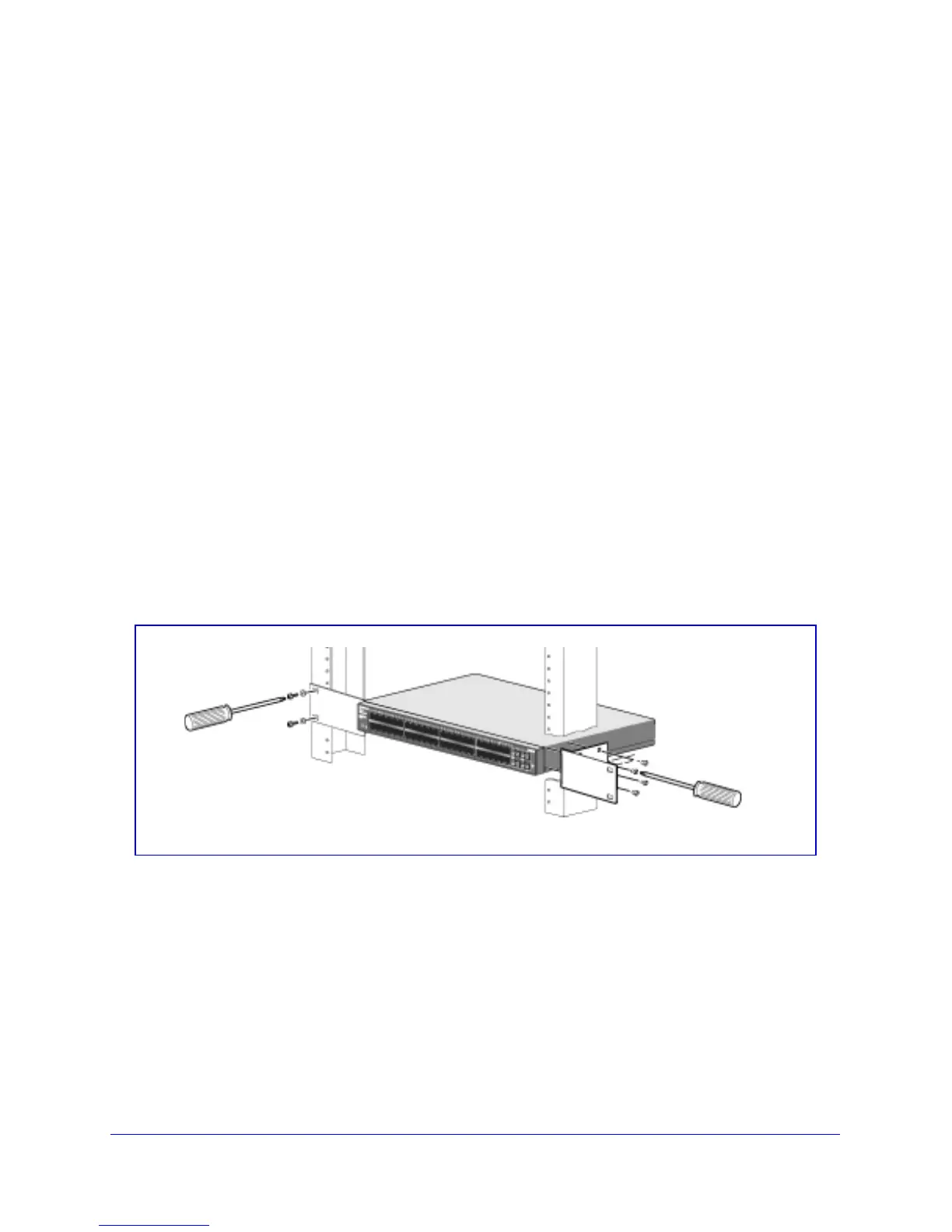

Figure 6. Rack Mount

NETGEAR ProSafe GS748T Specifications

Interface

RJ-45 connectors	48
SFP GBIC module bays	4
Auto Uplink	Yes

Performance Specifications

Bandwidth	40 Gbps
Network latency	Less than 20 microseconds
Buffer memory	1, 632 KB

Power Supply

Power consumption	70 W maximum
Input voltage	100-240VAC
Frequency	50-60 Hz

Physical Specifications

Dimensions (H x W x D)	1.7 x 17.3 x 10.1 in
Weight	8.8 lbs
Weight (kg)	4.0 kg

Environmental Specifications

Operating temperature	0 to 40°C
Storage temperature	-20 to 70°C
Operating humidity	90% maximum relative humidity
