Nibe AMS 10 Series User Manual

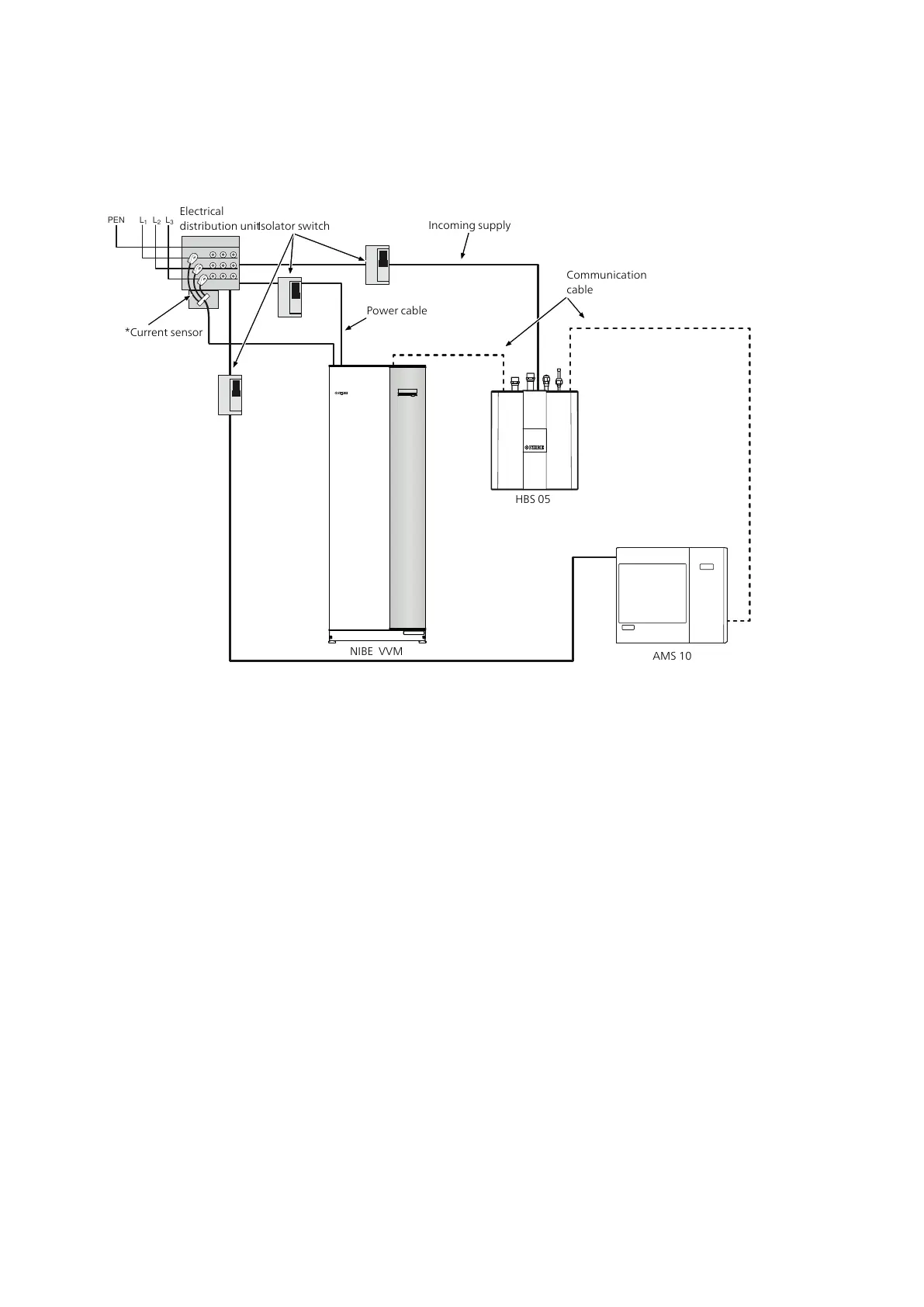

Principle diagram, electrical installation
LPEN
1
L
2
L
3
Electrical
distribution unit
Isolator switch
Incoming supply
Communication
cable
HBS 05
AMS10
Power cable
*Current sensor
NIBE VVM
* Only in a 3-phase installation.
Electrical components
See component location in chapter The heat pump
design, Electrical panel on page 19.
Accessibility, electrical
connection
Removing the covers
See chapter Removing the covers on page 12.
AMS 10Chapter 5 | Electrical connections26

Nibe AMS 10 Series Specifications
