21VEDEX 3300
Other information
Enclosed kit/Accessories
Enclosed kit
1 x Soot brush
1 x Soot brush shaft
1 x Ash scraper
1 x Draining valve
1 x Ash shovel
1 x Flue gas thermometer
1 x Soot door with gasket
1 x Angled flue pipe
6 x Turbulators
1 x Soot panel
1 x Installation and Maintenance Instructions

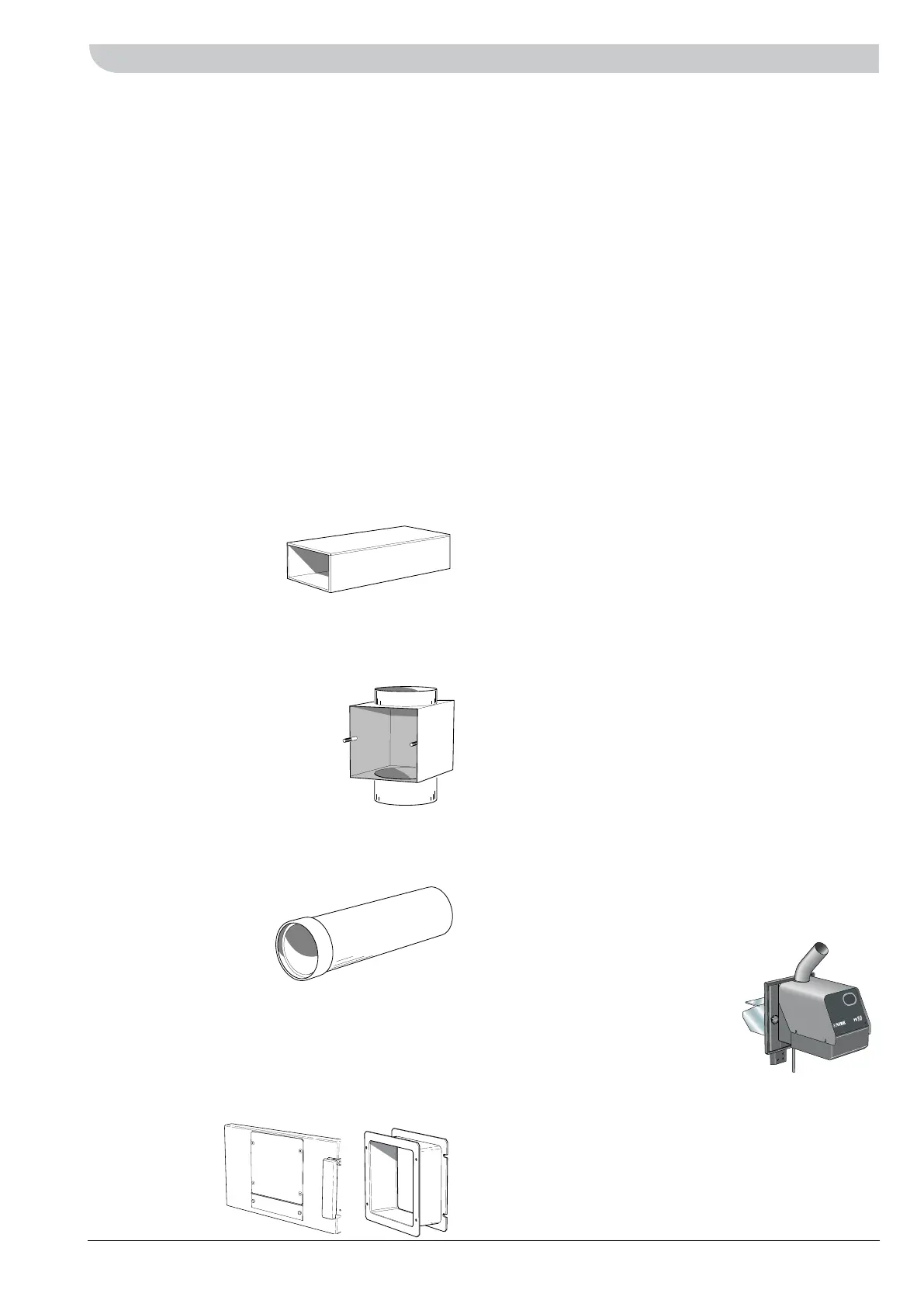

Flue pipe extension for angled flue pipe
Rectangular flue pipe extension for angled flue pipe.
Dim ext. 180 x 123 mm
Length 750 mm
RSK no. 621 07 40
Accessories
Vertical flue pipe
For vertical chimney connections this unit is used for the
vertical flue pipe instead of the supplied angled flue pipe.
Collar Ø int. 159 mm
Lower connector Ø int. 139 mm
Ø ext 144 mm
RSK no. 621 07 37
LEK
Flue pipe extension for vertical flue pipe
Round flue pipe extension for vertical flue pipe.
Ø int. 125 mm
Ø ext 133 mm
Length 750 mm
RSK no. 621 07 39
Pellet burner hatch incl. pellet connector
Designed to replace the combustion chamber.
Enclosed:
1 x cover for fan outlet
2 x cover discs for secondary air inlet
Part no. 089 878
LEK
LEK
Charge package
For best function of the system we recommend our charge
package, which contains:
AV Shut off valve 1” int with gasket 2
AV Ball valve with union nut and gasket 2
AV Ball valve with knob 1” int/ext 2
AVT Draining valve 2
BV Non-return valve 1
CP1 Charge pump 1
CP2 Circulation pump 1
ELK Immersion heater 6 kW with gasket 1
ELK Connection box 1
ELK Plate y-connection 1
LV Venting valve 2
RC Control box 1
SV1 Shunt valve 1
SV4 Thermal valve 1
SÄV/SV2 Valve connection with safety and
mixer valve 1
RSK no. 687 60 68
Part No. 089 765
Pellet burner NIBE PB 10
Robust screw fed burner for pellet
firing.
RSK no. 637 39 94
Part No. 618 904
Feed screws
Feed screws for pellet burner.
1.5 m RSK no. 637 39 90 Part No. 618
905
2.5 m RSK no. 637 39 91 Part No. 618
906
