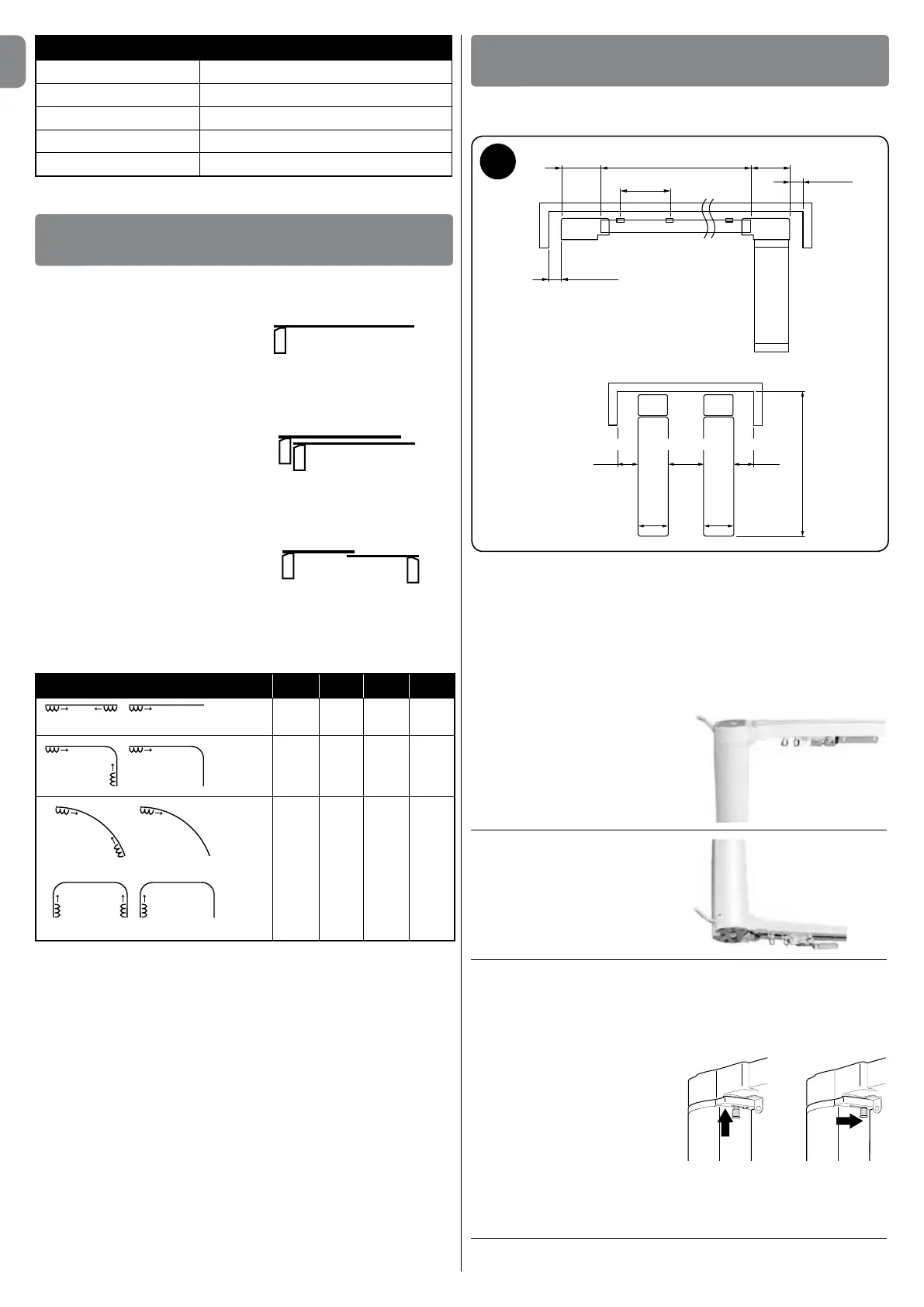

Nice Era Track Edge User Manual

2 – English
EN
Rail
Rail Dimension Width 32mm×Height 26mm
Length of Rail 12 meters maximum
Load Max.50kg with 4 meters straight rail
Textile Belt 10mm teeth synchronized belt
Minimum Radium for Rail 400mm
APPLICATION
4
Single Rail System
1 motor with 1 set of rail ac-
cessories
Double Rail System
2 motors with two rails instal-
led in parallel
Double Opposite Rail System
2 motors with two rails instal-
led in opposite positions
Rail Loading Characters
4m 6m 8m 12m
50kg 40kg 30kg 20kg
R400 40kg 30kg 20kg
R2000
25kg 20kg
R400X2
INSTALLATION
5
Installation Dimensions
4
5050
30
70 70
20
50
230
30
Length of Rail
Maximum
at least
Allow to touch
500
at least at least at least
Please make sure the minimum space requirements are fulfil-
led during installation. The dimensions in drawings are in mm.
Installation Ways
There are two ways of installation: universal installation and
upside down installation.
Universal Installation
Upside Down Installation
Only the Era Track Action can use upside down installation.
Motor installation
1. Insert the motor to the dri-
ver unit on rail.
2. Push the handle as indica-
ted in the picture to lock
the motor.
