10. TYPICAL ASSEMBLIES AND DRAWINGS

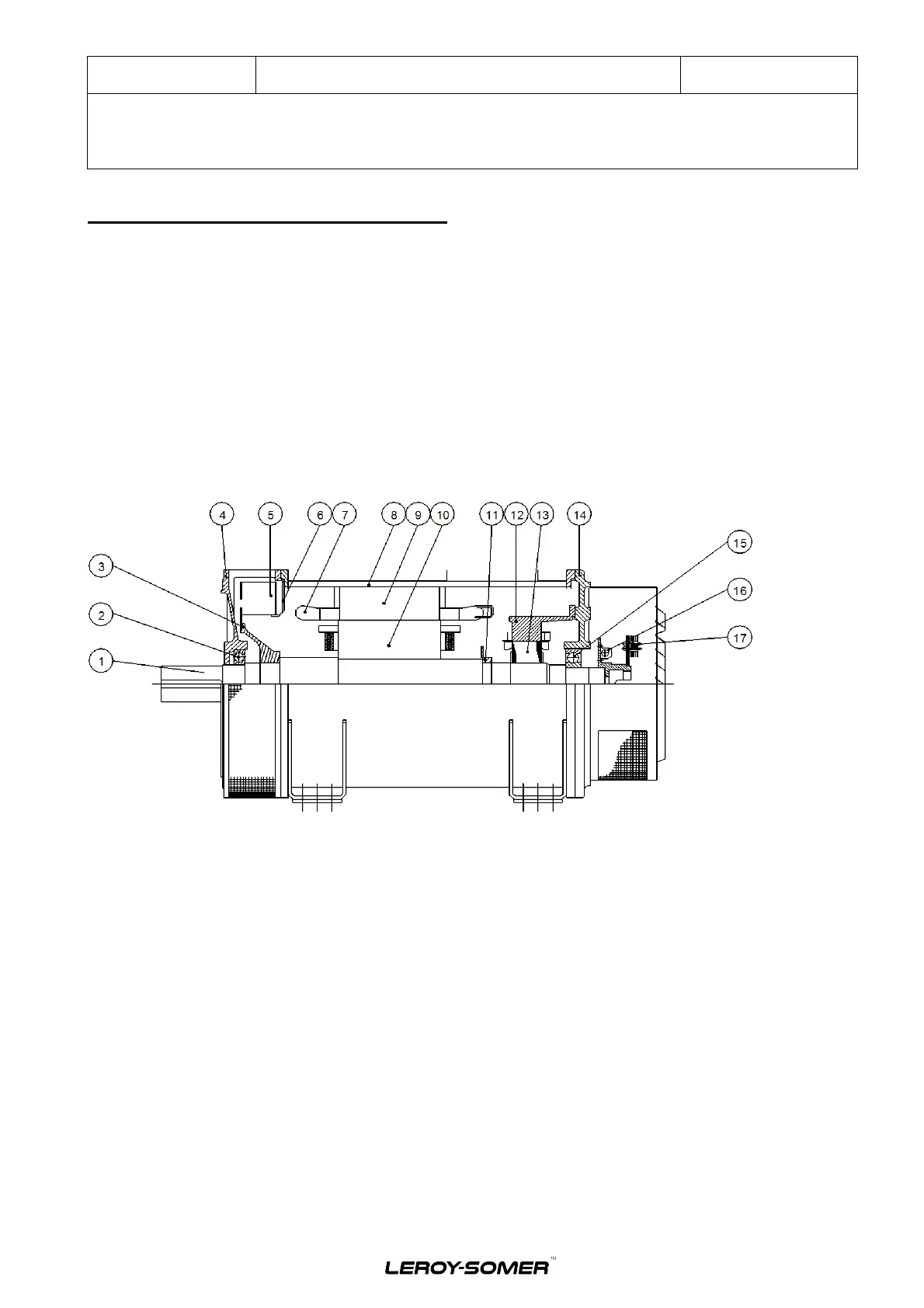

10.1 MACHINE CUT VIEWS
10.1.1 Machine type A52
1 Rotor
2 Bearing (drive end)
3 Fan hub
4 Drive end shield
5 Fan
6 Fan screen
7 Stator winding
8 Stator ribs
9 Stator lamination
10 Polar wheel
11 Balancing disc
12 Exciter field
13 Exciter armature
14 Non drive end shield
15 Bearing (non drive end)
16 Rotating resistances
17 Rotating diodes
18 Diode bridge cover
Electric Power Generation
Installation and maintenance
5654 en - 2017.10 / a
LSA 52.2 MHV
Industrial Range Alternators - 4 pole
34
