Nikon D300S User Manual

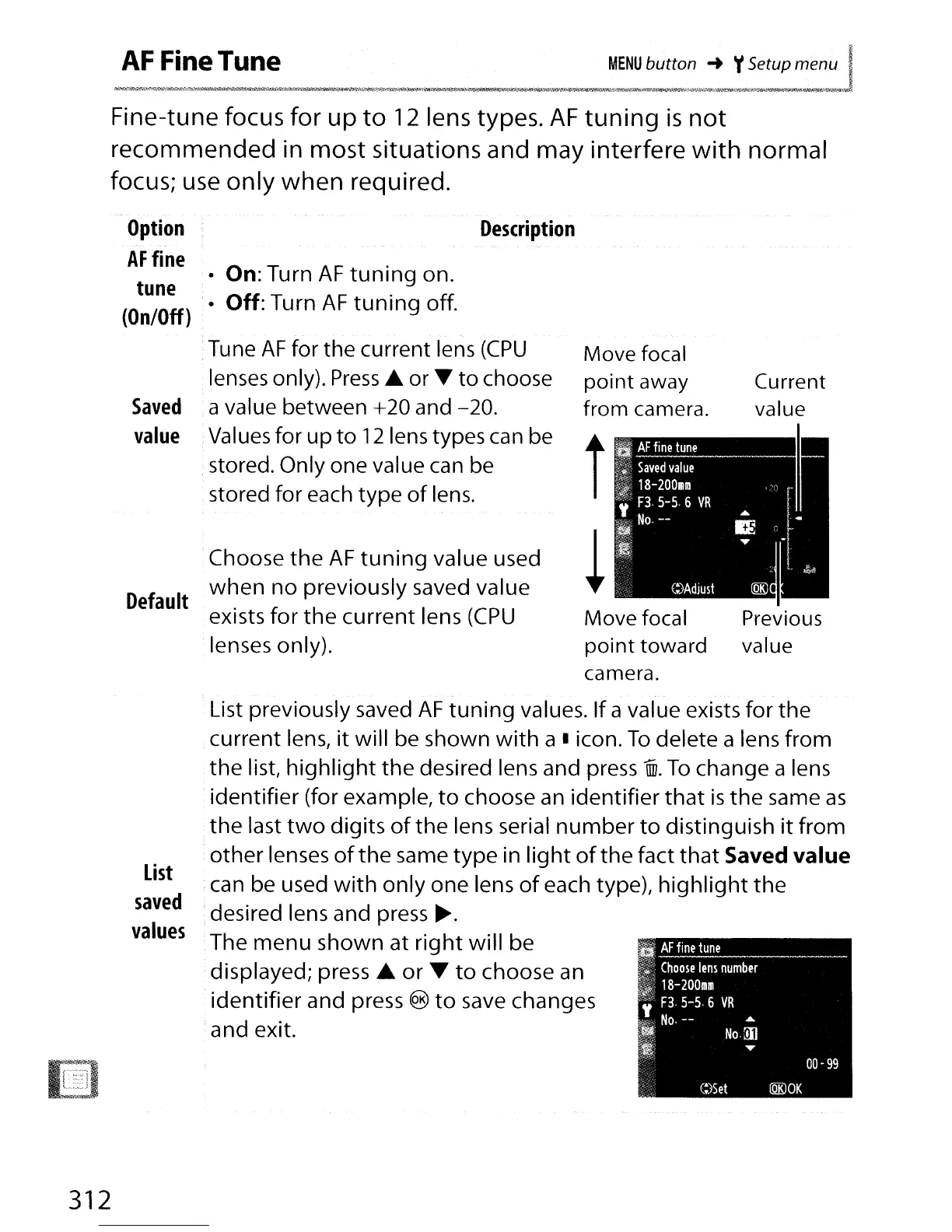

AFFineTune
MENU button -+ 't Setup menu
Fine-tune focus for up to 12 lens types. AF tuning is not
recommended in most situations and may interfere with normal
focus; use
only when required.
Option
Description
AF fine
• On: Turn AF tuning on.
tune
• Off: Turn AF tuning off.
(On/Off)
Tune AF for the current lens (CPU
Move focal
lenses only). Press'" or
T to choose
point away
Current
Saved
a value between +20 and -20.
from camera. value
value
Values for up to 121ens types can be
stored. Only one value
can be
stored for each type
of lens.
Choose the AF tuning value used
~ ,
Default
when no previously saved value
exists
for the current lens (CPU
Move focal Previous
lenses only). point toward value
camera.
312
List
saved
values
List previously saved AF tuning values. If a value exists for the
current lens, it will be shown with a I icon. To delete a lens from
the list, highlight the desired lens and press illJ. To change a lens
identifier (for example,
to choose an identifier that is the same as
the last two digits of the lens serial number to distinguish it from
other lenses of the same type in light of the fact that Saved value
can be used with only one lens of each type), highlight the
desired lens and press ~.
The menu shown at right will be
displayed; press
.... or T to choose an
identifier and press ® to save changes
and exit.

Nikon D300S Specifications

General

Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848 3216 x 2136 2144 x 1424
Digital zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Servo Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	921000 pixels
Magnification	0.94 x
Viewfinder type	Optical
Eye relief	19.5 mm
Image editing	Resizing, Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Cloudy, Direct sunlight, Fine, Flash, Fluorescent, Incandescent, Manual, Shade
Playback modes	Zoom
Camera playback	Highlights, Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Diopter adjustment (D-D)	-2 - 1
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Product color	Black
Battery type	EN-EL3e
Battery life (CIPA standard)	950 shots
Number of batteries supported	1
Flash modes	Red-eye reduction, Slow synchronization
Flash sync-speed	1/250 s
Flash range (wide)	- m
Memory slots	2
Compatible memory cards	CF, CF Type II, SD, SDHC
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
Video resolutions	320 x 216, 640 x 424, 1280 x 720 pixels
Motion JPEG frame rate	24 fps
Video formats supported	AVI
Maximum video resolution	1280 x 720 pixels
Analog signal format system	NTSC, PAL
Audio system	Mono
USB version	2.0

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	840 g
