Nikon D300S User Manual

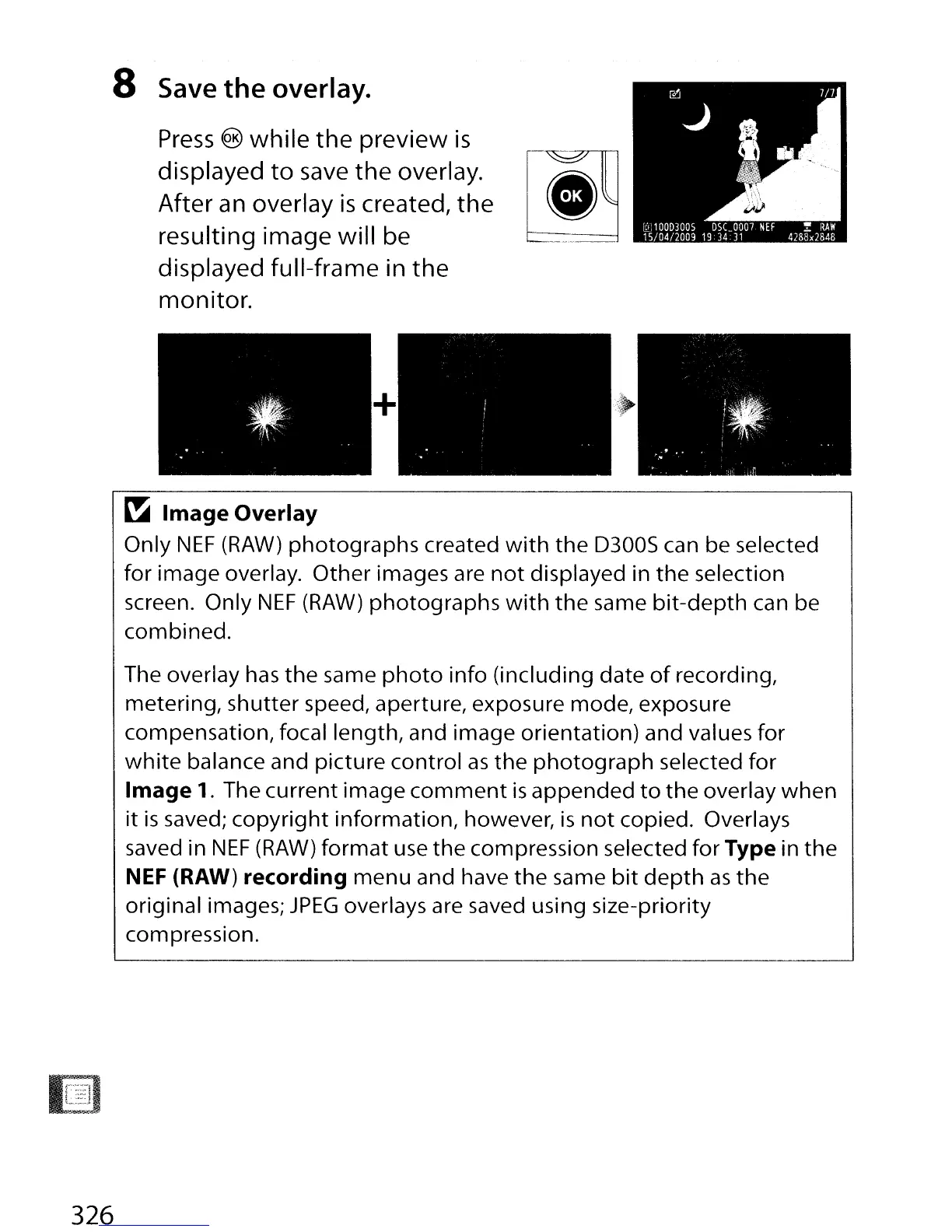

8 Save the overlay.
Press ® while the preview is
displayed to save the overlay. F~
After an overlay is created, the •
resulting image will
be------
displayed full-frame in the
monitor.
+
~ Image Overlay
Only
NEF (RAW) photographs created with the 03005 can be selected
for image overlay. Other images are
not displayed in the selection
screen. Only
NEF (RAW) photographs with the same bit-depth can be
combined.
The overlay has
the same photo info (including date of recording,
metering, shutter speed, aperture, exposure mode, exposure
compensation, focal length, and image orientation) and values for
white balance and picture control as the photograph selected for
Image 1. The current image comment is appended to the overlay when
it is saved; copyright information, however, is not copied. Overlays
saved in
NEF (RAW) format use the compression selected for Type in the
NEF (RAW) recording menu and have the same bit depth as the
original images; JPEG overlays are saved using size-priority
compression.
326

Nikon D300S Specifications

General

Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848 3216 x 2136 2144 x 1424
Digital zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Servo Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	921000 pixels
Magnification	0.94 x
Viewfinder type	Optical
Eye relief	19.5 mm
Image editing	Resizing, Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Cloudy, Direct sunlight, Fine, Flash, Fluorescent, Incandescent, Manual, Shade
Playback modes	Zoom
Camera playback	Highlights, Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Diopter adjustment (D-D)	-2 - 1
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Product color	Black
Battery type	EN-EL3e
Battery life (CIPA standard)	950 shots
Number of batteries supported	1
Flash modes	Red-eye reduction, Slow synchronization
Flash sync-speed	1/250 s
Flash range (wide)	- m
Memory slots	2
Compatible memory cards	CF, CF Type II, SD, SDHC
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
Video resolutions	320 x 216, 640 x 424, 1280 x 720 pixels
Motion JPEG frame rate	24 fps
Video formats supported	AVI
Maximum video resolution	1280 x 720 pixels
Analog signal format system	NTSC, PAL
Audio system	Mono
USB version	2.0

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	840 g
