Nikon D300S User Manual

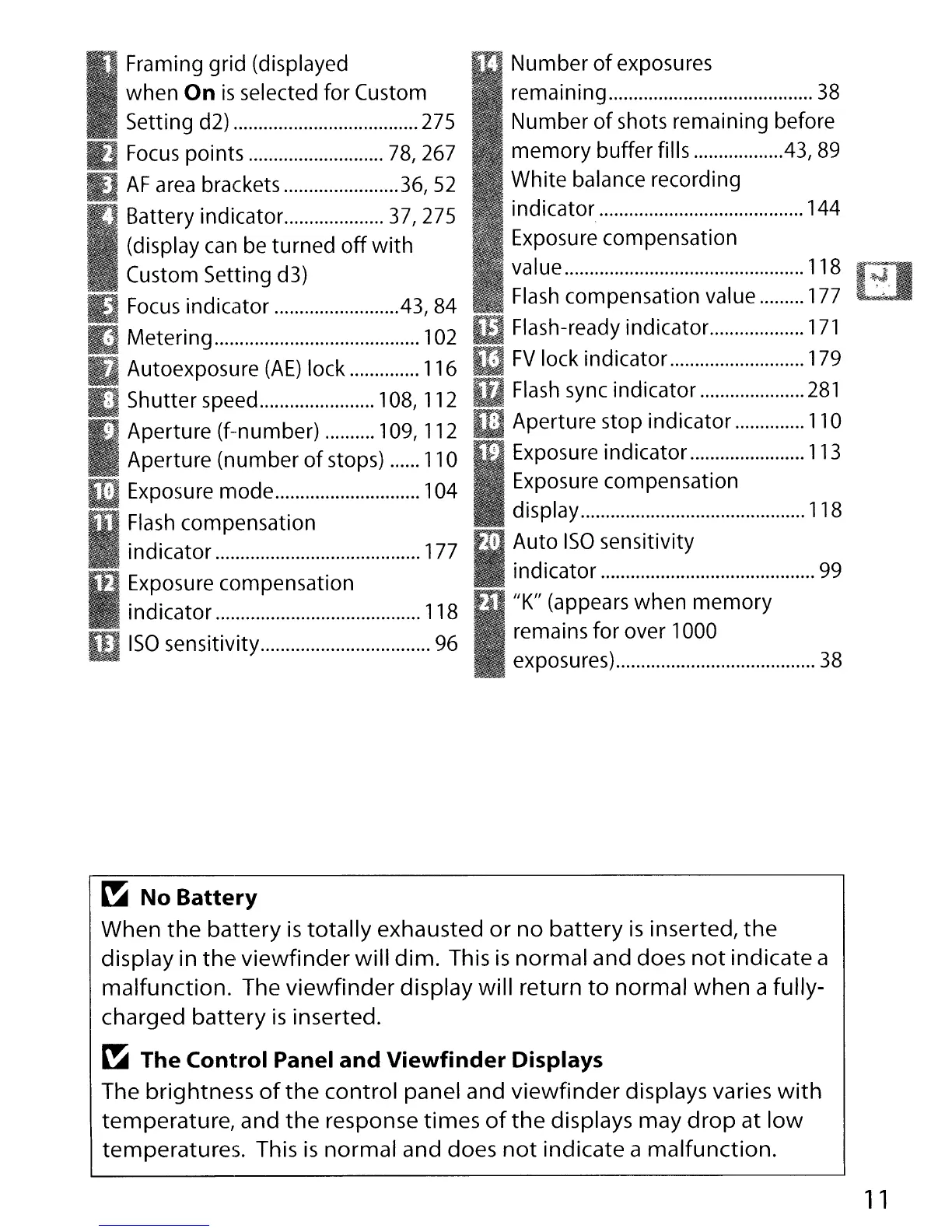

Number of exposures
remaining
38
Number of shots remaining before
memory buffer fills .43,
89
White balance recording
indicator 144
Exposure compensation
value 118
Flash compensation value 177
Flash-ready indicator. 171
FV lock indicator 179
Flash sync indicator 281
Aperture stop indicator 110
Exposure indicator 113
Exposure compensation
display 118
" Auto
ISO sensitivity
indicator 99
"K" (appears when memory
remains for over 1000
exposures)
38
Framing grid (displayed
when On is selected for Custom
Setting d2)
275
Focus points 78, 267
AF area brackets 36, 52
Battery indicator. 37, 275
(display
can be turned off with
Custom Setting d3)
Focus indicator .43, 84
Metering
102
Autoexposure (AE) lock 116
Shutter speed 108, 112
Aperture (f-number) 109,
112
Aperture (number of stops) 110
Exposure mode 104
Flash compensation
indicator 177
II ~:~~~~~; .~~.~:..~.~.s~~~~.~ 118
ISO sensitivity 96
~ No Battery
When the battery is totally exhausted or no battery is inserted, the
display in the viewfinder will dim. This is normal and does not indicate a
malfunction. The viewfinder display will return to normal when a fully-
charged battery is inserted.
~ The Control Panel and Viewfinder Displays
The brightness of the control panel and viewfinder displays varies with
temperature, and the response times of the displays may drop at low
temperatures. This is normal and does not indicate a malfunction.
11

Nikon D300S Specifications

General

Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848 3216 x 2136 2144 x 1424
Digital zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Servo Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	921000 pixels
Magnification	0.94 x
Viewfinder type	Optical
Eye relief	19.5 mm
Image editing	Resizing, Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Cloudy, Direct sunlight, Fine, Flash, Fluorescent, Incandescent, Manual, Shade
Playback modes	Zoom
Camera playback	Highlights, Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Diopter adjustment (D-D)	-2 - 1
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Product color	Black
Battery type	EN-EL3e
Battery life (CIPA standard)	950 shots
Number of batteries supported	1
Flash modes	Red-eye reduction, Slow synchronization
Flash sync-speed	1/250 s
Flash range (wide)	- m
Memory slots	2
Compatible memory cards	CF, CF Type II, SD, SDHC
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
Video resolutions	320 x 216, 640 x 424, 1280 x 720 pixels
Motion JPEG frame rate	24 fps
Video formats supported	AVI
Maximum video resolution	1280 x 720 pixels
Analog signal format system	NTSC, PAL
Audio system	Mono
USB version	2.0

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	840 g
