Nomenclature/Composition
Composition
• Body ×1
• Case ×1
• Strap ×1
• Lithium battery (CR2) ×1

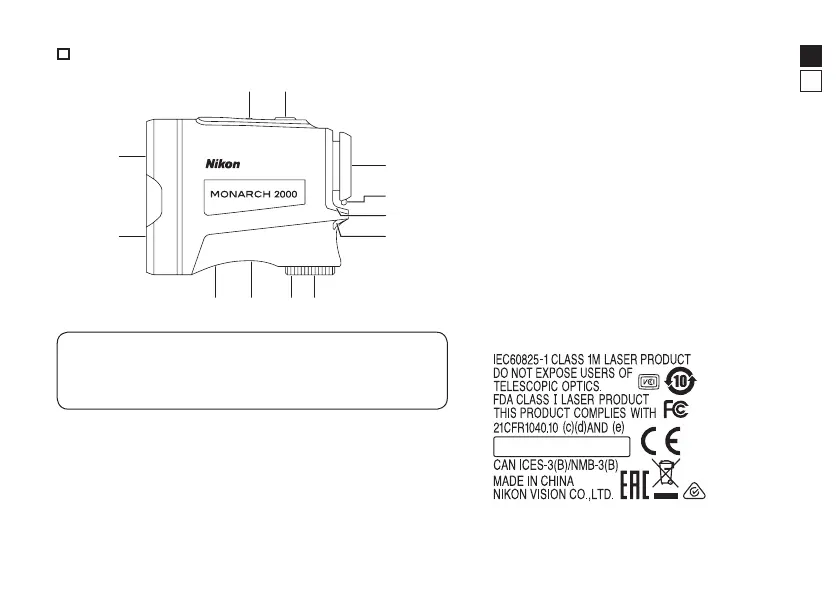

1 MODE button
2 PWR button (POWER ON/Measurement
button)
3 6× monocular eyepiece
4 Eyecup/Diopter adjustment ring
5 Diopter index
6 Strap eyelet
7 Battery-chamber cover
8 Battery-chamber cover “Open” indication
9 Monocular objective lens/Laser emission
aperture
0 Invisible Laser detector aperture
a Product number label
b Indication
* The carabiner-like ring that comes with the case is for the purpose of carrying the Laser Rangefinder only.
Do not hang anything heavy on it, nor tug on it strongly. It cannot be used for climbing.
