INSTALLATION
MOUNTING THE BRACKET
1. Remove the bracket knobs and the bracket from the speaker.
2. Hold the bracket up to the mounting surface. The speaker can be mounted
either horizontally or vertically. Hold the bracket so that the speaker wire fits
through the large, circular wire hole in the bracket. Align the bracket to be
square with the surroundings (use a level for accuracy).
3. Mark the locations of the three oval-shaped screw holes (See Figure 9).
Be sure to use all of the holes.
4. Drill pilot holes into the mounting surface.
5. Pull the speaker wire through the wire hole in the center of the mounting
bracket. Align the bracket so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.
INSTALLATION
15

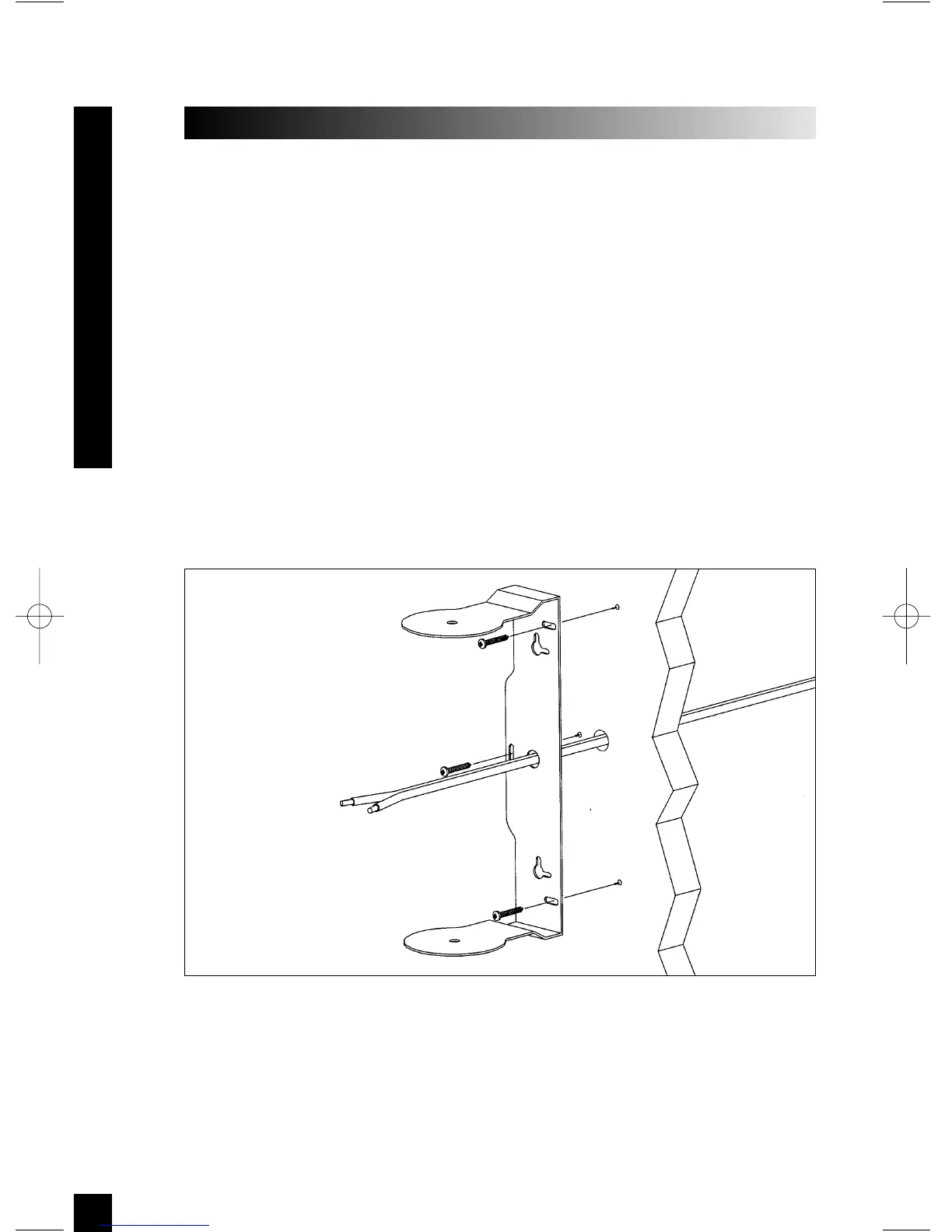

Figure 9
Mounting the
OS6
To Next Page
