Nilfisk-Advance C 100.7 Repair Manual

23
G
Operation.

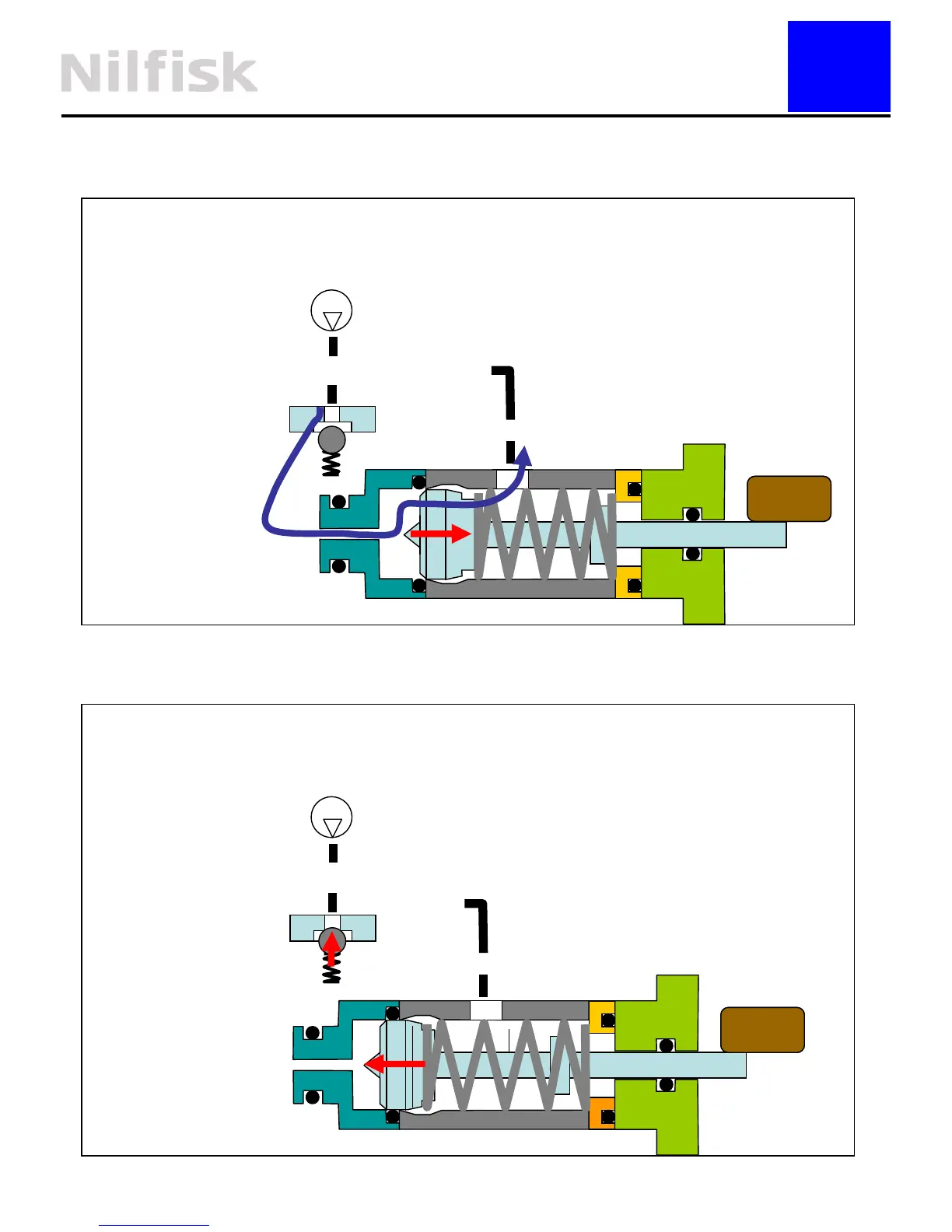

3.3 Pressure build up-opening pressure / close gun
3.4 Motor stop – Standby pressure
Outlet
Inlet
100-125 BAR
3 BAR
100-125 BAR
Gun close. Pressure build up. Opening pressure. Micro switch is activated
Non return valve
Pump
Outlet
Inlet
15 BAR
3 BAR
15 BAR
Gun close. Motor stops. Pressure in hose decreases to standby pressure.
Pump pressure is also standby pressure.
Non return valve
Pump
