Service / Repair.
Dismounting of cabinet rear part on following variants:
C 100.7 - C 105.7 - C 110.7 - C 120.7 - C 120.7 X-TRA
1. Tools: Screwdriver PH2
2. Remove the 2 screws (Long) fixing the handle
3. Remove the 6 screws (Short) from the rear side (fig. 3)
4. Don’t remove the accessory bracket and the wheels
5. The cabinet rear part can be removed and there is now access to the motor pump unit
Fig. 1
Fig. 2

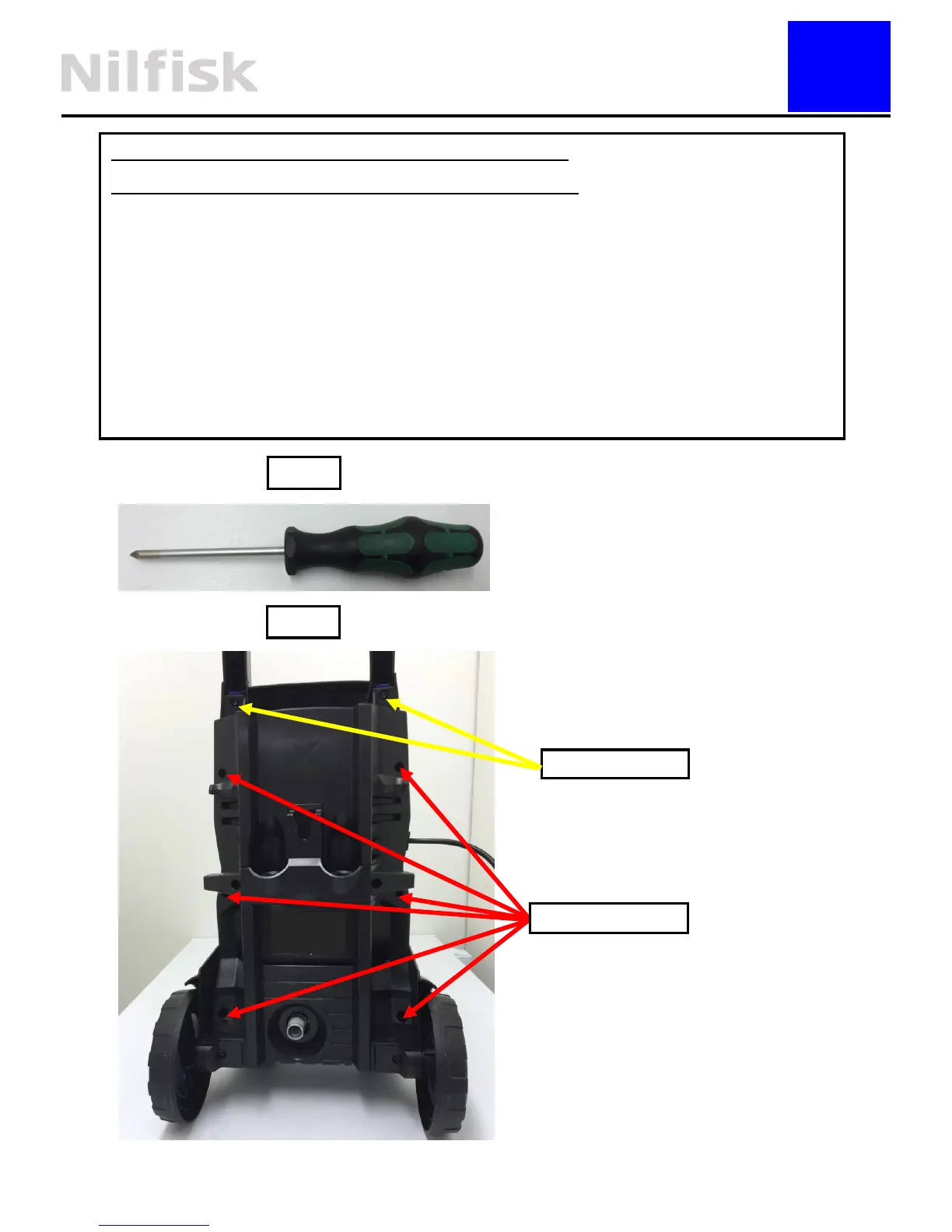

Long screws
Short screws
