Service Manual 26
00 Level 1&2
Copyright 2004 © Nok
ia Corporation
4.

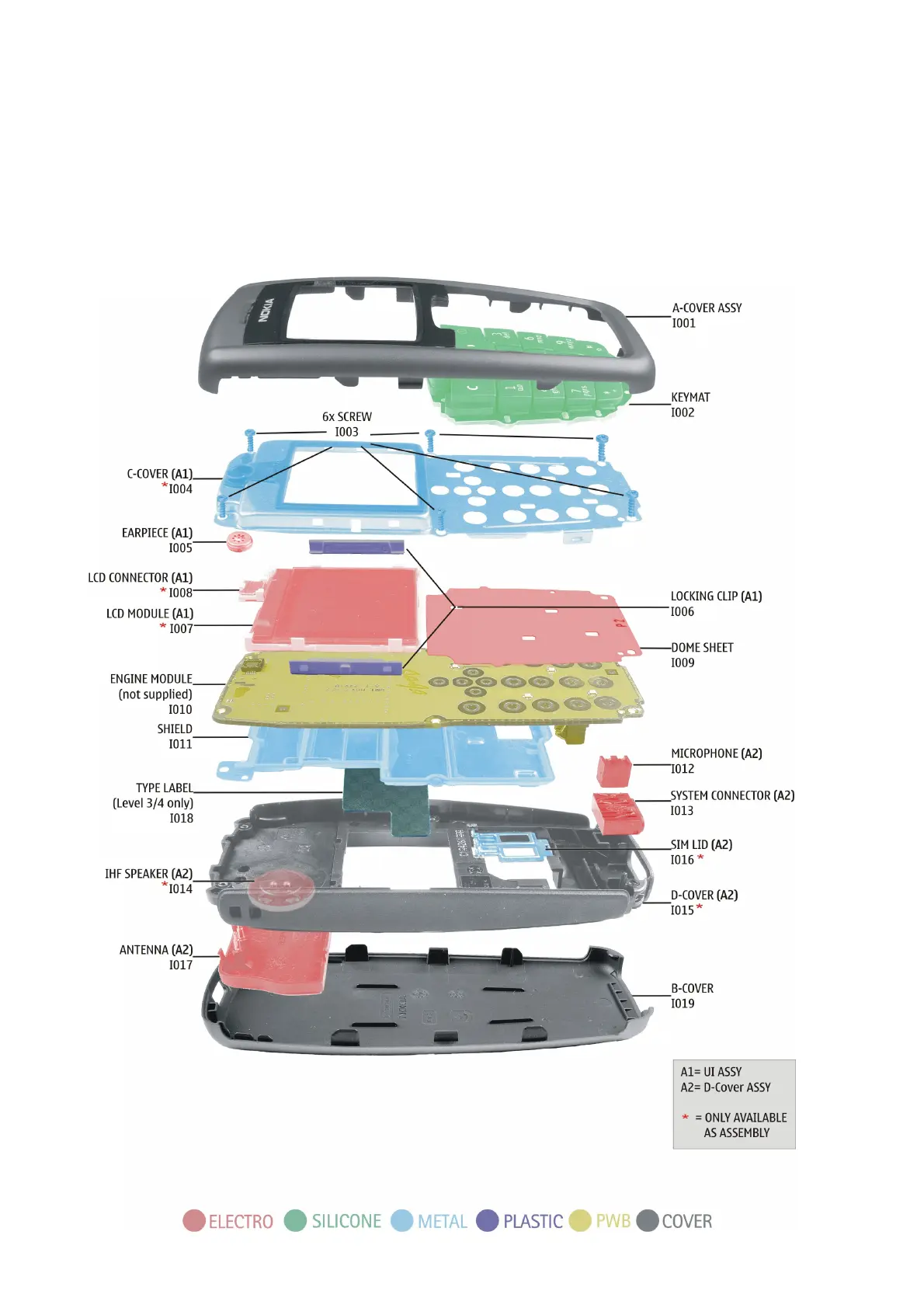

EXPLODED VIEW AND COMPONENT DISPOSAL
Recommendation for the ecologically friendly dispos
al
of components. Colorized components show the
different
categories. See corres
ponding ITEM/CIRCUIT RE
F in the Spare P
arts Service Bulletins on PWS.
5
7
