Nokia 2600 Service Manual

11
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
2600classic RM-340/RM-341
Page
(15) ISSUE 3
Service Manual Level 1&2

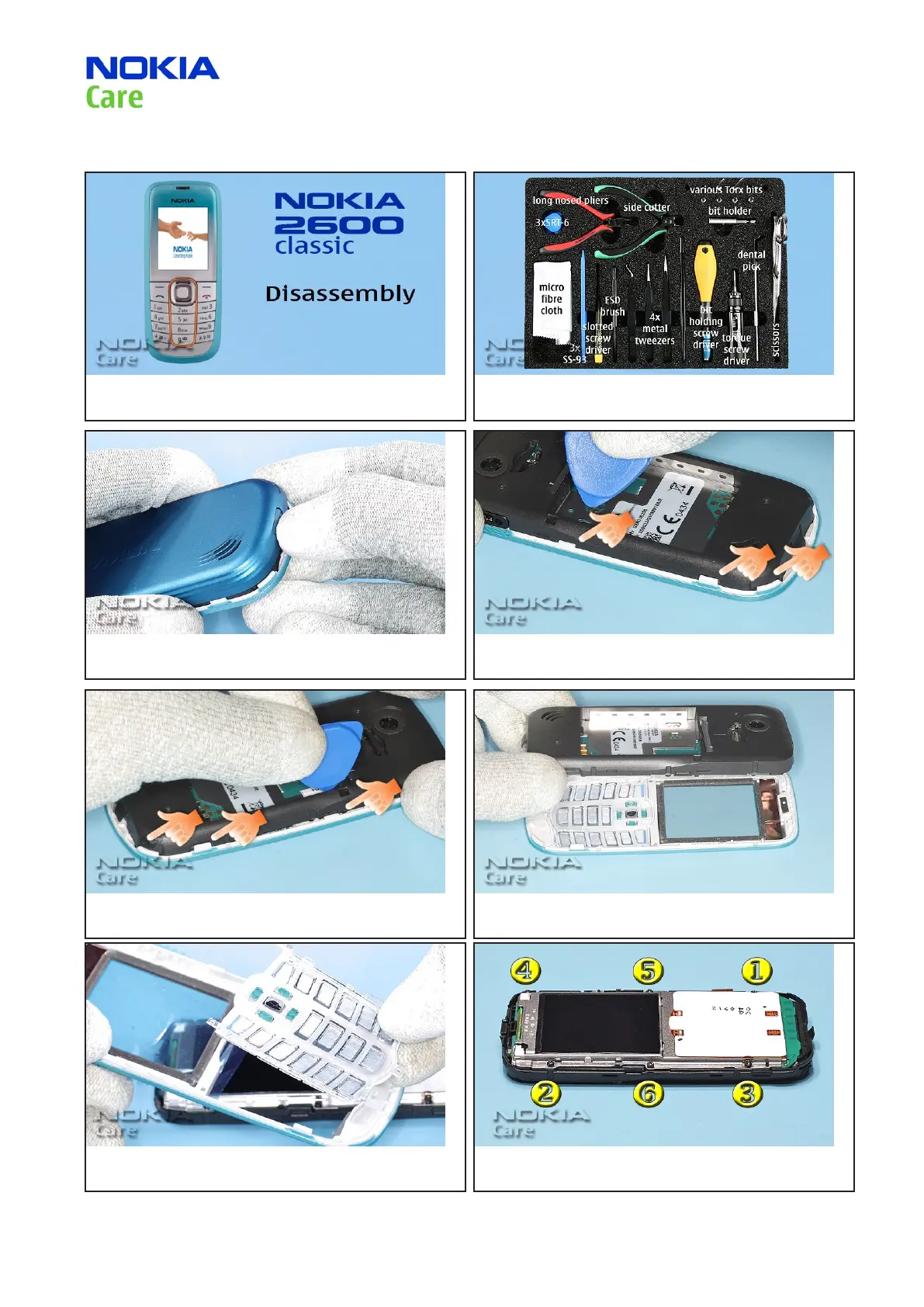

DISASSEMBLY12.
1. Nokia 2600 classic disassembly. 2. You need the Nokia Standard Toolkit version 2 and the SS-88.
3. Unlock and remove the B-COVER. 4. Unlock this 3 plastic clips with the SRT-6, starting at the top.
5. Also release the 3 clips at the opposite side, starting at the
top. Do not bend the A-COVER while releasing the clips.
6. After releasing all clips, the parts can be separated easily.
7. The KEYMAT ASSY can be separated from the cover. 8. Unscrew and remove these 6 Torx Plus size 5 screws in the
shown order.
