Nokia Asha 200 (RM-761)
Nokia Asha 201 (RM-799/RM-
800)
Service Manual Level 1&2
10
Co nf id e nt ial | Co pyrig ht © 2011 Nokia | A ll rights reserved
V e rs io n 1 .0

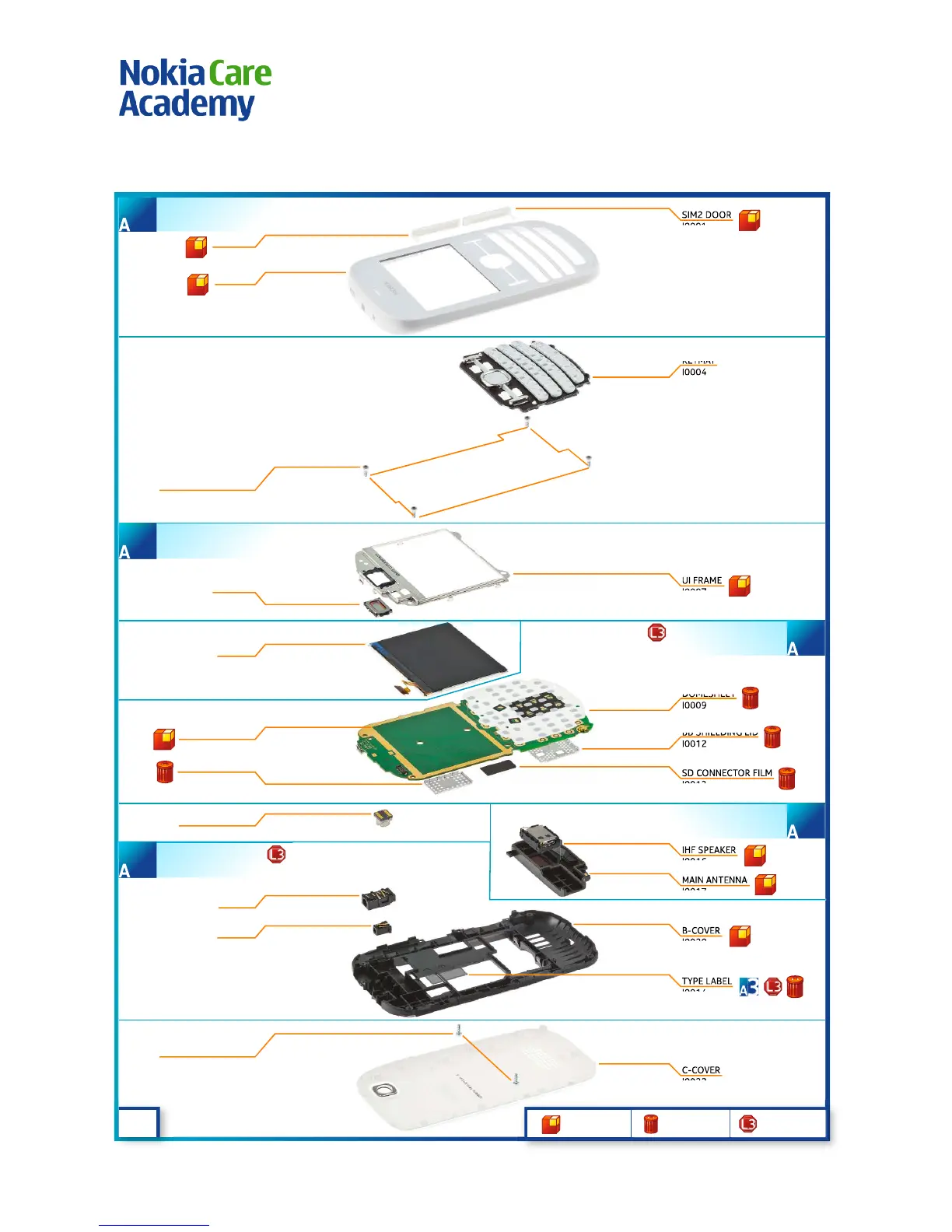

7. EXPLODED VIEW
BT SHIELDING LID
I0011
EARPIECE
I0006
A-COVER
I0003
DISPLAY
I0008
CAMERA MODULE
I0015
AV JACK
I0019
DC JACK
I0018
LIGHT SWAP PWB
I0010
SD DOOR
I0002
KEYMAT
I0004
DOMESHEET
I0009
BB SHIELDING LID
I0012
SIM2 DOOR
I0001
UI FRAME
I0007
SD CONNECTOR FILM
I0013
IHF SPEAKER
I0016
MAIN ANTENNA
I0017
B-COVER
I0020
TYPE LABEL
I0014
C-COVER
I0022
SCREW TORX+ SIZE 6
M1.6 x 4.5
I0021
SCREW TORX+ SIZE 6
M1.6 x 4.5
I0005
3
A
3
A-COVER ASSEMBLY
(I0001 - I0003)
1
UI FRAME ASSEMBLY
(I0006, I0007)
2
B-COVER ASSEMBLY
(I0018 - I0020)
5
LIGHT SWAP PACKAGE
(I0009 - I0014)
3
MAIN ANTENNA MODULE
(I0016, I0017)
4
3
3
L
L
3
L3L3
3
3
3
L
L3
v1.0
L3
3
L3
L3
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
