Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
9
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1

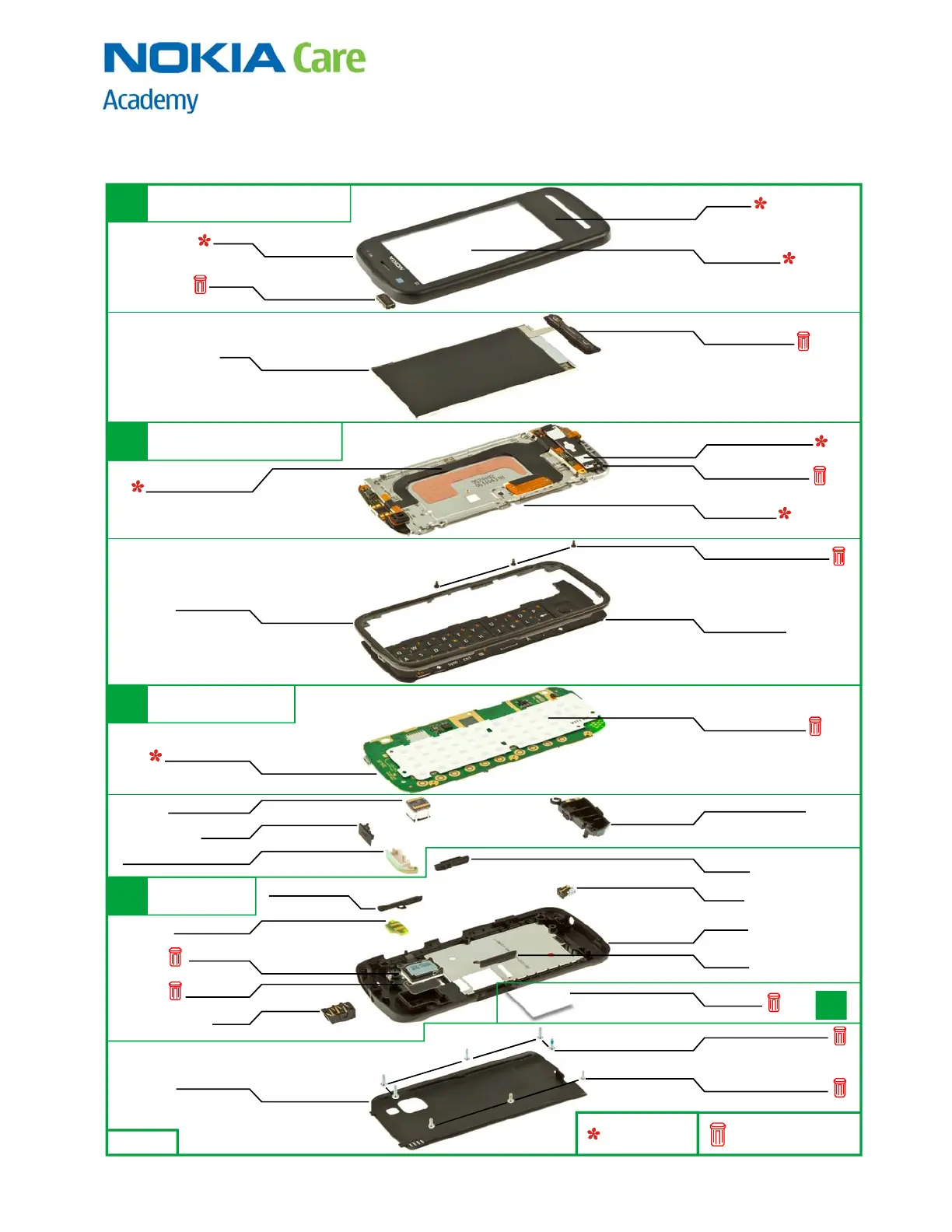

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
SPARE A-COVER/TOUCH PANEL
(I0001 - I0004)
A2
CARE UI FLEX/SLIDE ASSY
(I0008, I0101 - I0102, I0201)
A3
LIGHT SWAP PACKAGE
(I0204 - I0206)
A4
B-COVER ASSY
(I0208 - I0216)
A3
A-COVER
I0001
EARPIECE
I0004
LCD
I0006
QWERTY FRAME
I0202
LIGHT SWAP PWB
I0205
AV JACK
I0211
IHF ADHESIVE
I0213
CAMERA MODULE
I0207
USB DOOR
I0217
GPS / BT / WLAN ANTENNA
I0219
FLASH LED ASSY
I0214
IHF SPEAKER
I0212
BATTERY COVER
I0222
VOLUME BUTTON
I0208
DYNAMIC FPC
AND UI FPC ASSEMBLY
I0101
WINDOW
I0002
FUNCTION DOMESHEET
I0008
TOUCH MODULE
I0003
FUNCTION KEYMAT
I0005
DYNAMIC FPC HOLDER
I0201
SCREW M1.4x2.5 TORX+ 4
I0103
SLIDE MODULE
I0102
QWERTY KEYMAT
I0203
QWERTY DOMESHEET
I0204
DC JACK
I0210
LOCK KEY
I0209
ANTENNA ASSEMBLY
I0218
B-COVER
I0216
SD DOOR
I0215
TYPE LABEL
I0206
SCREW M1.4x3.4 TORX+ 4
I0221
SCREW M1.6x5.0 TORX+ 6
I0220
