Service Manual Level 1 and 2
Nokia 220
RM-969, RM-970, RM-971
Version 1.0

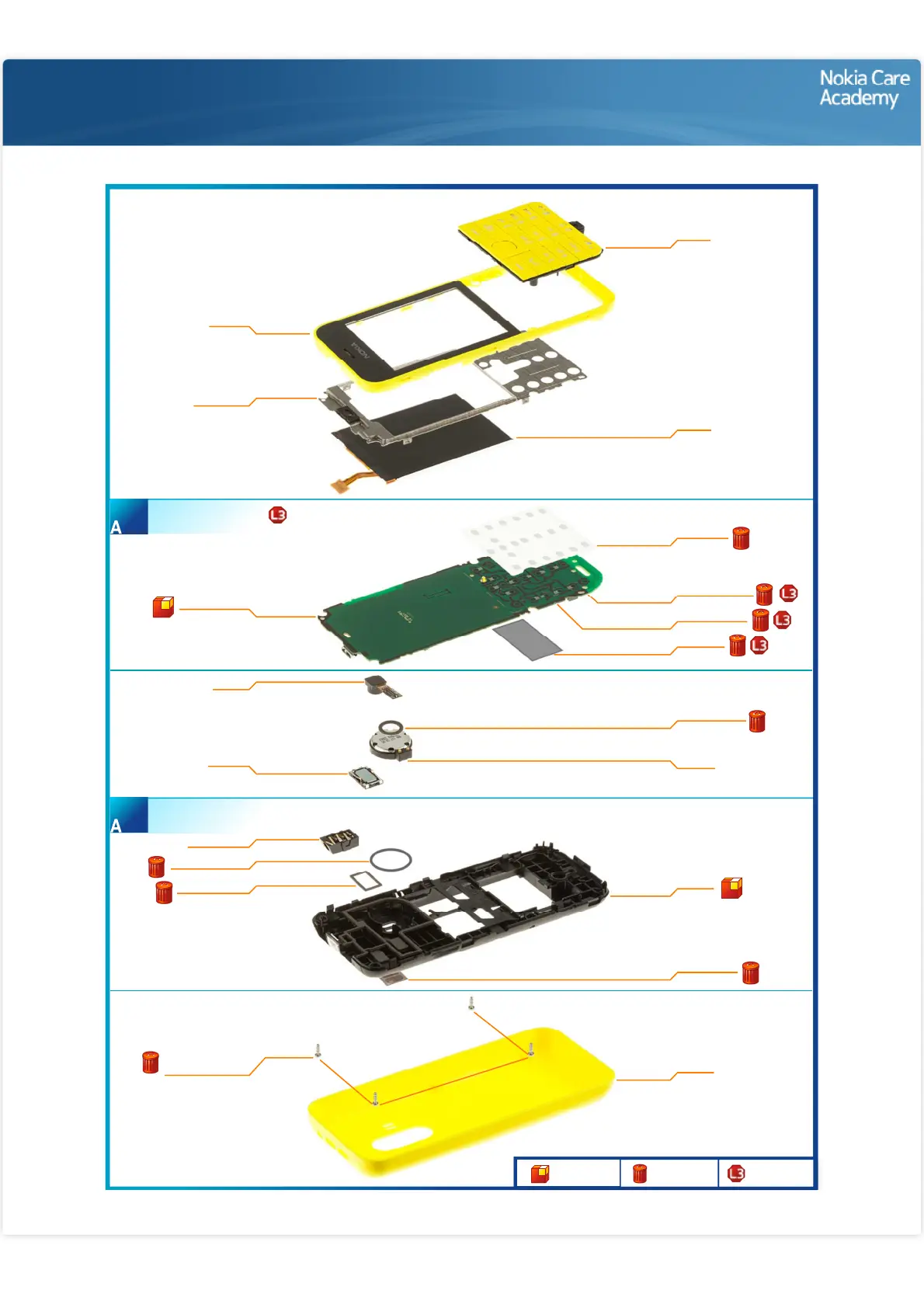

Exploded view
A-COVER
I0001
LIGHT SWAP PWB
I0006
EARPIECE
I0013
UI SHIELDING
I0003
CAMERA
I0010
HEADSET JACK
I0015
SPEAKER ADHESIVE
I0016
EARPIECE GASKET
I0014
KEYMAT
I0002
DISPLAY
I0004
DOMESHEET
I0005
TYPE LABEL
I0009
SPEAKER GASKET
I0012
D-COVER
I0017
SPEAKER MESH
I0018
B-COVER
I0020
SPEAKER
I0011
FEM SHIELDING LID
I0008
BB SHIELDING LID
I0007
SCREW TORX+ SIZE 4
M1.4 x 0.75 - 4.5
I0019
LIGHT SWAP PACKAGE
(I0005 - I0009)
1
D-COVER ASSEMBLY
(I0014 - I0018)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.
