Service Manual Level 1 and 2
Nokia 220
RM-969, RM-9
70, RM-971
Version 1.0
Disassembly steps

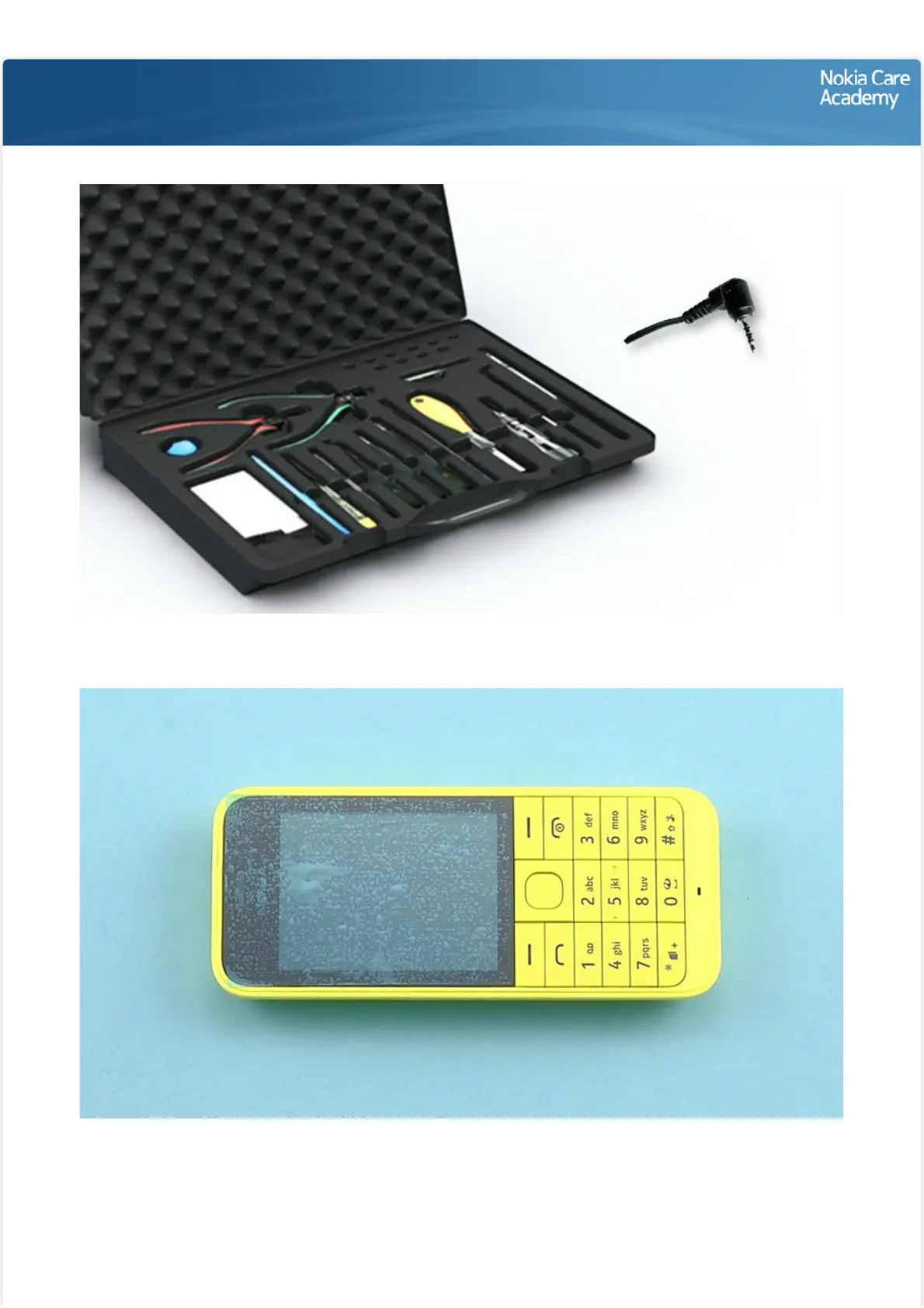

1) For disassembling you need the Nokia St
andard toolkit version 2 and an AV plug.
2) Protect the A-COVER
with protective film.
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.
3
5
Table of Contents
Version History
2
Exploded View
3
Disassembly Steps
4
Assembly Steps
21
Solder Components
23
Service Devices
24
Service Concept
26
Service Software
26
