Nokia X5-01 Service Manual

Nokia X5-01
RM-627, RM-648
Service Manual Level 1&2

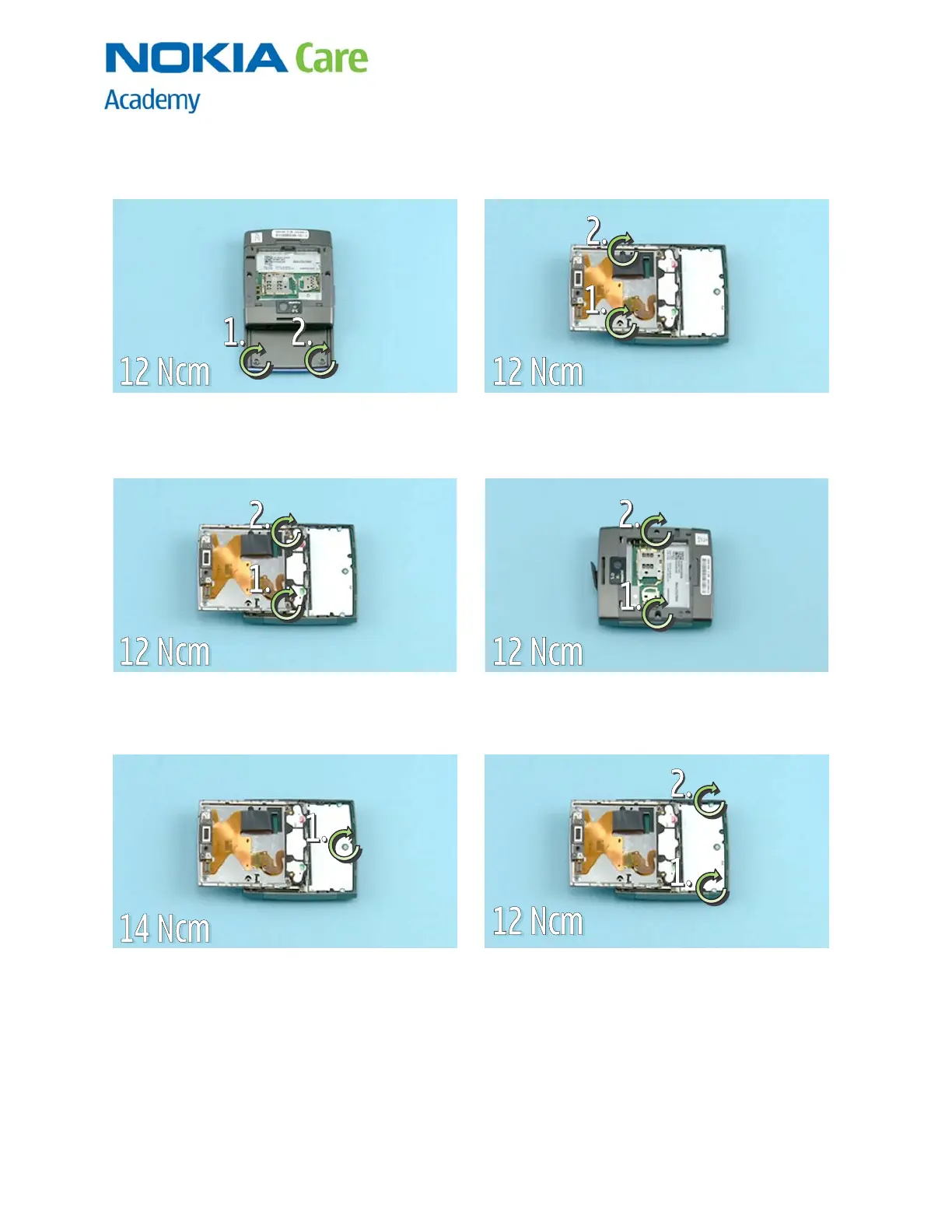

10. ASSEMBLY HINTS
1) Tighten the two TORX+ size 4 screws to the
torque of 12 Ncm in the order shown.
2) Tighten the two TORX+ size 4 screws to the
torque of 12 Ncm in the order shown.
3) Tighten the two TORX+ size 4 screws to the
torque of 12 Ncm in the right order.
4) Tighten the two TORX+ size 4 screws to the
torque of 12 Ncm in the order shown.
5) Tighten the TORX+ size 4 screw to the torque of
14 Ncm in the order shown.
5) Tighten the three TORX+ size 4 screws to the
torque of 12 Ncm in the order shown.

Nokia X5-01 Specifications

General

Panel type	TFT
Display diagonal	2.36 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Ringer type	Polyphonic
Processor frequency	0.6 GHz
Internal memory	200 MB
Maximum memory card size	32 GB
Rear camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
Video capture resolution (max)	640 x 480 pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, AAC+, AU, eAAC+, M4A, MP3, MP4, WAV, WMA
Image formats supported	BMP, PNG
Talk time (2G)	5 h
Standby time (2G)	408 h
2G standards	EDGE, GPRS
Data network	3G, wcdma
Bluetooth version	2.1+EDR
SIM card capability	Single SIM
Form factor	Slider
Product color	-
Keyboard layout	QWERTY

Weight and Dimensions

Depth	16.85 mm
Width	66.44 mm
Height	74.3 mm
Weight	129 g
