8.35 Configuring parental control

Click Security→Parent Control from the left pane in the 10G PON Home Gateway page. The

Parental Control page displays.

You can click Delete to delete the group.

Click on the plus sign (+) to create a group. The create new group page displays

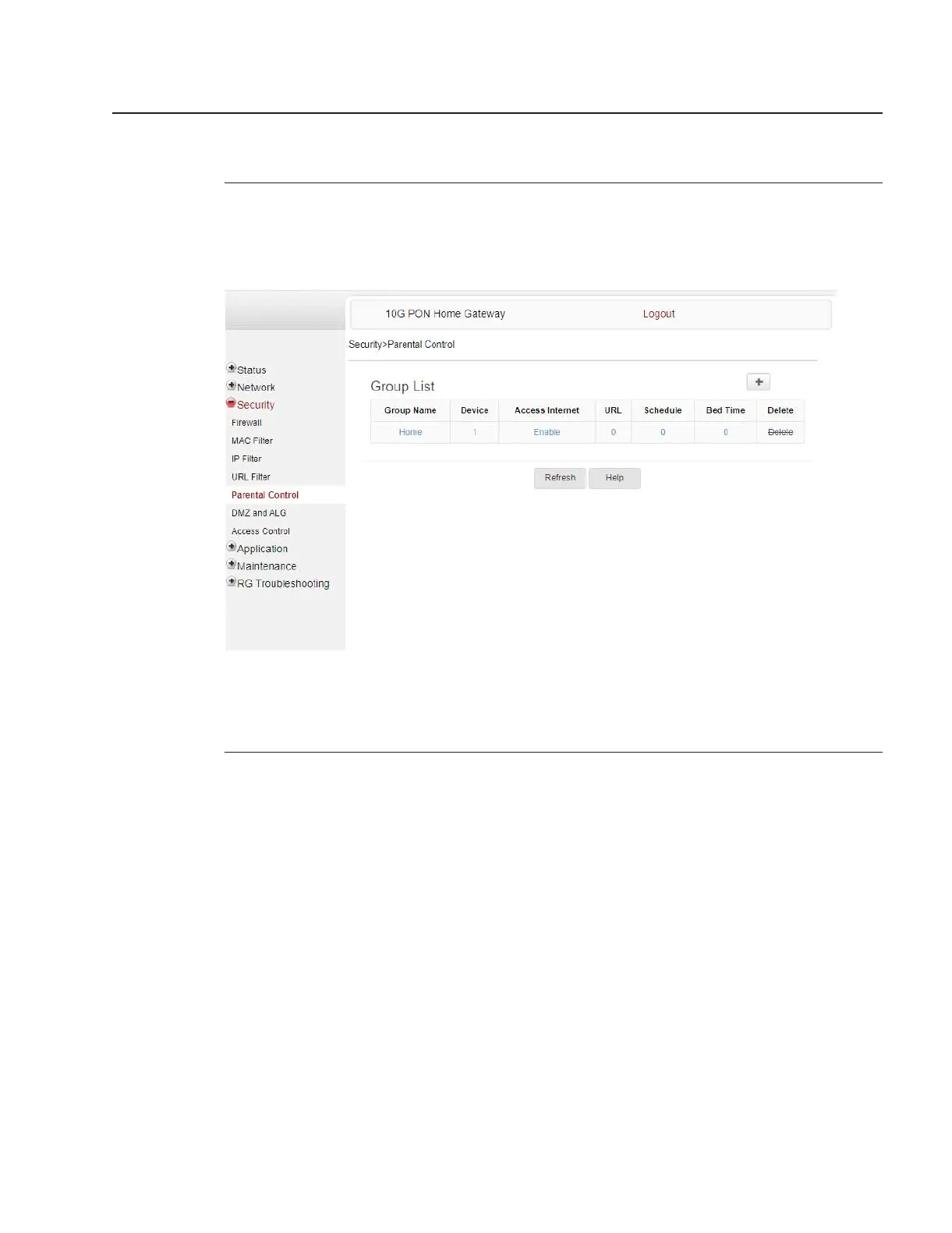

Figure 8-34 Parental Control page

Configure a XS-2426G-A indoor ONT

Security configuration

Configuring parental control

Nokia ONT

Draft Draft

December 2020

Issue 1 131

Nokia – Proprietary and Confidential

Use pursuant to applicable agreements

3FE-49348-AAAA-TCZZA
