NS FUZZ User Manual

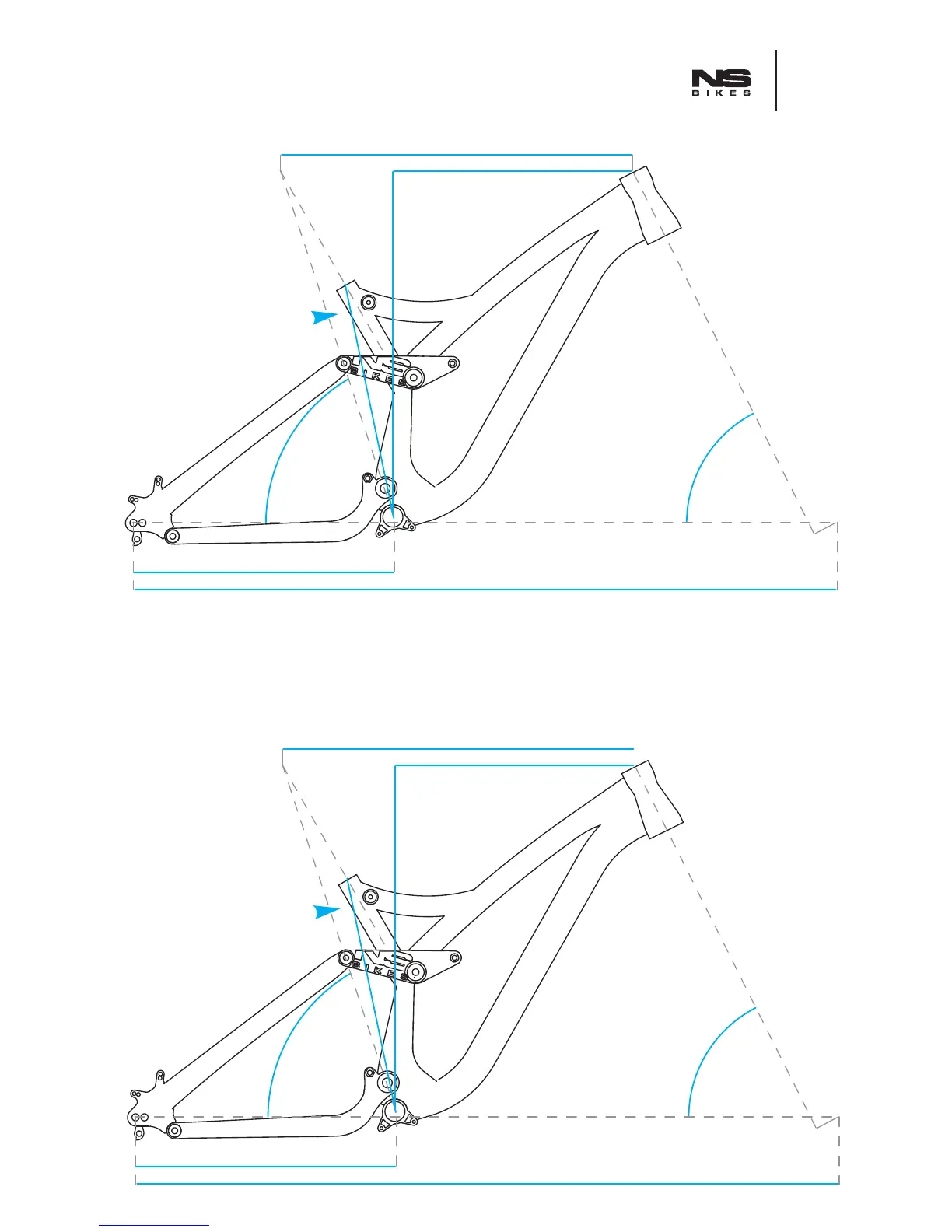

GEOMETRY METRIC
GEOMETRY IMPERIAL
7
REACH
S: 405mm/M: 430mm/L: 450mm
SEAT TUBE
S: 399mm/M: 399mm/L: 420mm
CHAIN STAYS
CHAIN STAYS
420-438mm
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1173mm-1188mm/M: 1198mm-1213mm/L: 1218mm-1233mm
BB HEIGHT
+10.0mm
STACK 581mm
EFFECTIVE TOP TUBE
S: 595mm/M: 620mm/L: 640mm
SEAT TUBE
REACH
S: 15.9”/M: 16.9”/L: 17.7”
SEAT TUBE
S: 15.7"/M: 15.7"/L: 16.5"
16.5"-17.2"
SEAT TUBE
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.2”-46.8”/M: 47.2”-47.8”/L: 47.9”-48.5”
BB HEIGHT
0.4”
STACK 22.9”
EFFECTIVE TOP TUBE
S: 23.4"/M: 24.4"/L:25.2"
REACH
S: 405mm/M: 430mm/L: 450mm
SEAT TUBE
S: 399mm/M: 399mm/L: 420mm
CHAIN STAYS
CHAIN STAYS
420-438mm
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1173mm-1188mm/M: 1198mm-1213mm/L: 1218mm-1233mm
BB HEIGHT
+10.0mm
STACK 581mm
EFFECTIVE TOP TUBE
S: 595mm/M: 620mm/L: 640mm
SEAT TUBE
REACH
S: 15.9”/M: 16.9”/L: 17.7”
SEAT TUBE
S: 15.7"/M: 15.7"/L: 16.5"
16.5"-17.2"
SEAT TUBE
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.2”-46.8”/M: 47.2”-47.8”/L: 47.9”-48.5”
BB HEIGHT
0.4”
STACK 22.9”
EFFECTIVE TOP TUBE
S: 23.4"/M: 24.4"/L:25.2"
FUZZ

NS FUZZ Specifications

General

Brand	NS
Model	FUZZ
Category	Bicycle
Language	English
