15. Fade Rate This slider sets the initial fade in and out of patterns and other functions.
16. Master Level This control sets the maximum level to stage. It does not affect the Channel level Leds.
Rear Panel
1. Micro-Plex Outputs These 2 outputs provide NSI’s microphone dimmer connection via a 3 pin XLR type connector.
Either connector may be used (1-Male, 1-Female).
2. DMX-512 This optional output is used to provide dimmer control information to dimmers using this
protocol. Its 5 pin Female XLR connector conforms to the USITT standard.
3. AUX DC Power This input jack allows a standard wall transformer rated at 15v DC (at least 200 MA) to
provide power to the MC 1616 console.
4. Audio Input This jack accepts a line level audio input signal to synchronize chase and provide audio
intensity effects.
5. Configuration Dip
Switch
These switches allow customization of some console functions.
6. MIDI In/Out/Thru Midi ports for connection to a sequencer or MIDI storage device.
3
2
1
4 5 6

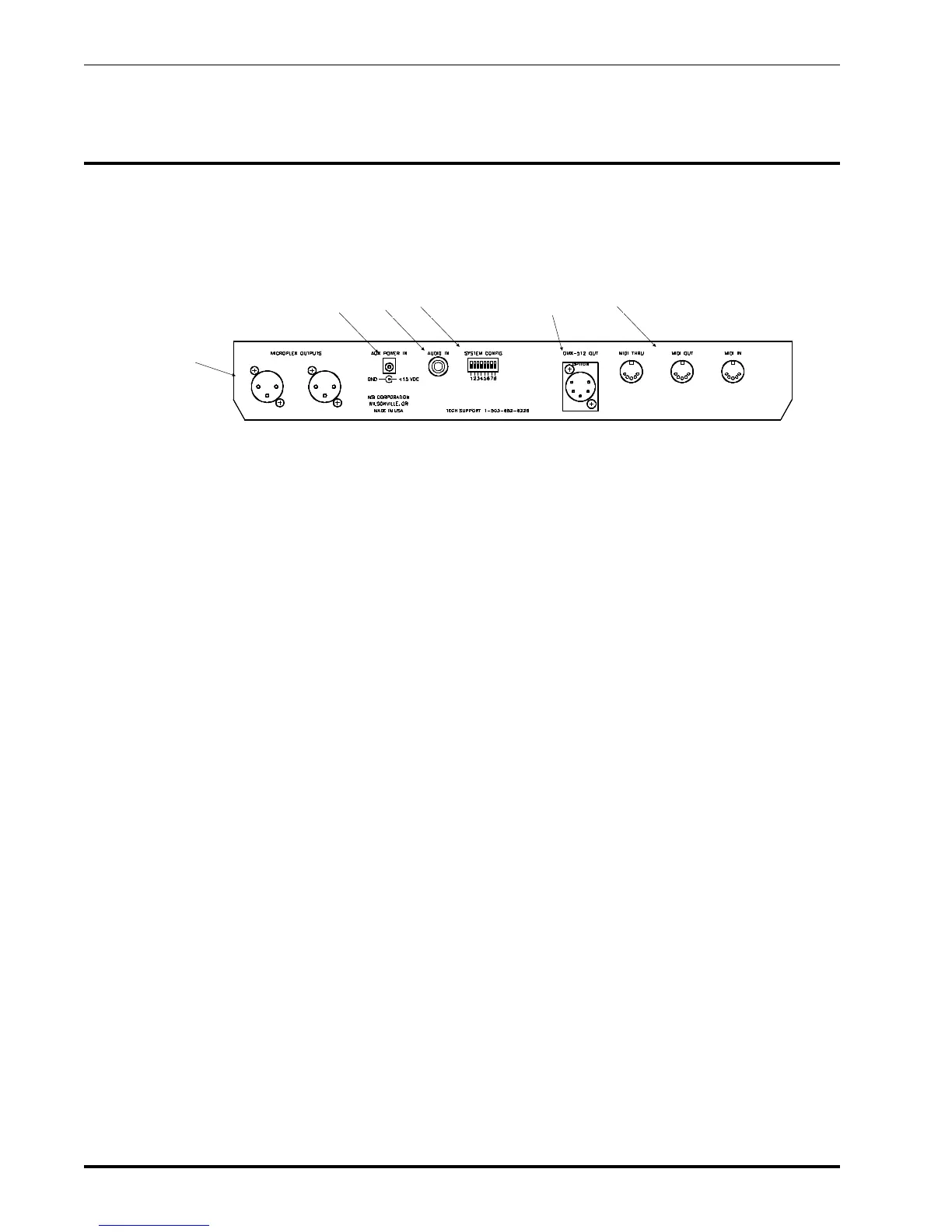

Fig. 3 Rear Panel MC 1616
Rear Panel Software Revision 1.08 and above
4 Features and Specifications may change without notice NSI CORPORATION
