Numark IDJ LIVE II Service Manual

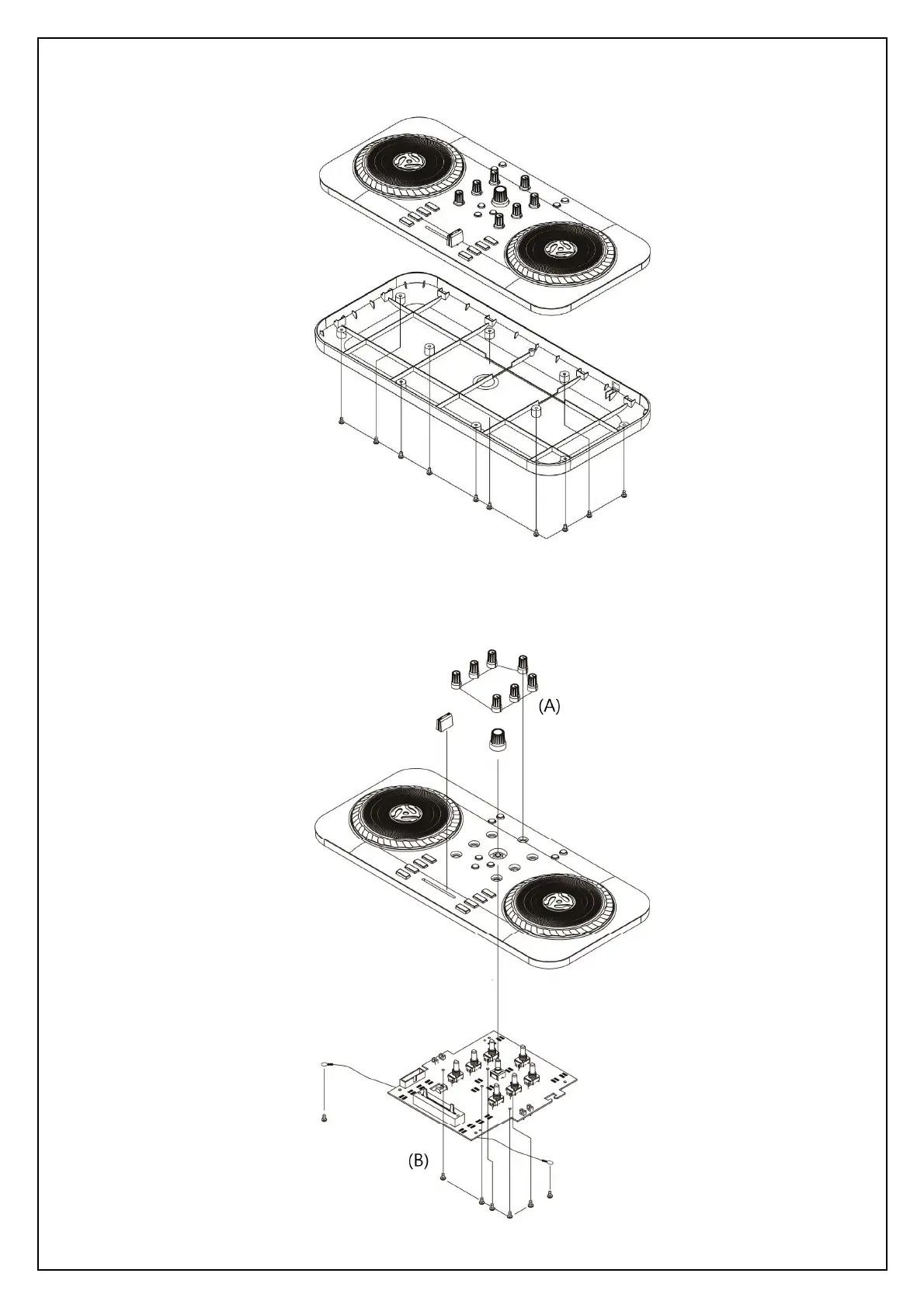

DISASSEMBLY PROCEDURES
1. REMOVAL OF BOTTOM CHASSIS. (Fig. 1)
(A).TAKE OUT THE 10 PCS SCREW FROM THE BOTTOM CHASSIS.
(Fig. 1)
2. REMOVAL OF MAIN PCB ASS’Y. (Fig. 2)
(A).TAKE OUT THE 8 PCS KNOB FROM THE CABINET.
(B).TAKE OUT THE 7 PCS SCREW FROM THE MAIN PCB ASS’Y.
(Fig. 2)
