Numark iDJ3 Service Manual

C

OF

SHEET:

SIZE:

REV:

DATED:

DATED:

DRAWN:

RELEASED:

SCALE:

FILENAME:

PART NUMBER:

TITLE:

COMPANY:

A

B

D

C

A

B

C

D

6

5

4

3

2

1

DATE:

LTR

ECO NO:

APPROVED:

REVISION RECORD

ASSY NUMBER:


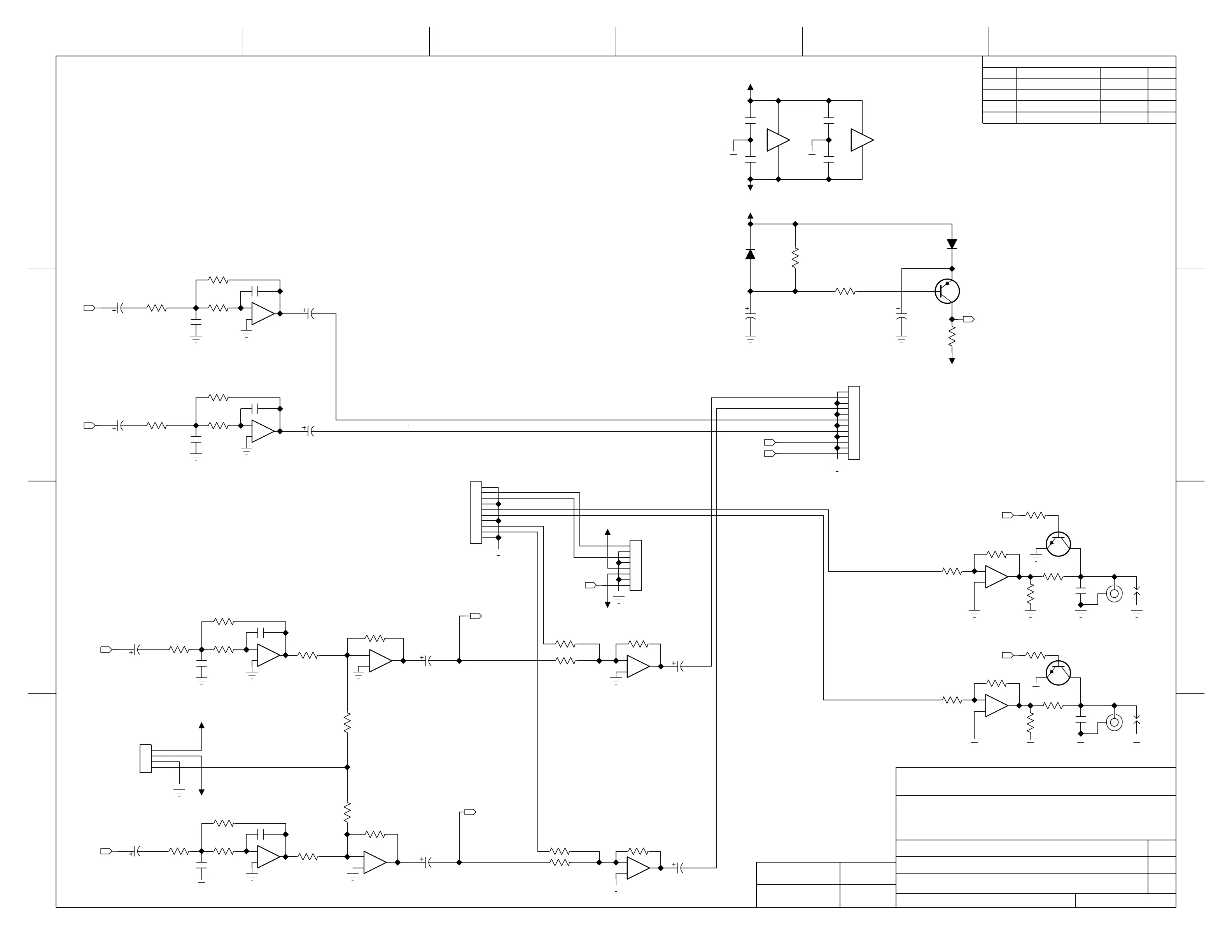

AUDIO

NKC6IOA13A.sch

9-79-0571-A-0

9-40-0571-A

<undefined>

MASTER OUTPUTS

AUDIO MUTING CIRCUIT

DECOUPLING

MS/CN/RE/DM

2

5

From Microphone

Board

SHIELD

SHIELDED SIGNAL

SHIELDED SIGNAL

SHIELD

SHIELDED SIGNAL

SHIELDED SIGNAL

NUMARK

NKC6 IO PCB

SHIELD

SHIELDED SIGNAL

SHIELDED SIGNAL

To Headphone

From Main PCB

Board

Copyright (c) 2010 Numark

To Main PCB

R11

3.24k 1%

C93

100pF

R16

10.7k 1%

C10

3300pF

R12

5.36k 1%

R104

100 ohm 1%

C92

100pF

R103

100 ohm 1%

3

+

2

-

1

U5-A

NJM2112

C17

10uF,16V

C21

22uF,16V

C34

22uF,16V

C32

10uF,16V

R38

3.24k 1%

C18

330pF

Q9

2SD2114K

R105

1.00k 1%

Q8

2SD2114K

R102

1.00k 1%

R33

10k 1%

R19

10k 1%

R97

47.5k 1%

R93

47.5k 1%

4

3

J11-B

RJ-1031-010

2

1

J11-A

RJ-1031-010

C33

330pF

R39

5.36k 1%

C37

3300pF

R27

10.7k 1%

C66

10uF,16V

C54

10uF,16V

1

2

3

Q7

MBT4403

D7

MMBD4148

C87

10uF,16V

R90

475k 1%

D6

MMBD4148

R99

10k 1%

C25

0.1uF

R96

0 ohm

C86

10uF,16V

R67

3.24k 1%

R52

10.7k 1%

C51

3300pF

R49

5.36k 1%

C52

330pF

R51

3.24k 1%

R68

10.7k 1%

C71

3300pF

R76

5.36k 1%

C72

330pF

-v

+v

4

11

U5-E

NJM2112

12

+

13

-

14

U5-D

NJM2112

5

+

6

-

7

U5-B

NJM2112

10

+

9

-

8

U5-C

NJM2112

R18

20.0k 1%

R17

20.0k 1%

R32

20.0k 1%

R31

20.0k 1%

1

2

3

4

J2

S4B-PH-K-S(LF)(SN)

3

+

2

-

1

U13-A

NJM2112

5

+

6

-

7

U13-B

NJM2112

R82

10k 1%

R84

10k 1%

R64

10k 1%

R62

10k 1%

R83

10k 1%

R63

10k 1%

10

+

9

-

8

U12-C

NJM2112

12

+

13

-

14

U12-D

NJM2112

C47

22uF,16V

C80

22uF,16V

C76

22uF,16V

C44

22uF,16V

C68

0.1uF

-v

+v

4

11

U13-E

NJM2112

1

2

3

4

5

6

7

8

9

10

J7

1

2

3

4

5

6

7

8

J3

R81

10k 1%

R61

10k 1%

R80

10k 1%

R60

10k 1%

1

2

S2

1

2

S1

10

+

9

-

8

U13-C

NJM2112

12

+

13

-

14

U13-D

NJM2112

C26

0.1uF

C67

0.1uF

1

2

3

4

5

6

7

8

9

10

11

12

J10

MUTE

MUTE

CH1_L

CH1_R

CH2_L

CH2_R

-4VA

MUTE

+4VA

-4VA

+4VA

+4VA

-4VA

MASTER_L_SEND

IPOD_REC_L

IPOD_REC_R

-4VA

+4VA

PHONE_L

PHONE_R

MUTE

IPOD_PLAY_L

IPOD_PLAY_R

IPOD_PLAY_R

IPOD_PLAY_L

IPOD_R

IPOD_L

MASTER_R_RETURN

MASTER_L_RETURN

PHONE_L

PHONE_R

MASTER_R_SEND

CUE_L

CUE_R

