Page 4

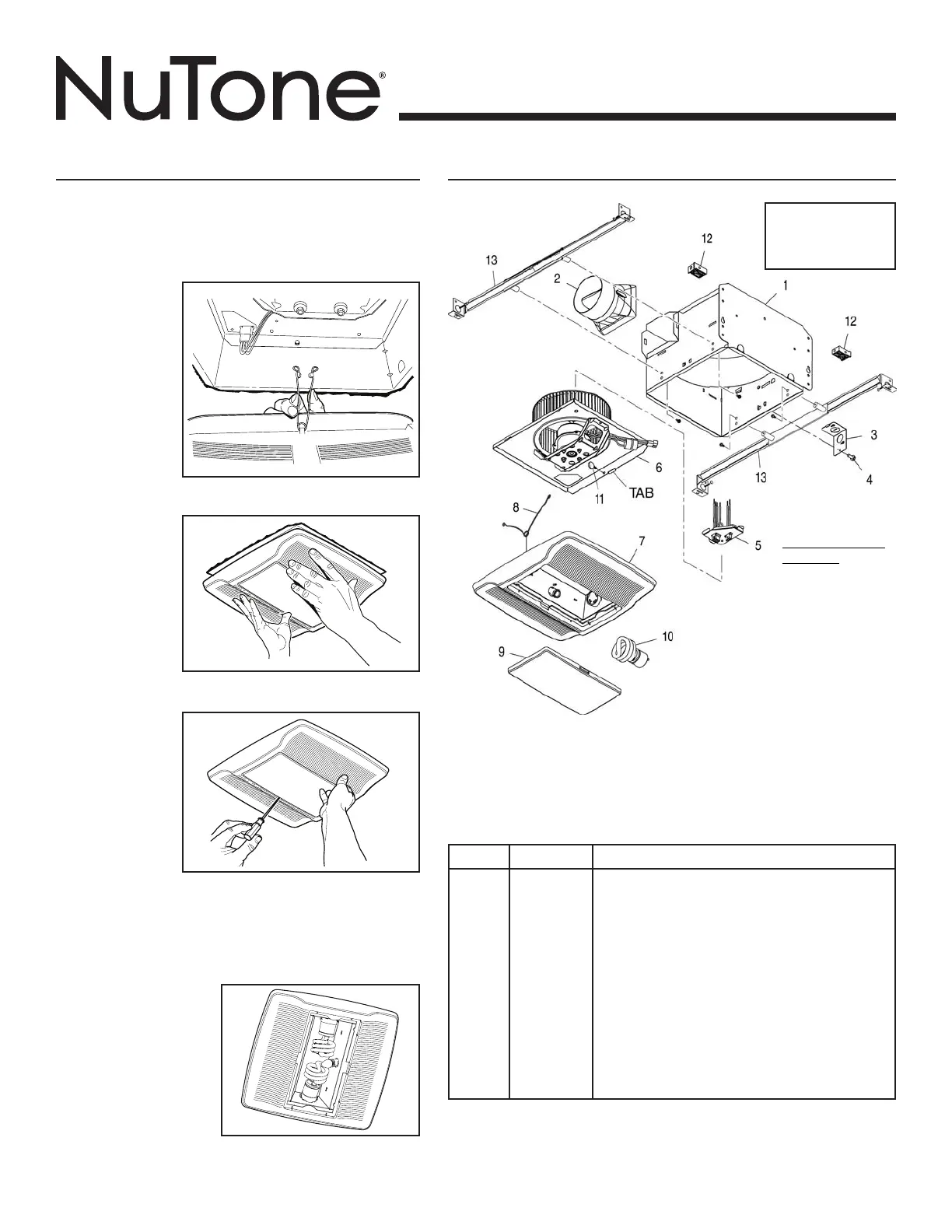

MODELS QTREN080FLT • QTREN110FLT
SERVICE PARTS
99044457A
Key No. Part No. Description
1 97016466 Housing
2 97016449 Duct Connector-4”
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375
5 97018011 Wire Panel/Harness Assembly
6 97017855 Blower Assembly (QTREN080FLT)
97017856 Blower Assembly (QTREN110FLT)
7 97018274 Grille Assembly (includes key nos. 8, 9 & 10)
8 99140199 Grille Spring (2 req’d)
9 99111401 Lens
10 99271381 Bulb, GU24, 18W Fluorescent (2 req’d)
11 99420665 Thumbscrew, #8-18 x .375
12 97018014 Spacer (2 supplied)
13 QTNHB1 Hanger Bar Kit
Order service parts by “Part No.” - not by “Key No.”
8. Remove
light
lens.
Carefully
insert
a small
flat-blade
screwdriver
between
grille and
lens. Pry lens
out.
7. Push
grille
against
ceiling.
9. Install light
bulbs.
Fluorescent bulbs
supplied.
Purchase a 4W
incandescent night
light bulb.
Insert bulbs into
their sockets.
Replace lens.
INSTALL GRILLE
5. Finish ceiling.
Install ceiling material. Cut out around housing.
6. Attach
grille to
housing.
Squeeze
grille springs
and insert
them into
tabs on
each side of
housing.
SERVICE NOTE
To remove Blower
Assembly: Unplug
motor. Remove
thumbscrew (11)
from motor plate
flange. Find the
single TAB on
the motor plate
(located next to the
receptacle). Push up
near motor plate tab
while pushing out
on side of housing.
Or insert a straight-
blade screwdriver
into slot in housing
(next to tab) and
twist screwdriver.
Replacement parts can
be ordered on our web-
site. Please visit us at
www.nutone.com
