NuTone VX3000C User Manual

page 15

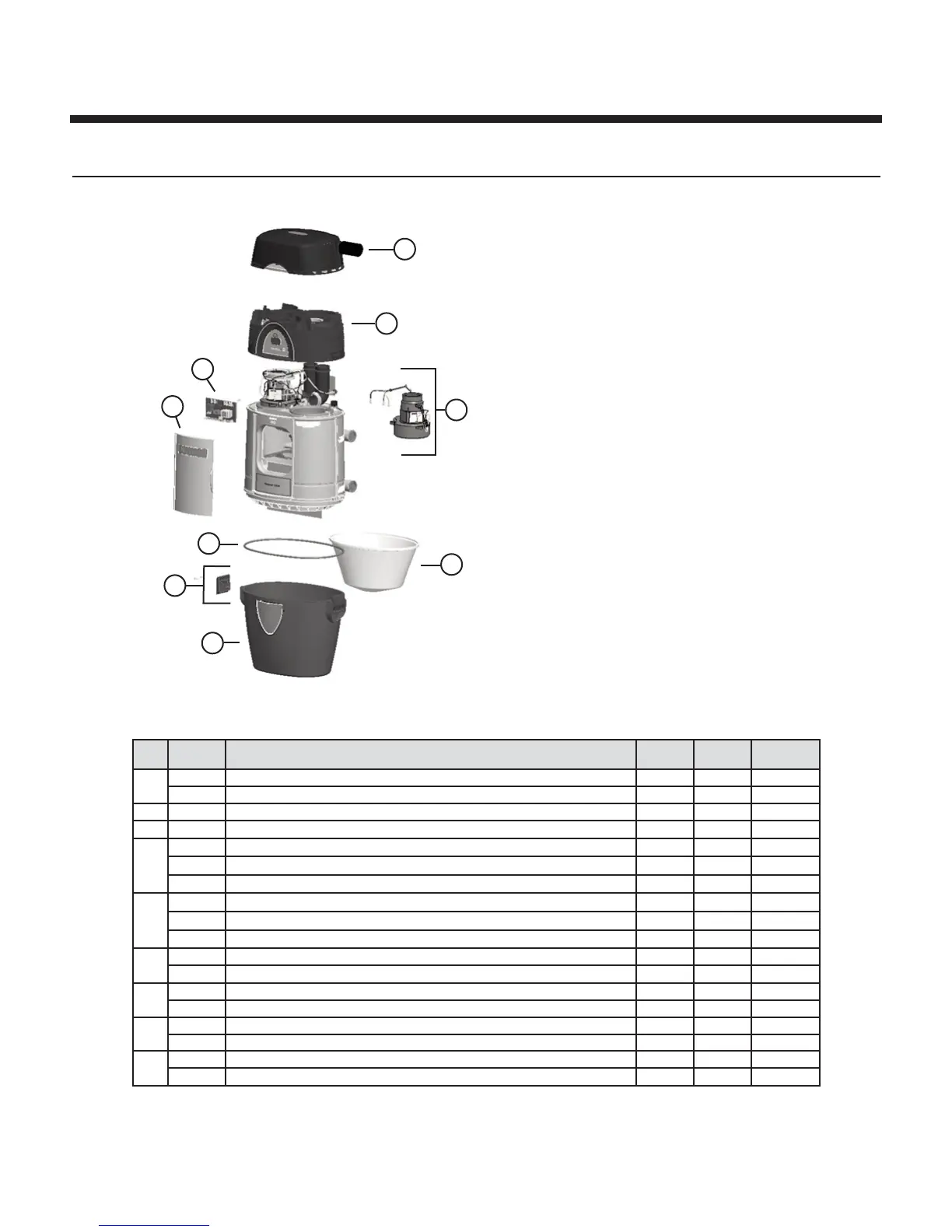

1
2
3
4
6
7
5
8
9
AL0001
KEY
NO.
PART NO. DESCRIPTION VX475CC VX550CC VX1040CC
1
10941189
Pail assembly VS
X
10941191
Pail assembly TS
X X
2 10941192
Door assembly
X X X
3 10941199
Latch kit (with screws)
X X X
4
10941232
VS PCB’s assembly (including mother, daughter and screws)*
X
10941233
TS1 PCB’s assembly (including mother, daughter and screws)*
X
10941195
TS2 Motherboard/Daughterboard S/A incl. screws*
X
5
10941235
VS motor with motor harness, fuse with fuse harness, circuit breaker*
X
10941236
TS1 motor with motor harness, fuse with fuse harness, circuit breaker*
X
10941231
TS2 motor with motor harness, fuse harness, circuit breaker*
X
6
30100528
Pail gasket TS
X X
30100527
Pail gasket VS
X
7
30010272
Cyclonic filter VS
X
30010270
Cyclonic filter TS
X X
8
10941217
Motor Chamber VS with foam and logo*
X
10941218
Motor Chamber TS with foam and logo*
X X
9
10941211
Top cap VS with logo
X
10941213
Top cap TS with logo
X X
NOTE: Order service parts by “Part No.” — not by “Key No.”
*This part MUST be removed and installed by a qualified technician.
SERVICE PARTS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working
condition, you must use Broan-NuTone genuine
replacement parts only. Broan-NuTone genuine
replacement parts are specially designed for each unit
and are manufactured to comply with all the applicable
certification standards and maintain a high standard of
safety. Any third party replacement part used may cause
serious d
amage and drastically reduce the performance
level of your unit, which will result in premature failing.
Broan-NuTone also recommends to contact a
Broan-NuTone certified service depot for all replacement
parts and repairs.
