Nvidia GeForce4 MX Series User Manual

16
4.6 Video Mirror Function
4.6.1. Video Mirror mode
Video Mirror is a nView feature that allows a video or DVD application to mirror
its playback in full-screen mode on any one of the connected display devices.
For Video Mirror functionalit
y, set your nView panel to one of these modes:
•Windows XP/2000 Clone or Windows XP DualView.
•Windows 9X/ME Clone or Extended Desktop.
1. Open the DVD or video application that you want to view.

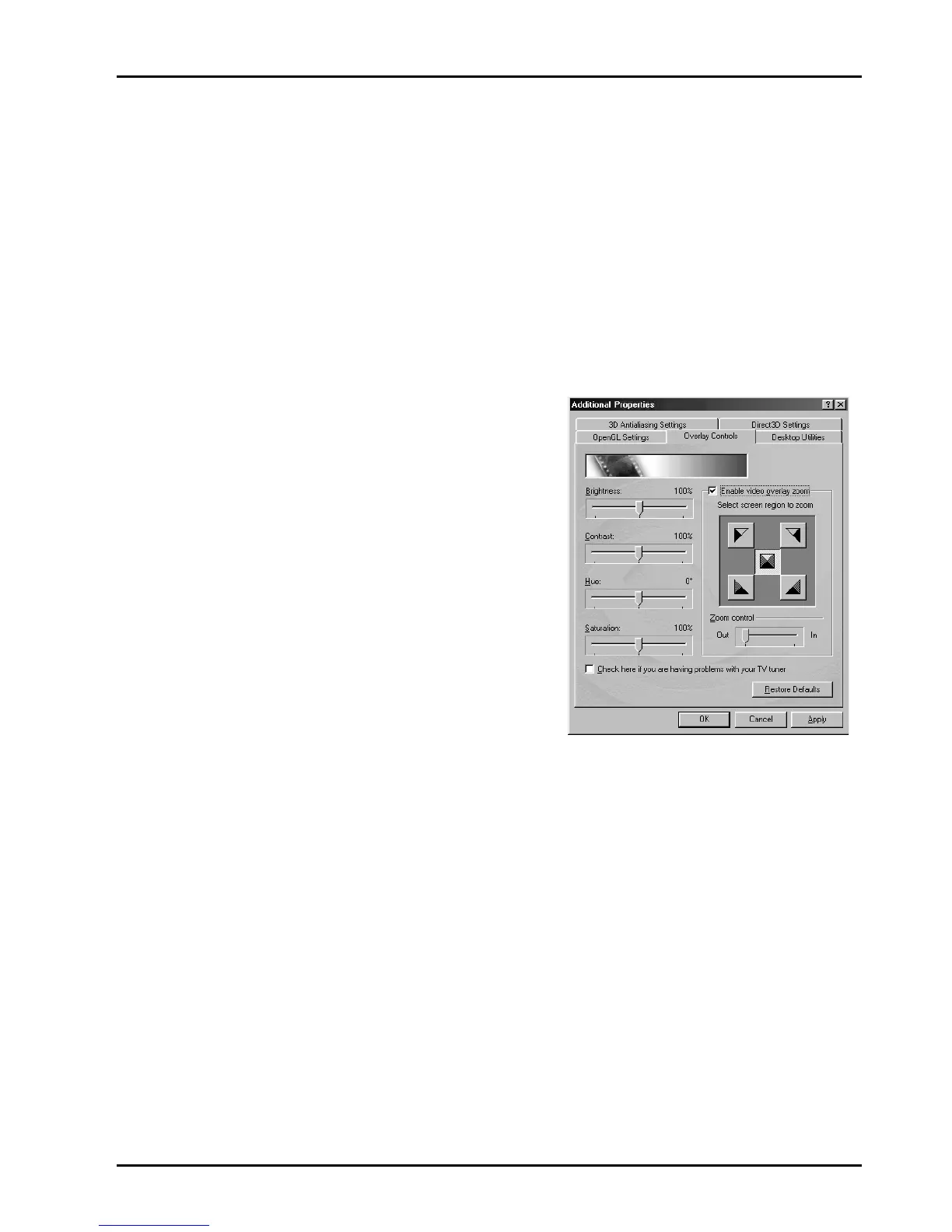

2. A. Enable Overlay Controls
B.
Enable video overlay zoom:
Click
this check box and click
Apply
to
use the Zoom control slider to zoom
in (out) on a specific area of the
video output (overlay) on your
screen. Using the diagram of the
screen regions shown on the Overlay
Controls panel, you can select the
area of the video screen you would
like to zoom. Once selected, you can
zoom to that portion of the screen by
moving the Zoom Control slider
between the Out and In range.
3. Be sure to click
Apply
whenever you make any changes to the control panels.
If changes do not take effect (the controls have no effect on the video) after
you click Apply, close the video overlay and then re-open it.

Nvidia GeForce4 MX Series Specifications

General

Memory Clock	166-275 MHz
DirectX	7.0
OpenGL	1.2
Pixel Pipelines	2
TMUs Per Pipeline	2
ROPs	2
AGP	4x
Manufacturing Process	150 nm
Maximum Resolution	2048x1536
RAMDAC	350 MHz
Max Memory	64 MB
Architecture	NV17
Memory Type	SDR, DDR
Memory Bus Width	64/128-bit
