C310/C330/C510/C530 How to remove Jammed Paper
<4>
© Copyright 2010 Oki Data Corporation
Clearing Media Jams
Error code: 370, 371 or 372

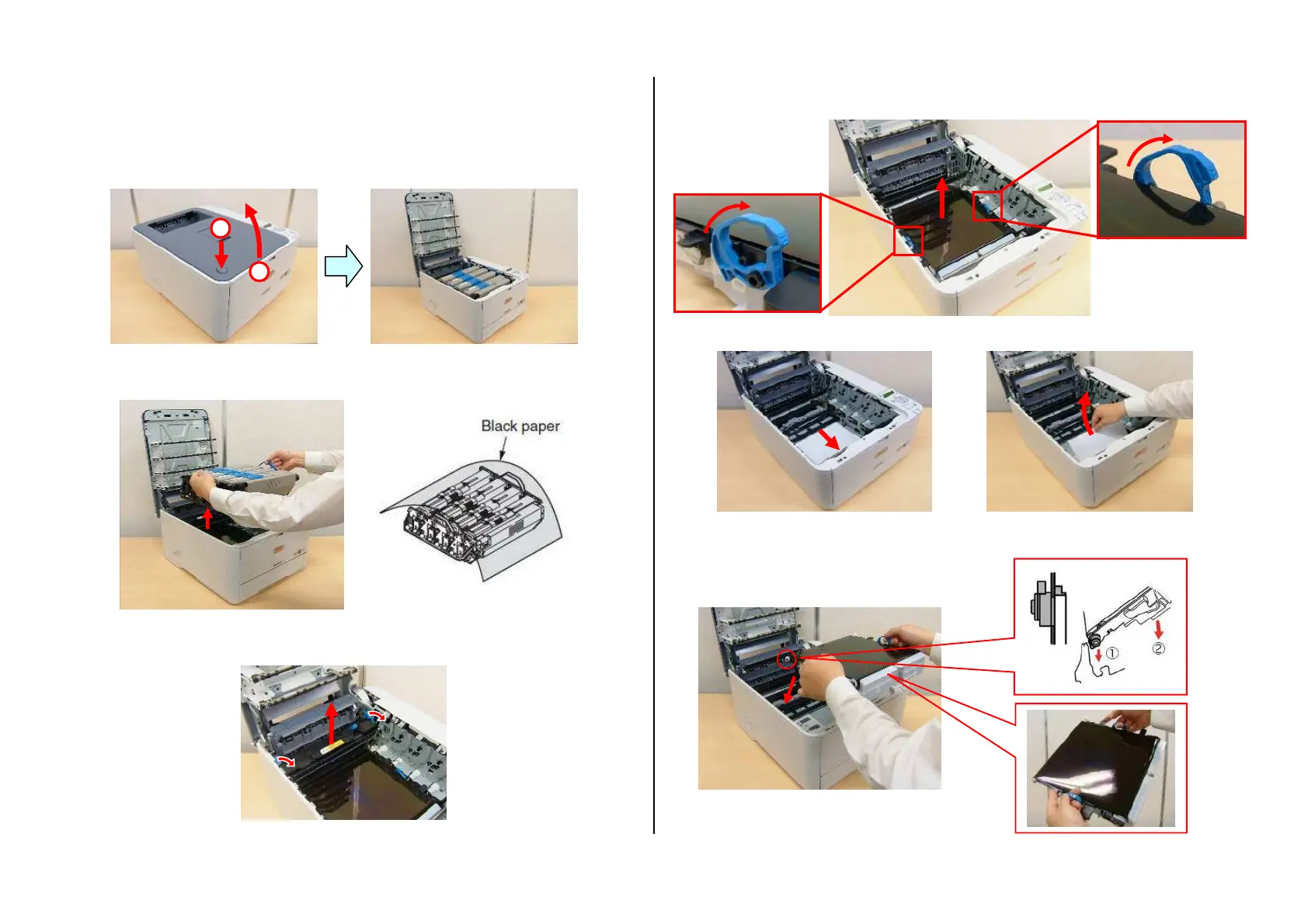

(1) Press the OPEN button and open the top cover.
(2) Take out the image drum unit, place it on a flat surface, and cover
it with black paper.
(3) Move the fuser unit lock levers to the direction of the arrow to
unlock the fuser unit, and then remove the fuser unit.
(4) Place a finger behind the belt unit lock levers (blue) and raise and
remove it.
(5) Remove jammed paper in the direction of the arrow.
(6) Hold the belt unit by the lock lever (blue) on each side of it, and
install the belt unit
2
1
