25

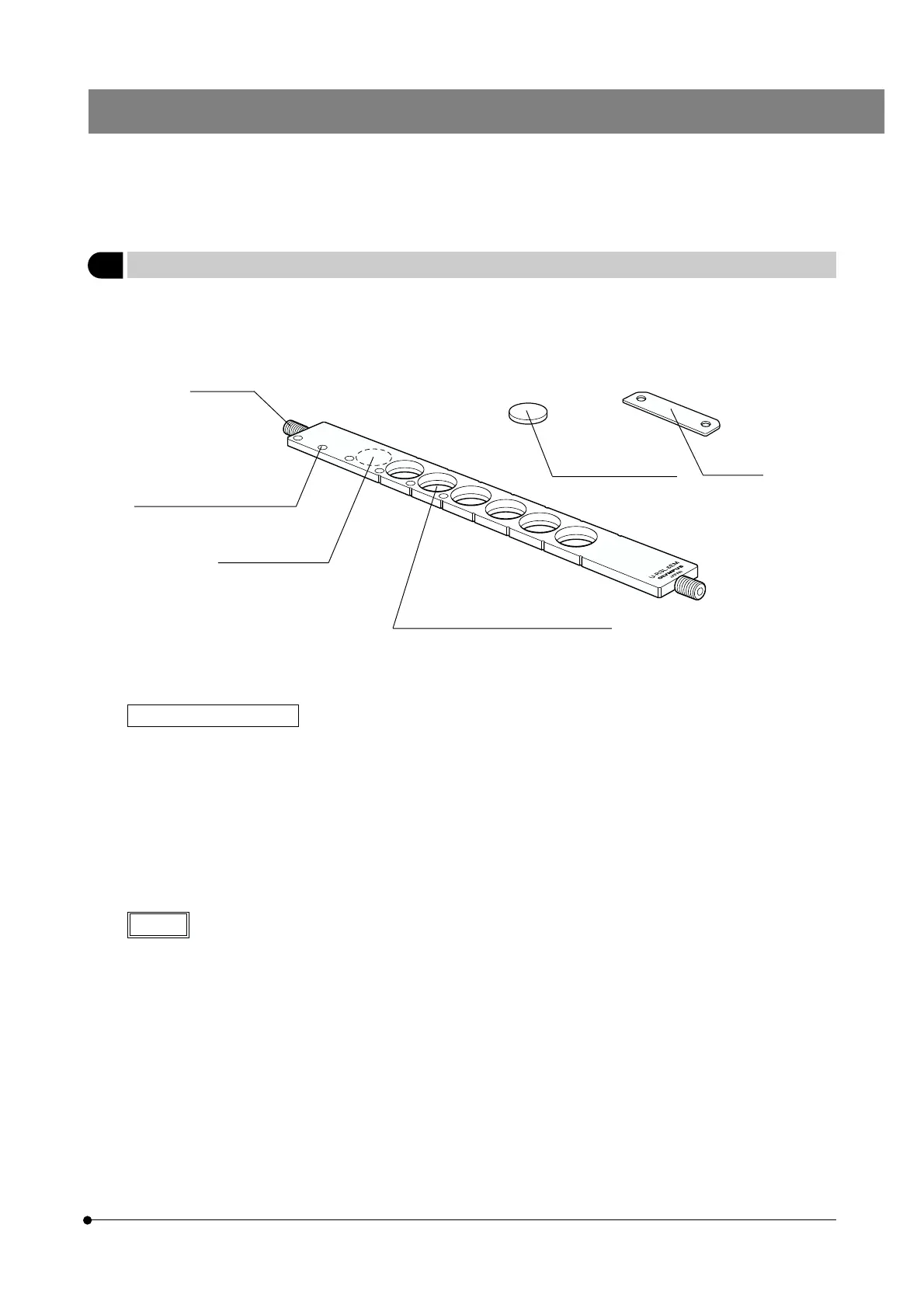

2 6-Position Barrier Filter Slider U-RSL6EM
}This filter slider is for common use with the BX-URA2 or BX-RFA illuminator and accommodates a total of six barrier filters.
Slider knob
Inscription sticker position
Filter Mounting Procedure
1. Remove the slider knob on the opposite end to the extremity where the slider inscription is engraved.
2. Gently place the barrier filters in their insertion positions.
# Insert the filters so that their arrow inscriptions on the side face downward.
3. If it is required to inscribe the types of the inserted filters, write them on commercially available round stickers in the same
way as with the U-RLS6 filter slider.
4. Gently insert the filter slider from the right of the analyzer insertion slot on the illuminator, and attach the slider knob which
has been removed in step 1 above.
5. Use the joint plates if you want to interlock this filter slider with the U-RSL6 filter slider. (For the attaching method, see the
description on the U-RSL6.)
NOTES
}Be sure to insert the filter slider in the specified orientation. Otherwise, the filters cannot be set in the correct positioning.
}For safety, insert the provided light shield plates in the unused filter positions.
Diameter 8 mm, depth 1 mm
Light shied position
Barrier filter insertion positions (x 6)
Diameter 25 mm, thickness max. 5 mm
Light shield plate (x 4)
Joint plate
