BX53/BX53M-P
10
3
3

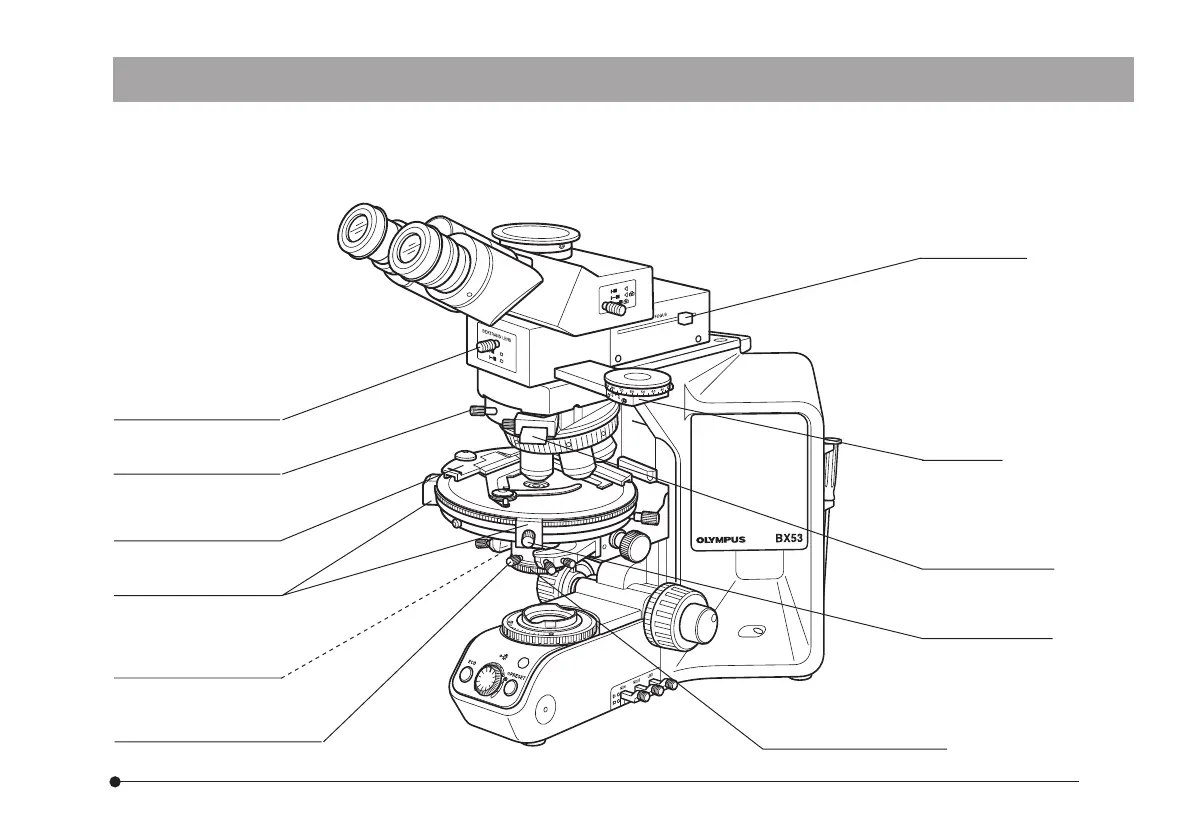

CONTROLS
The illustration shows the U-CP
A set. Other components are
introduced on the following pages.
Bertrand lens knob
Slider clamping knob
Mechanical stage
Aperture iris
diaphragm lever
P
olarizer rotation ring
Bertrand lens
focusing knob
Analyzer
Slot for
compensators
Stage rotation
clamping knob
P
olarizer clamping knob
V
ernier scale
12
14
Table of Contents
Table of Contents
3
Important
4
Nomenclature
5
Assembly
6
Assembly Diagram
6
Detailed Assembly Procedure
7
Controls
13
Using the Controls
15
Stage
15
Intermediate Polarizing Attachment
18
Polarized Light Observation
19
Adjustments before Observation
19
Adjusting the Optical Axis
19
Adjusting for Extinction
25
Adjusting the Eyepiece Cross Lines
26
Orthoscopic Observation
28
Conoscopic Observation
29
Specifications
30
Optical Characteristics
32
Troubleshooting Guide
33
4
Based on 1 rating
Ask a question
