Olympus BX53M-P User Manual

3
22 ASSEMBLY

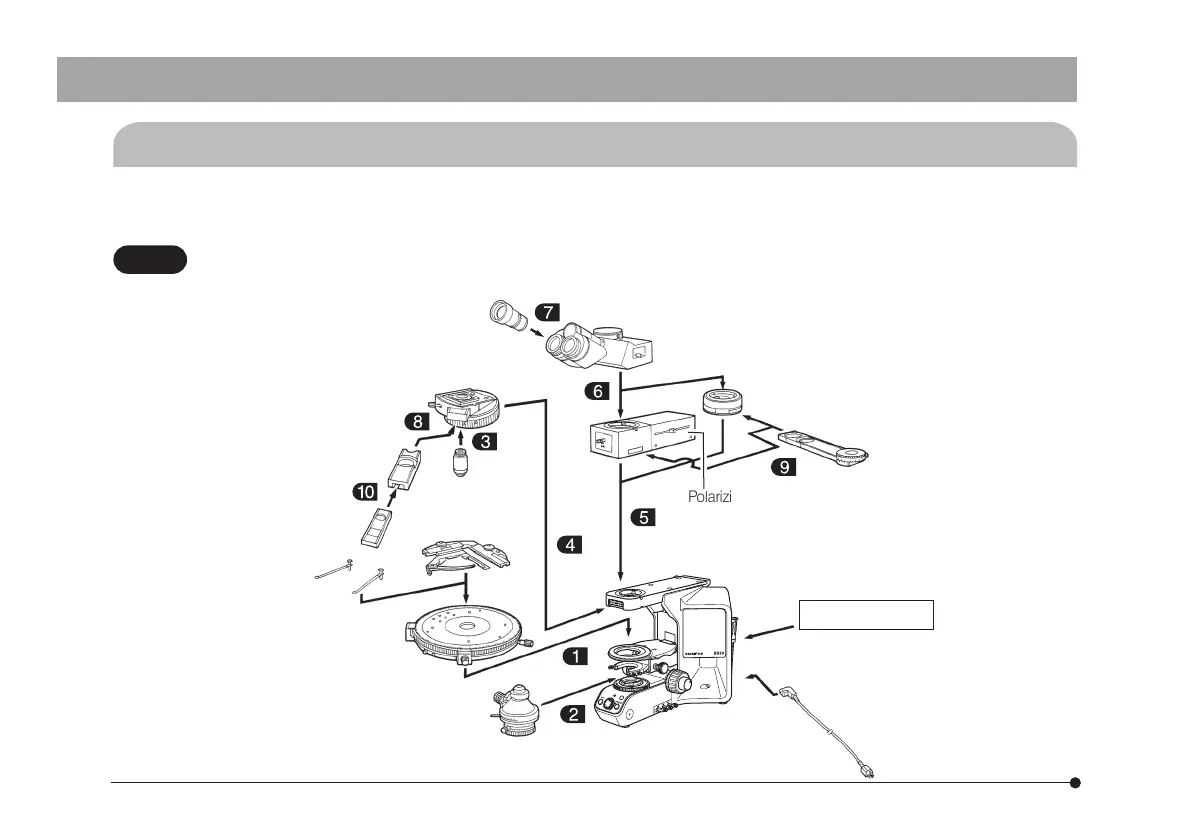

2-1 Assembly Diagram
The diagram below shows how to assemble the various components. The numbers indicate the order of assembly.
} For details on the BX53/BX53M microscope frame, consult the BX53/BX53M manual.
When assembling the components, make sure that all parts are free of dust and dirt, and avoid scratching any
parts or touching glass surfaces.
CAUTION
Light source unit
Eyepiece
Centerable revolving
nosepiece (U-P4RE)
Test plate adapter (U-TAD)
Stage clips
Mechanical stage
(U-FMP)
Polarizing rotatable stage
(U-SRP)
Polarizing
intermediate
attachment
(U-CPA)
Strain-free condenser
(U-POC-2)
Microscope frame
(BX53F/BX53MTRF-S)
Intermediate attachment
for AN360P (U-OPA)
Rotatable analyzer
(U-AN360P)
Power cord
Observation tube
Sensitive tint plate (U-TP530)
Quarter wave plate (U-TP137)
Strain-free
objective
*6 types of compensators available
