18

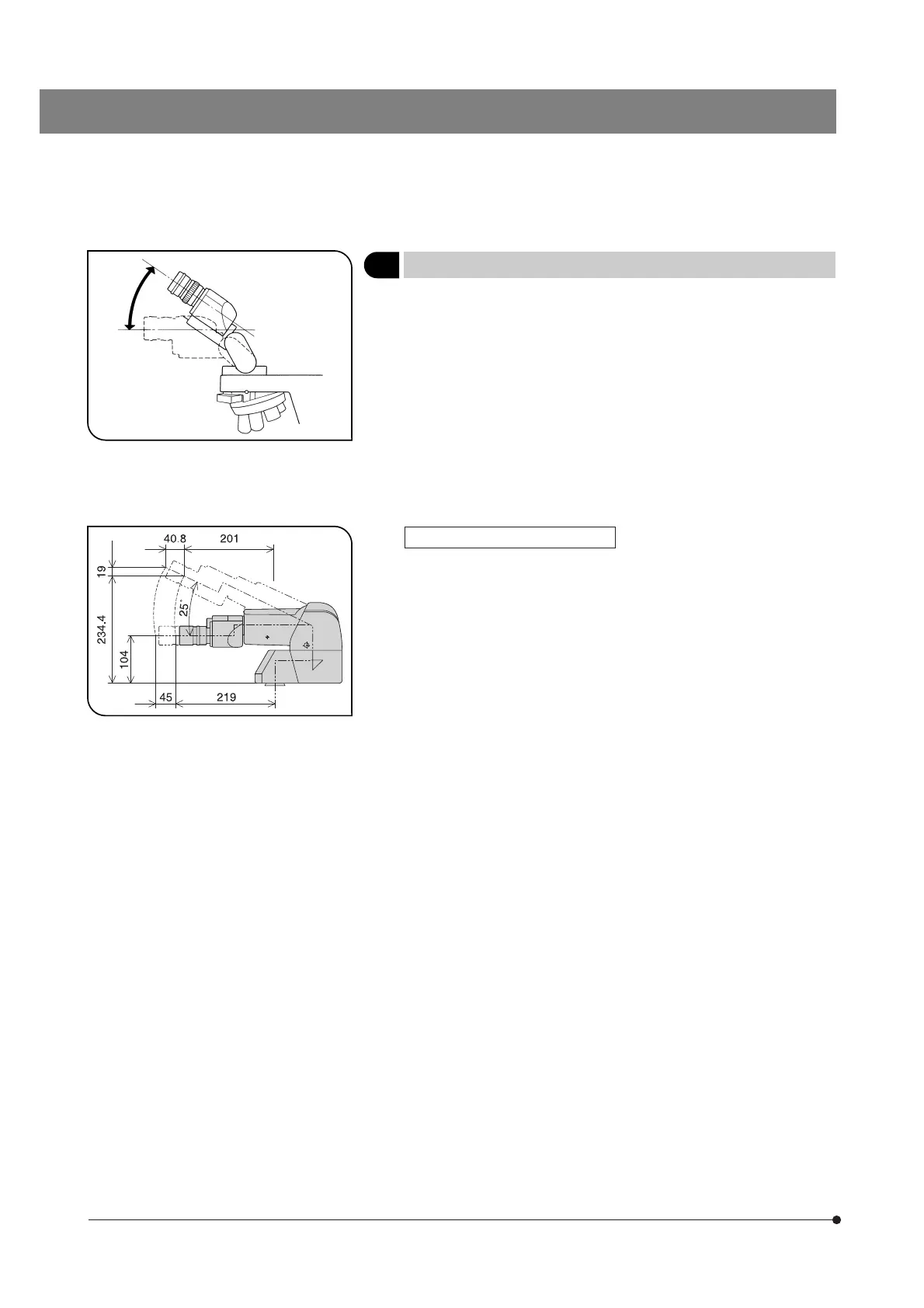

6 Adjusting the Tilt (with the U-TBI3)
(Fig. 30)
}Adjust the height and tilt of the observation tube to obtain the most
comfortable viewing position.
Holding the binocular section with both hands, raise or lower it to the
desired position.
# Never attempt to force the binocular section past the upper or lower
stop position. Applying excessive force could destroy the limiting
mechanism.
}The U-TBI3 can be used in combination with only one intermediate at-
tachment. However, no intermediate attachment can be combined when
the BX-RFAA or BX-RLAA reflected light illuminator is used.
}If you need photography using the U-TBI3, also use the U-TRU trinocular
intermediate tube.
With the U-ETBI/U-TTBI (Fig. 31)
The U-ETBI and U-TTBI are ergonomic observation tubes with normal
field, capable of the tilting adjustment as well as the adjustment of the
eyepiece position toward the front and rear (by 45 mm). The U-ETBI is the
erect image model and the U-TTBI is the inverted image model, and
both models are of the same size.
#The intermediate attachments that can be combined with the U-
TTBI are limited. For details, please contact Olympus.
Fig. 30
Fig. 31
