Olympus SZ-III User Manual

OLYMPUS STEREOSCOPIC ZOOM MICROSCOPE
MODEL SZ-Ill

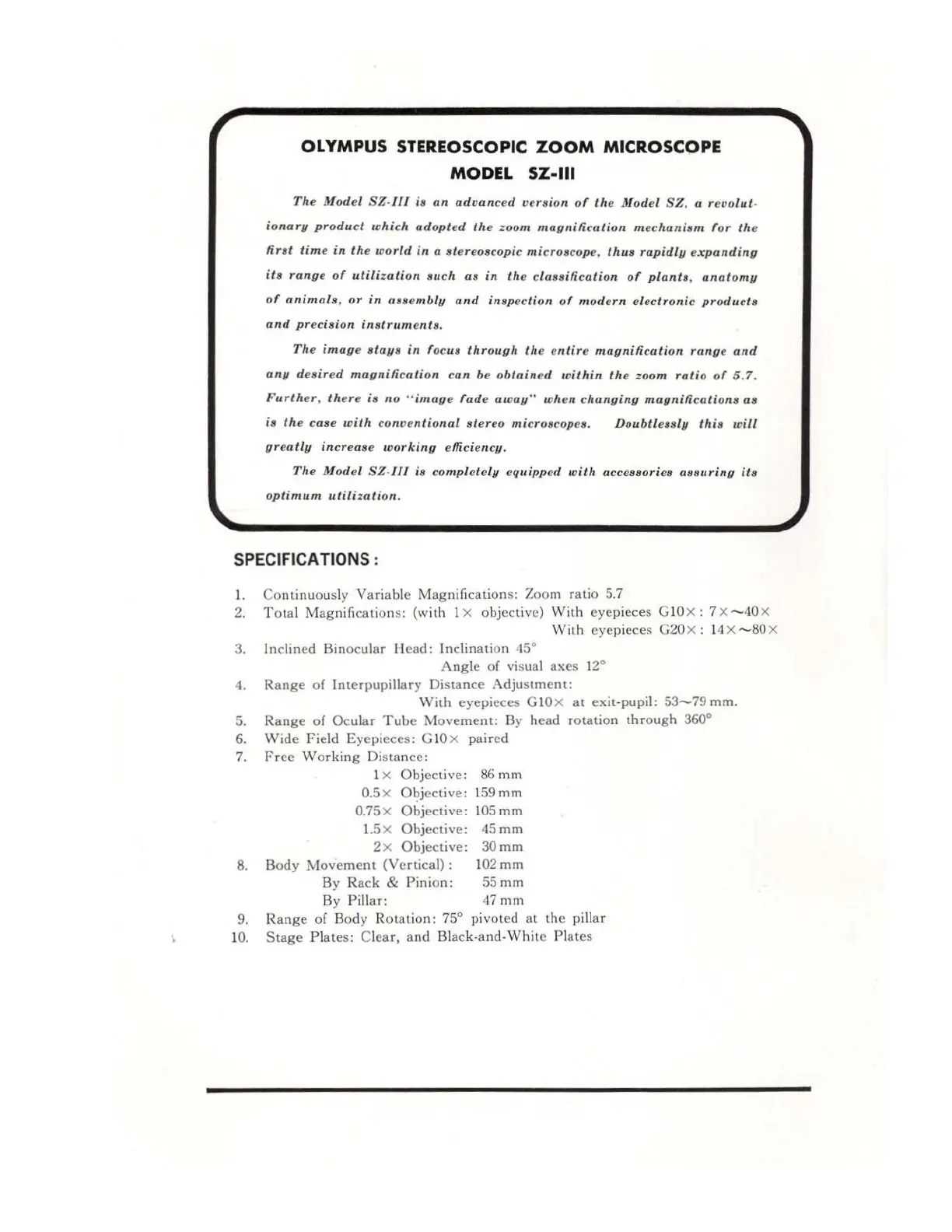

The Model SZ-III is an advanced version of the Model SZ, a revolut-
ionary product which adopted the zoom magnification mechanism for the
first time in the world in a stereoscopic microscope, thus rapidly expanding
its range of utilization such as in the classification of plants, anatomy
of animals, or in assembly and inspection of modern electronic products
and precision instruments.
The image stays in focus through the entire magnification range and
any desired magnification can be obtained within the zoom ratio of 5.7.
Further, there is no “image fade away” when changing magnifications as
is the case with conventional stereo microscopes. Doubtlessly this will
greatly increase working efficiency.
The Model SZ-III is completely equipped with accessories assuring its
optimum utilization.
SPECIFICATIONS :
gnifications: Zoom ratio 5.7
(with 1X objective) With eyepieces G10x: 7x ~40x
With eyepieces G20x: 14x ~80x
1. Continuously Variable
2. Total Magnification:
3. Inclined Binocular Head: Inclination 45°
Angle of visual axes 12°
Range of Interpupillary Distance Adjustment:
With eyepieces G10X at exit-pupil: 53-79 mm.
5. Range of Ocular Tube Movement: By head rotation through 360º
6. Wide Field Eyepieces: G10x paired
7. Free Working Distance
1x
Objective: 86mm
0.5x Objective: 159 mm
Objective: 105 mm
15x Objective: 45mm
2x Objective: 30mm
8. Body Movement (Vertical): 102mm
By Rack & Pinion: 55mm
By Pillar: 47 mm
9. Range of Body Rotation: 75° pivoted at the pillar
10. Stage Plates: Clear, and Black-and-White Plates
