Stage
plate

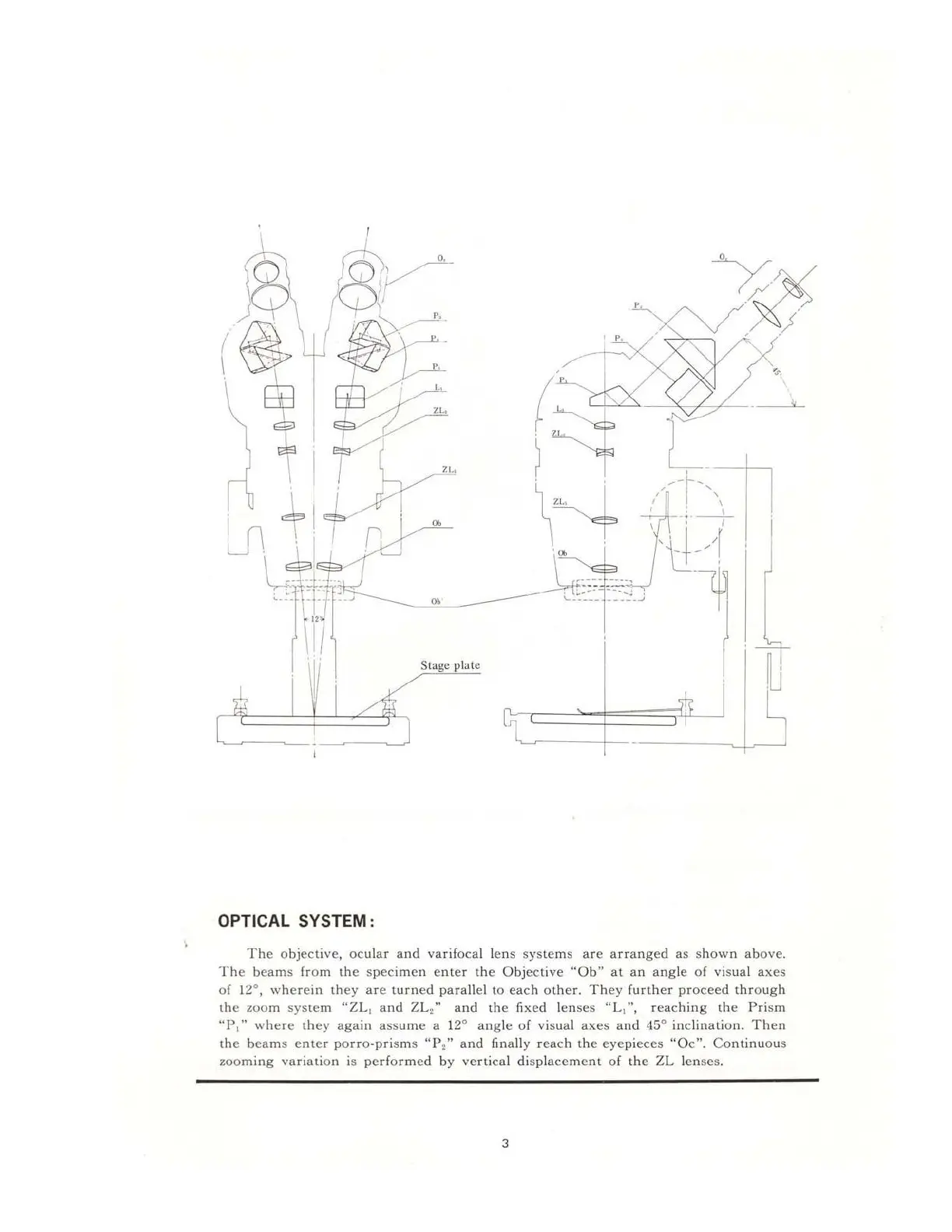

OPTICAL
SYSTEM:
The
objective,
ocular
and
varifocal
lens
systems
are
arranged
as
shown
above.
The
beams
from
the
specimen
enter
the
Objective
“Ob”
at
an
angle
of
visual
axes
of
12°,
wherein
they
are
turned
parallel
to
each
other.
They
further
proceed through
the
zoom
system
“ZL,
and
ZL,”
and
the
fixed
lenses
“L,”,
reaching
the
Prism
“P,”
where
they
again
assume
a
12°
angle
of
visual
axes
and
45°
inclination.
Then
the
beams
enter
porro-prisms
“P,”
and
finally
reach
the
eyepieces
“Oc”.
Continuous
zooming
variation
is
performed
by
vertical
displacement
of
the
ZL
lenses.
