Omron E5 K Series User Manual

E5AK/E5CK/E5EK
E5AK/E5CK/E5EK
106

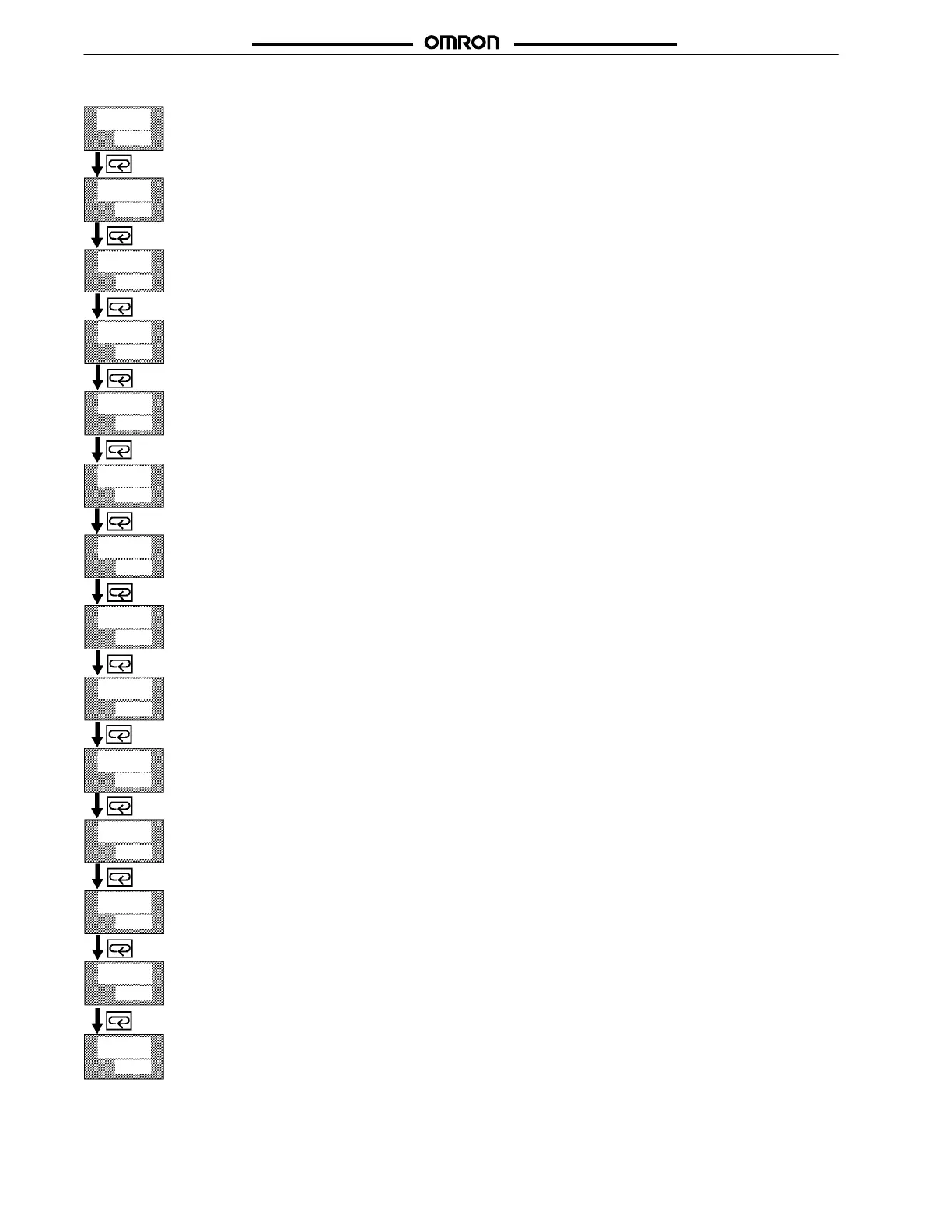

Setup Mode
2
100
i n - h
0
0
c
Input Type
Sets the input type connected to terminals 6 through 8.
Note: Set input jumper to current, voltage, or temperature setting before changing input type.
Default = 2 (K1 type thermocouple)
Scaling Upper Limit
Used if the input type connected to the Controller is an analog input (voltage or current input).
Range = 1 to 9999
Default = 100
Scaling Lower Limit
Used if the input type connected to the Controller is an analog input (voltage or current input).
Range = –1999 to –1
Default = 0
Decimal Point
Used only if the input type connected to the Controller is an analog input (voltage or current input).
Range = 0 to 3
Default = 0
°C/°F Selection
Used if the input type connected to the Controller is a temperature input (thermocouple or platinum resistance
thermometer).
Default = °C
Parameter Initialize
Returns the controller to Factory Default Settings.
Control Output 1 Assignment
Assigns the Controller to have one of the following output functions: heating control, cooling control, alarm 1,
alarm 2, alarm 3, and LBA (loop break alarm).
Default = heat
Control Output 2 Assignment
Assigns the Controller to have one of the following output functions: heating control, cooling control, alarm 1,
alarm 2, alarm 3, and LBA (loop break alarm).
Default = Alarm 1
Auxiliary Output 1 Assignment
Enables the Controller to have one of the following outputs: alarm 1, alarm 2, alarm 3, LBA (loop break alarm)
Default = Alarm 2
Note: The following parameters are available only when the controller has an alarm output. (See the table on the
Expansion Mode table.
Alarm 1 Type
Provides a choice of 11 different alarm operations.
Default = 2 (See Alarm Summary Table for Alarm types available.)
Alarm 1 Open in Alarm
Synchronizes the alarm LED with the operation of the alarm. If the alarm is operating as a normally closed relay
(open in alarm condition), this parameter should be set to ’Open in Alarm’. If the alarm is operating as a normally
open relay (close in alarm condition), this parameter should be set to ‘Close in Alarm’.
Alarm 2 Type
Provides a choice of 11 different alarm operations.
Default = 2 (See Alarm Summary Table for Alarm types available.)
Alarm 3 Type Note: An example of this display is not shown here.
OPEN W/Alarm
Alarm 2 Open in Alarm
Synchronizes the alarm LED with the operation of the alarm. If the alarm is operating as a normally closed relay
(open in alarm condition), this parameter should be set to ’Open in Alarm’. If the alarm is operating as a normally
open relay (close in alarm condition), this parameter should be set to ‘Close in Alarm’.
Direct/Reverse Operation
Choose between direct (cooling) or reverse (heating) control action.
Default = reverse (heating).
Direct (cooling) = MV increases with decreasing PV.
Reverse (heating) = MV increases with increasing PV.
no
heat
al-1
al-2
2
n-o
2
n-o
i n - l
d p
d - u
a l 1 n
a l 2 n
i n i t
o u t 1
o u t 2
a l t 2
or-r
o r e U
i n - t
s u b 1
a l t 1
