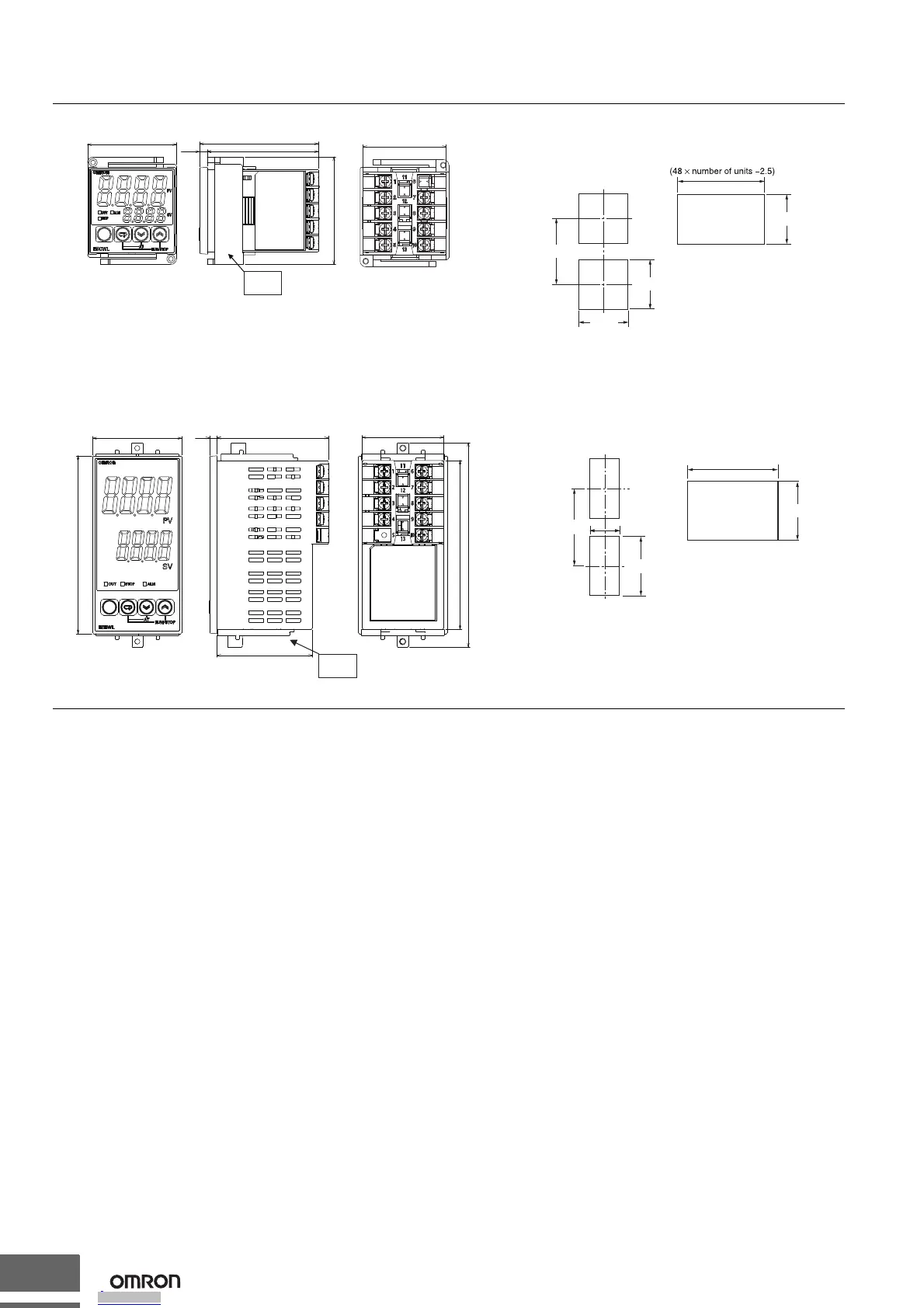

Dimensions (Unit: mm)
E5CSL/E5CWL
Adapter
(Y92F-49)
Package Contents
• Temperature Controller
• Adapter
• Instruction Manual
460
64
58
44.8×44.8
48×48
• Solderless terminal size: M3.5
• Terminal Cover: E53-COV19 (sold separately)
• Front Panel: E53-COV20 (sold separately)
*The dimensions are the same
for the E5CSL.
60 min.
+1.0
0
45
+0.6
0
45
+0.6
0
45
+0.6
0
Panel Cutout
Individual Mounting Group Mounting
Package Contents
• Temperature Controller
• Adapter
• Instruction Manual
• Solderless terminal size: M3.5
• Terminal Cover: E53-COV19
(sold separately)
Adapter
(Y92F-51)
96
48
4
60
51.5
44
91.1
110
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction.
(Maintain the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the ambient
operating temperature given in the specifications.
E5EWL
Individual Mounting Group Mounting
(48 x number of Controllers −2.5)
120 min.
+1.0
0
45
+0.6
0
92
+0.8
0
92
+0.8
0
Panel Cutout
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction.
(Maintain the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the ambient
operating temperature given in the specifications.
