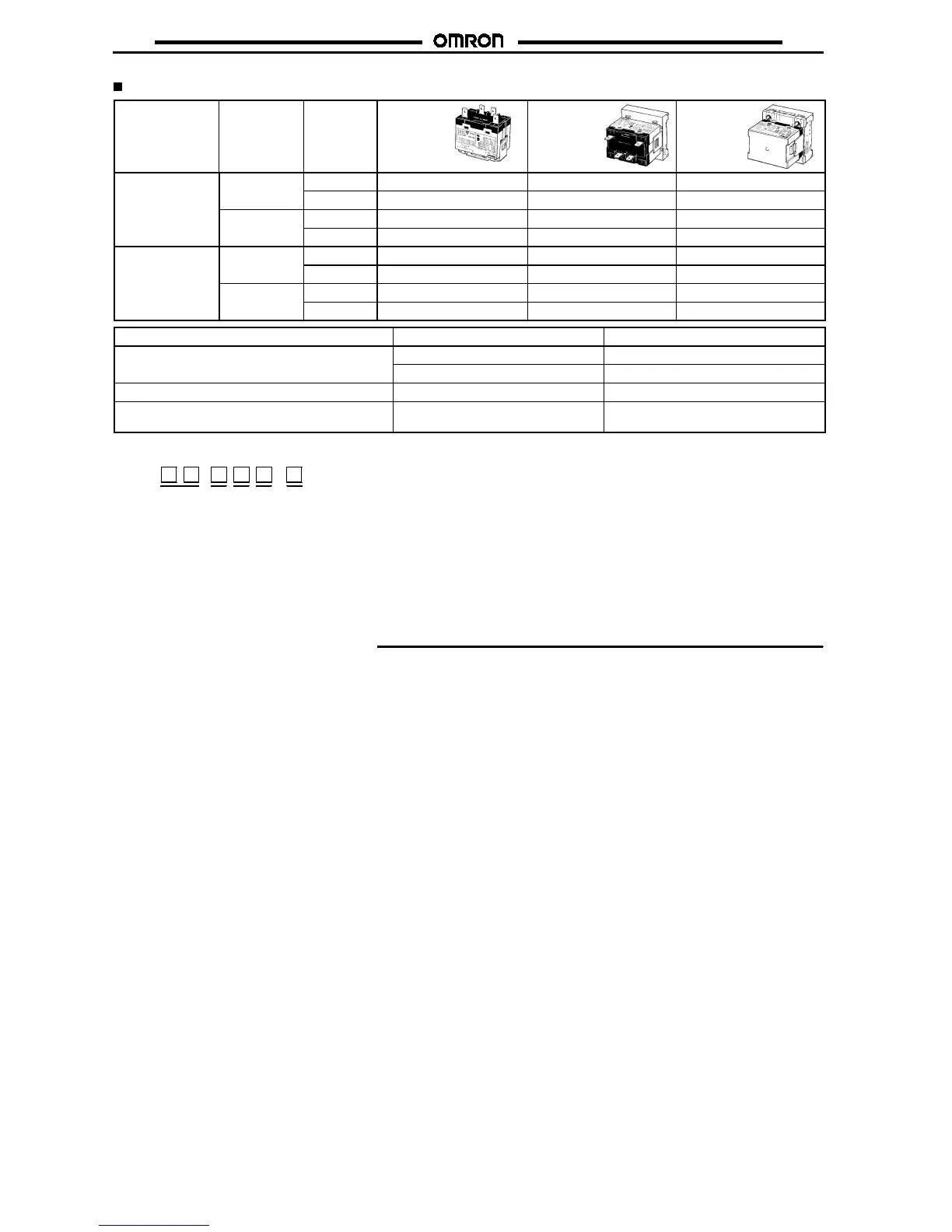

G7L
G7L
2
Accessories (Order Separately)
Terminals Contact form Model R99-07
E-brackets
P7LF-D DIN
Track
Mounting
Adapter
P7LF-06
Front-con
necting
Socket
Quick-connect
SPST-NO G7L-1A-T Yes Yes Yes
terminals
G7L-1A-TJ Yes Yes Yes
DPST-NO G7L-2A-T Yes Yes Yes
G7L-2A-TJ Yes Yes Yes
Screw terminals
SPST-NO G7L-1A-B Yes Yes No
G7L-1A-BJ Yes Yes No
DPST-NO G7L-2A-B Yes Yes No
G7L-2A-BJ Yes Yes No
Applicable Relay Name Model
G7L-1A-T/G7L-1A-TJ/G7L-1A-B/G7L-1A-BJ E-bracket R99-07
G7L-2A-T/G7L-2A-TJ/G7L-2A-B/G7L-2A-BJ Adapter P7LF-D
G7L-1A-T/G7L-1A-TJ/G7L-2A-T/G7L-2A-TJ Front-connecting Socket P7LF-06
G7L-1A-B/G7L-1A-BJ/G7L-1A-BUB/G7L-1A-BUBJ
G7L-2A-B/G7L-2A-BJ/G7L-2A-BUB/G7L-2A-BUBJ
Cover P7LF-C
Model Number Legend
G7L - -
1234,5
1. Contact Form
1A: SPST-NO
2A: DPST-NO
2. Terminal Shape
T: Quick-connect terminals
P: PCB terminals
B: Screw terminals
3. Mounting Construction
Blank: E-bracket
UB: Upper bracket
4. Special Functions
Blank: Standard mode
J: With test button
5. Rated Coil Voltage
AC: 12, 24, 50, 100 to 120, 200 to 240
DC: 6, 12, 24, 48, 100
Application Examples
!
Compressors for air conditioners and heater switching
controllers.
!
Switching controllers for power tools or motors.
!
Power controllers for water heaters.
!
Power controllers for dryers.
!
Lamp controls, motor drivers, and power supply switching in
copymachines,facsimilemachines, andotherofficeequipment.
!
Lighting controllers.
!
Power controllers for packers or food processing equipment.
!
Magnetron control in microwaves.
