Common to All Timers H3DS-@LC B-45
Timers

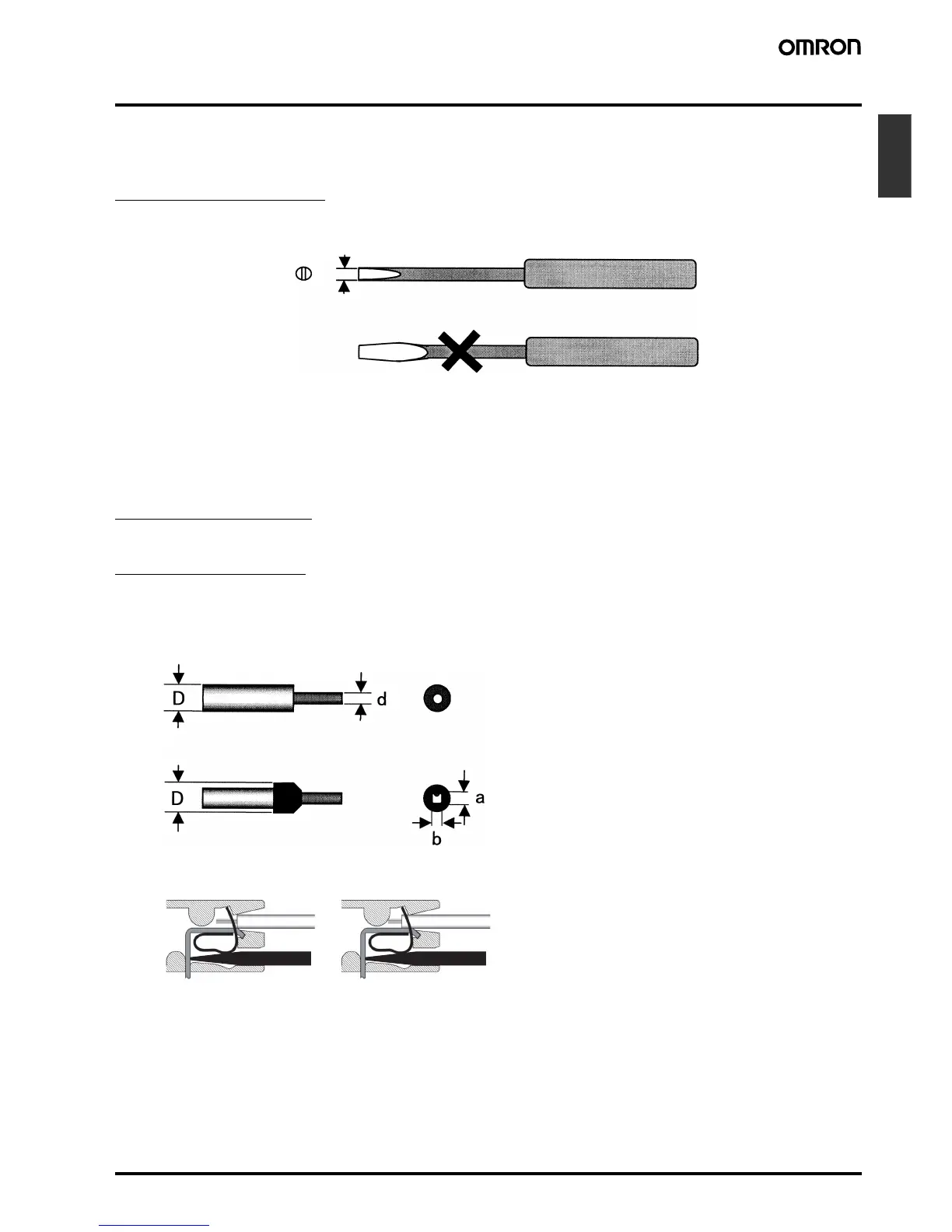

Installation of Screw-Less Clamp Models
■ Tools
A flat-blade screwdriver should be used to mount the cables.
Applicable Screwdriver
● Flat-blade, Parallel-tip, 2.5 mm diameter
Examples: FACOM AEF.2.5 × 75E
VESSEL No. 9900-(-)2.5 × 75
WAGO 210-119
WIHA 260/2.5 × 40
■ Applicable Wires
Applicable Wire Sizes
0.2 to 1.5 mm
2
, AWG24 to AWG16
Applicable Wire Type
Solid wires, stranded wires, flexible wires, or wires with ferules can
be used.
(See note 1) < 1.8 ≤ Diameter D (mm) ≤ 3.0 (see note 2)
Conductor diameter d (mm) or length of sides a and b (mm) ≤ 1.6
Note: 1. If the overall diameter of the wire is less than 1.8 mm, do not
insert the wire past the conductor. Refer to the following di-
agrams.
2. If the overall diameter of the wire is over 2.8 mm, it will be
difficult to use double wiring.
• Flat-blade, Parallel-tip
• Flat-blade, Flared-tip
Cannot be used.
2.5 dia.
Wires with Ferules
OK NG
To Next Page
