Features and Functions
Main unit
1. Display: Displays blood pressure and, pulse rate readings, and oscillation pulse level.
2. HIDE Button: Switches display and non-display of measured results.
3. DC jack: Connects the AC adapter.
4. P-SET (pressure setting) Knob: In the AUTO position, inflation level is automatically set.
Otherwise, inflation level can optionally be set manually between 100 and 280 mmHg.
5. MODE Selector: Selects the operation mode.
• One-time Measurement Mode (SINGLE Mode): Measurement with automatic inflation.
• Average Mode (AVG Mode): Automatically measures two (or three) times consecutively.
• Auscultation Mode (MANU Mode): Automatic inflation, automatic deflation, and pressure display for auscultation (does
not measure blood pressure).
• Check Mode (CHECK Mode): Checks the accuracy of pressure display. Displays only pressure.
6. ON/OFF (power) Button: Turns on or off the unit.
7. START Button: Starts the measurement.
8. DEFLATION (deflation control) /Measurement Result Display Switch Button:
• In the MANU Mode, deflates the cuff by approximately 5 to 10 mmHg with each push during deflation.
• In the AVG Mode, switches the display of average values and the measurement results with each push.
9. Air Connector: Connects the air tube.
10. STOP Button: Stops the measurement and deflates air rapidly.
1. Display
2. HIDE (non-display) Button
3. DC jack
4. P-SET (pressure
setting) Knob
5. MODE Selector
6. ON/OFF (power)
Button
7. START Button
8. DEFLATION
(deflation control)
/Measurement
Result Display
Switch Button
9. Air Connector
10. STOP Button

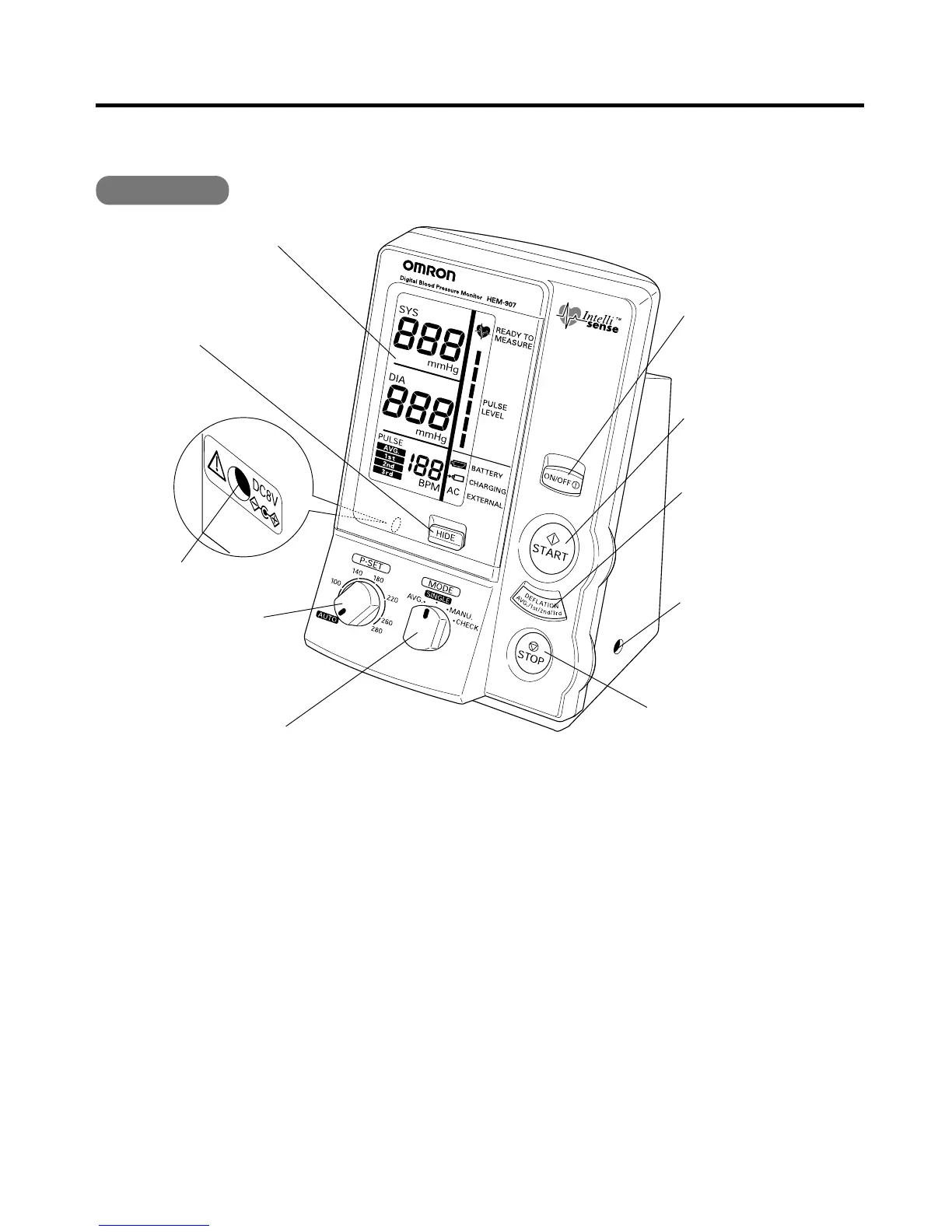

Names of the Parts
(See Page 11 for detail)
To Next Page
