Omron K8AK-LS User Manual

K8AK-LS
3
Connections
Terminal Diagram
Note: 1. Do not connect anything to terminals that are shaded in gray.
2. Use the recommended ferrules if you use twisted wires.

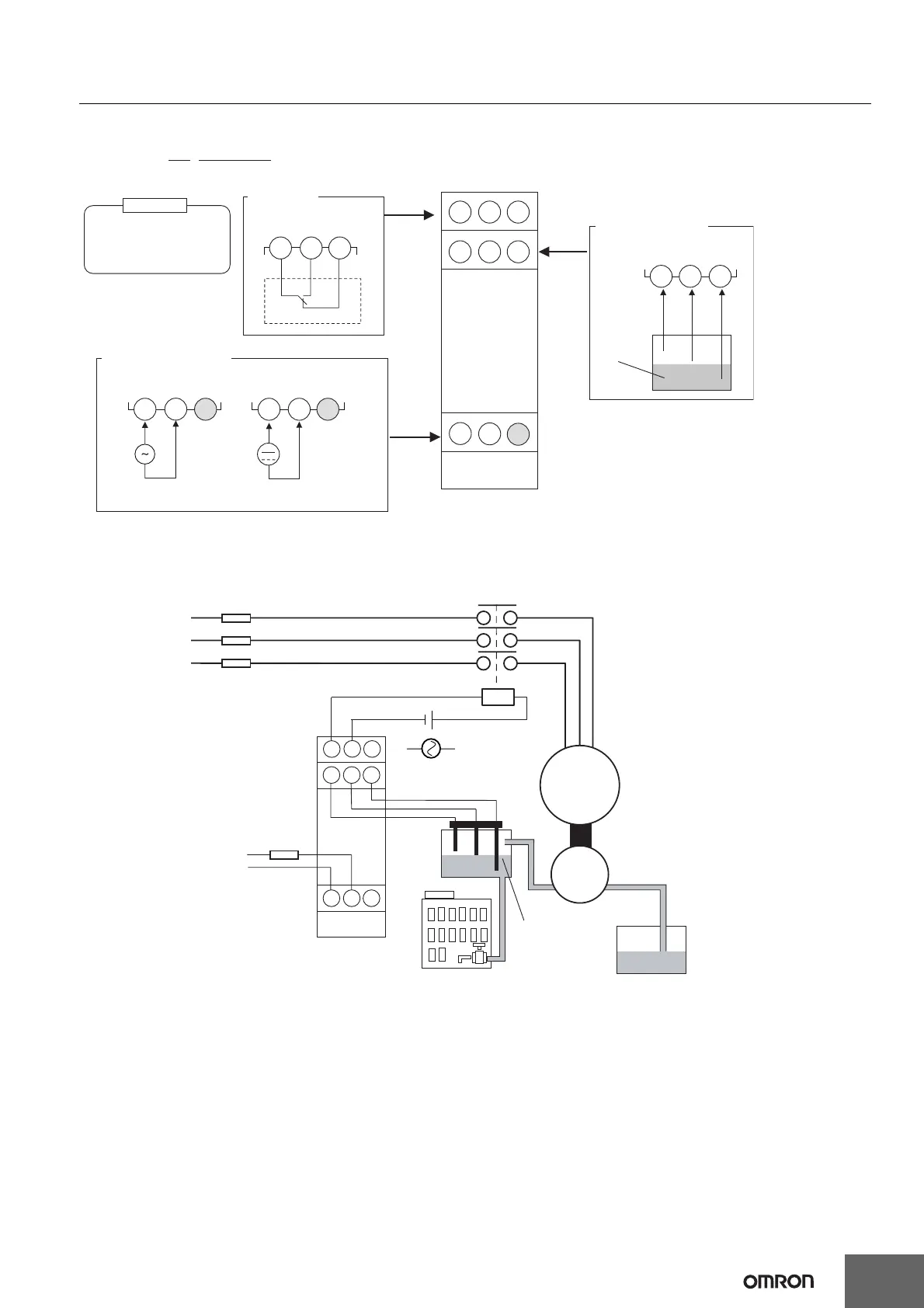

Wiring Example
K8AK-LS1 100-240VAC
AB
E1 E2 E3
A1
A2
11 14
Relay output
250 VAC, 5 A (resistive load)
30 VDC, 5 A (resistive load)
A Water Level Inputs
LS1
B Power Supply Voltage
100 to 240 VAC 24 VAC/DC
(No polarity)
12
Relay Output
Common
Water or
other liquid
Control Output
A2
A1
A2A1
E1 E2 E3
11 14 12
Power
supply voltage
Water or
other liquid
E1 E2 E3
A1 A2
A1
A2
12
14
11
L1
L2
L3
Pump motor protection mechanisms have been omitted.
Source of liquid
Motor
Pump
Three-phase
power supply
Power supply
AC/DC

Omron K8AK-LS Specifications
