Omron K8AK-LS User Manual

K8AK-LS
4

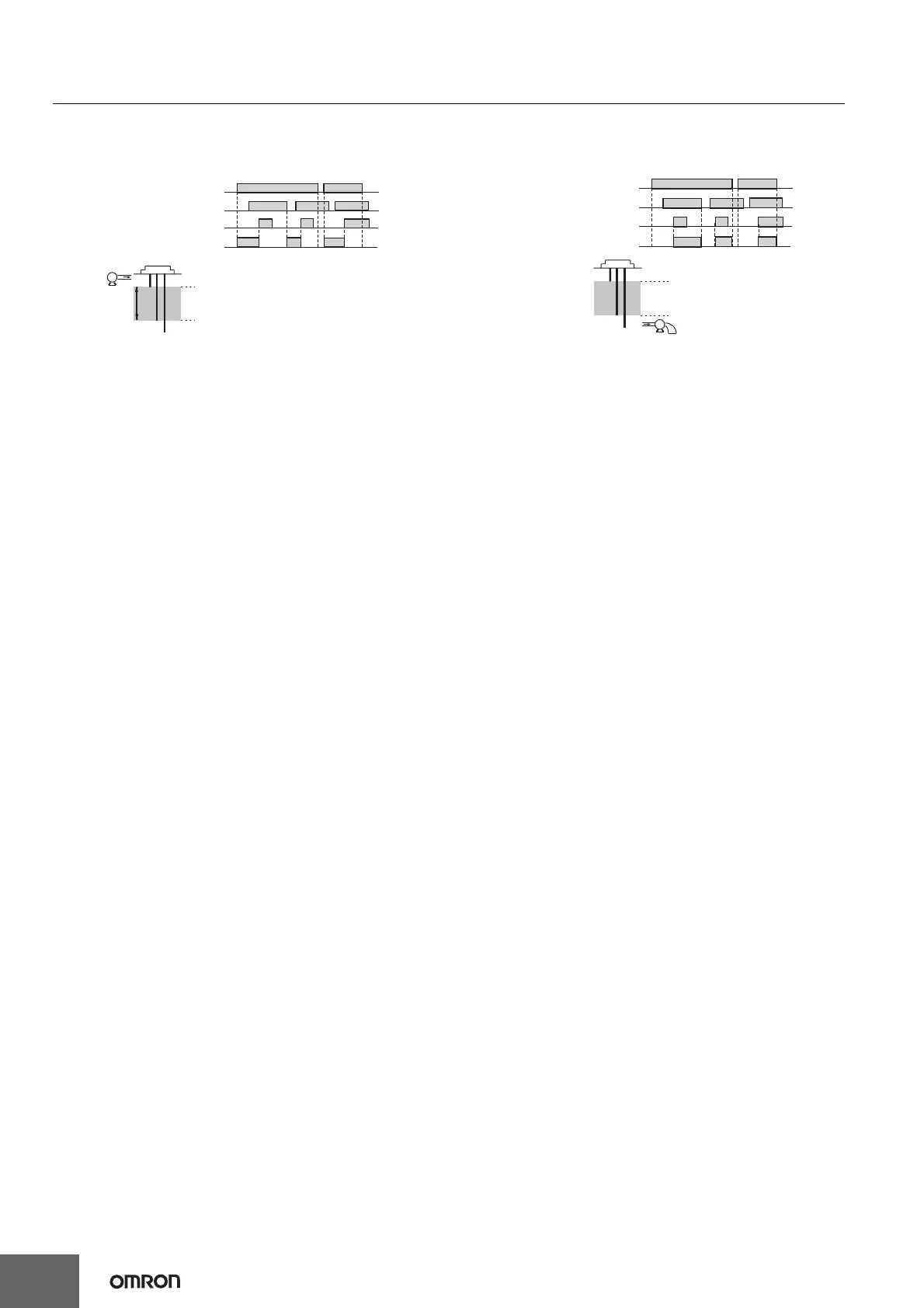

Timing Charts
●DIP Switch Pin 1: OFF (Automatic Liquid
Supply Operation)
• When the liquid level falls to E2 (indicator turns ON), the pump starts.
When the liquid level rises above E1 (indicator turns OFF), the pump stops.
●DIP Switch Pin 1: ON (Automatic Liquid
Discharge Operation)
• When the liquid level reaches E1 (indicator turns ON), the pump starts.
When the liquid level falls below E2 (indicator turns OFF), the pump stops.
Power supply voltage A1-A2
Electrode terminals E2-E3
Electrode terminals E1-E3
Control output terminals 11-14
(operation indication)
P
OFF (stop)
ON (start)
Operation indicator OFF
Operation indicator ON
E
1
E 2
E 3
Power supply voltage A1-A2
Electrode terminals E2-E3
Electrode terminals E1-E3
Control output terminals 11-14
(operation indication)
P
OFF (stop)
ON (start)
Operation indicator ON
Operation indicator OFF
E
1
E 2
E 3
