2-2 Demonstration System
2
2-2 Demonstration System
This section takes garage door control as a demonstration system. After NB-Designer is installed, the
project file of this demonstration system will be shown in the Start Menu. Click [Sample Screen(NB7)] in
the [Start]-[All Programs]-[OMRON]-[NB-Designer]-[Screen Data] to open the demonstration project.
Please note that the demonstration project includes macro files, so it can only be edited by running as an
administrator on operating systems other than XP. Run the NB-Designer as the administrator, and then open
the demonstration project in the [project]-[DemoProject_NB7W] file of NB-Designer’s installation directory.
z Operation

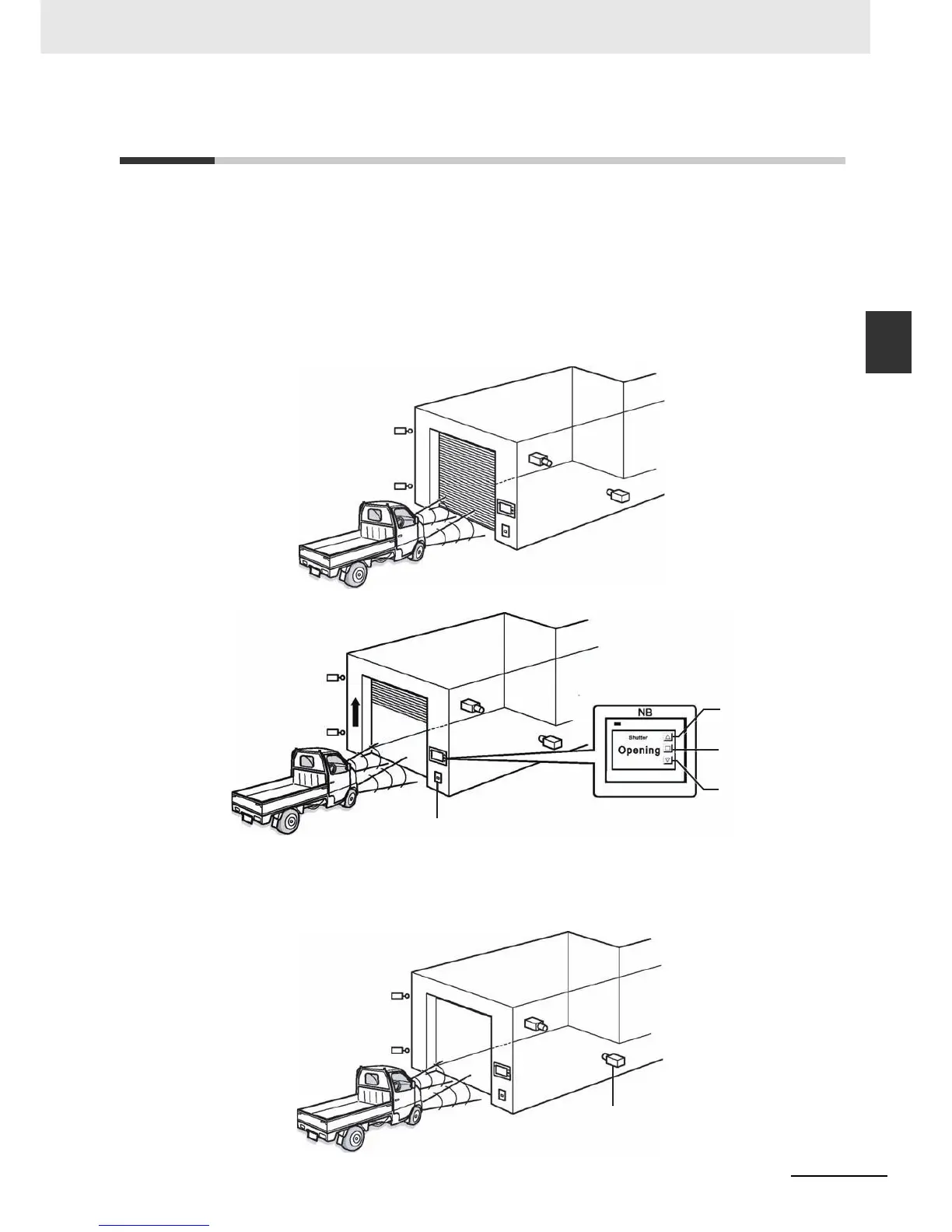

• The demonstration project is the system which opens/closes the garage door responding to the
inputs from NB7W or the sensor installed to the garage.
• The garage door opens when sensors detect headlight flashing three times per 10 seconds.
• The state of garage door is displayed on NB7W. The open, close or stop operations of garage
door can also be controlled by related switches on display device.
a Light sensor b OPEN switch
c STOP switch d CLOSE switch
To Next Page
