Omron NS10-TV01 V2 Series User Manual

6-9 Hardware Check
6-9-2 Touch Switch Check
This function checks whether the touch switches are operating normally.
Check the touch panel by using operations from the Hardware Check Tab Page in the System
Menu, as follows:
1. Press the Touch Switch Check Button to switch to the Touch Switch Check Screen.
2. Press the screen. If the part of the screen touched is shown in inverse display, the touch switch
is operating normally.

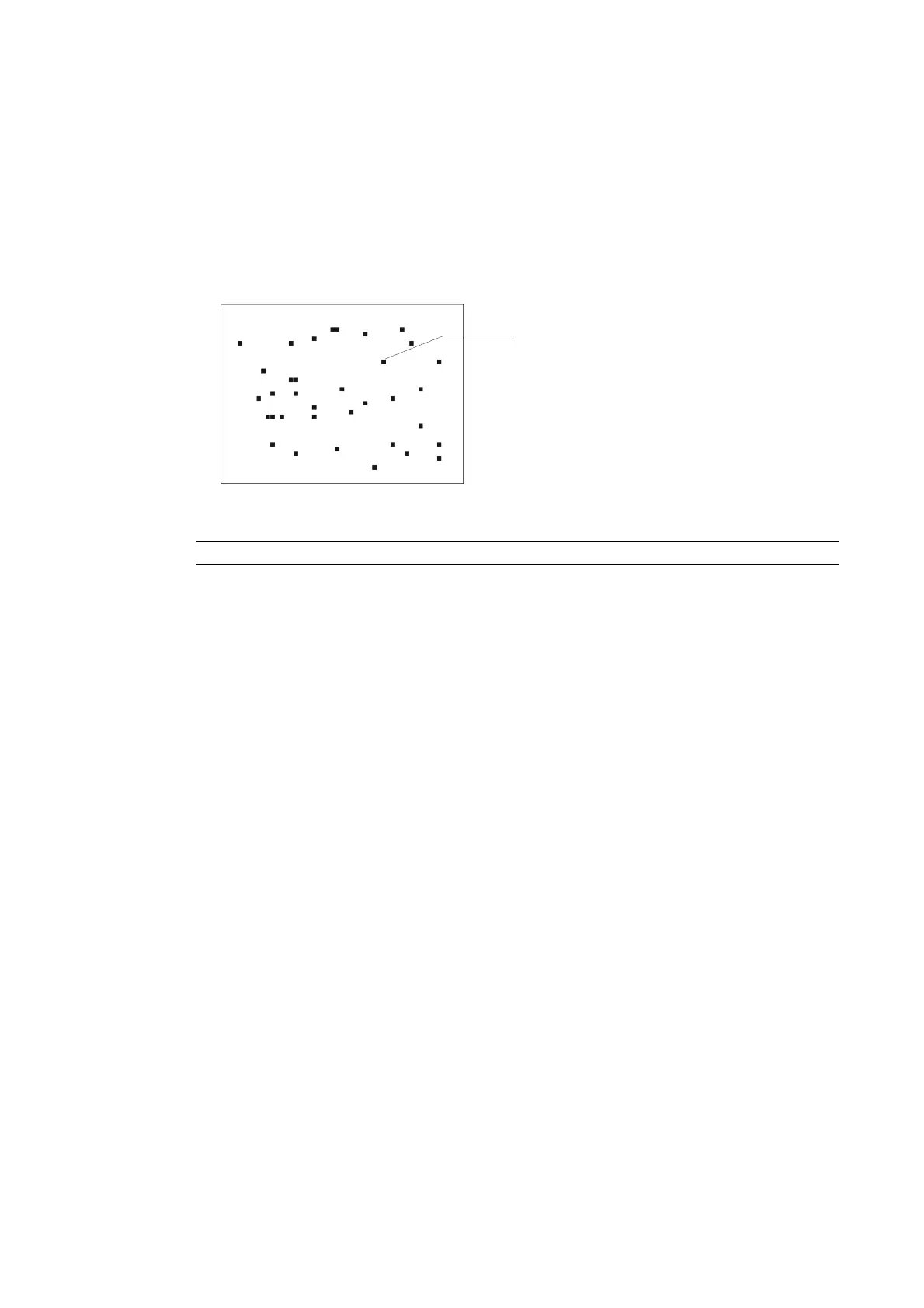

The position touched
is shown in inverse
display.
3. Press the button in the top right corner to return to the Hardware Check Screen.
Reference
Two points cannot be touched at the same time on the Touch Panel Check Screen.
6-59
