S8VS
24

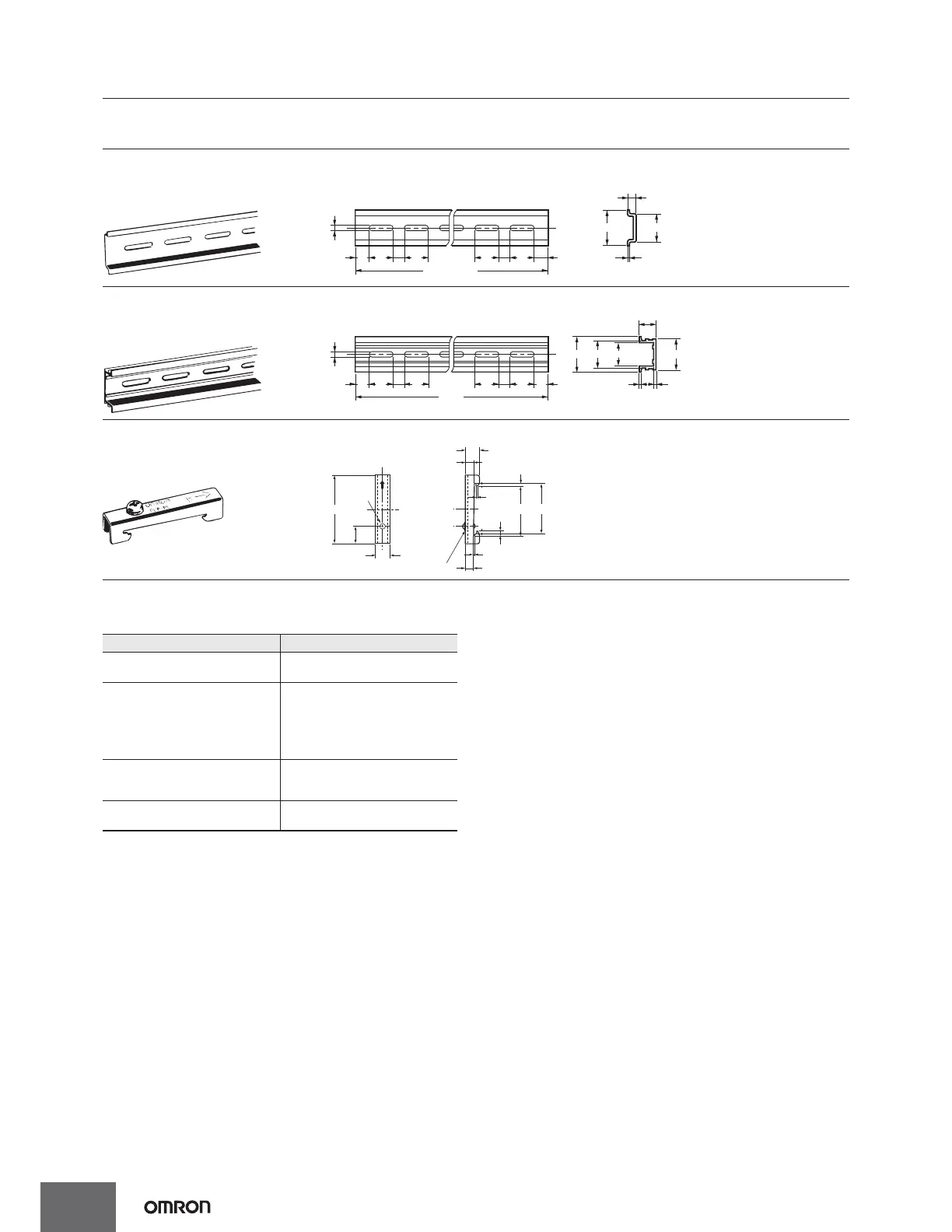

DIN Rail (Order Separately)
Note: All units are in millimeters unless otherwise indicated.
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from
aluminum abrasion.
Terminal Block Cover (Order Separately)
4.5
15 25 25
10 10
1,000 (500) *
25 25 15(5) *
35
±
0.3
7.3
±
0.15
27
±
0.15
1
* Values in parentheses are for the PFP-50N.
4.5
15 25 25
10 10
1,000
25 25 15
1 1.5
29.2242735
±
0.3
16
1.3
4.8
35.5
35.5
1.8
1.8
10
6.2
1
50
11.5
10
M4 spring washer
M4×8 pan-
head screw
Terminal Block Cover model Applicable models and locations
S82Y-VS-C2P-S
S8VS-15W
S8VS-30W
S82Y-VS-C3P
S8VS-60W input side
S8VS-90W input side
S8VS-120W input side
S8VS-180W input side
S8VS-240W input side
S8VS-480W input/output side
S82Y-VS-C2P-M
S8VS-60W output side
S8VS-90W output side
S8VS-120W output side
S82Y-VS-C4P
S8VS-180W output side
S8VS-240W output side
