Onan 12.0 RDJC Series User Manual

INTRODUCTION
This manual covers detailed installation procedures
for the_UL Listed/Onan model 12.0 RDJC-3CR
recreational vehicle electric generating set. Each
Onan RV electric generating set MUST be installed
properly if it is to operate reliably, quietly and most
important safely, even though the set itself meets or
exceeds all Listing Requirements. Being Listed
means this electric generating set meets or exceeds
all requirements of ANSI/NFPA 501C-1977 Chapter 4
(Electrical Systems) and Chapter 5 (Fire and Life
Safety) and ANSI/RVIA-EG1-1976as well as UL Sub-
ject 1248.
All RV installations MUST comply with these specifi-
cations as well as Article S51, ANSI C1-1975/NFPA
No. 70-1978 of the National Electrical Code. The RV
Manufacturer and/or the generator set installer
MUSTcomply with above codes and any local codes
which pertain to the generator set installation.
This manual provides detailed installation guide lines
for this Onan model ONLY. For operation and main-
tenance procedures, refer to the individual Opera-
tor's Manual which accompanies each set. The Oper-
ator's manual is #974-0124.
AIRCLEANER
ELEMENT (INSIDE)
FUEL
INLET
AIR RESTRICTION
INDICATOR
EXHAUST
MUFFLER
FUEL SEDIMENT
BOWL
GENERATOR
GENERATOR
AIR INLET
OUCT
AC JUNCTION
BOX
LOAD CIRCUIT
PROTECTORS
PRE-HEAT
SWITCH
AIR OUTLET DUCT
(THROUGH BASE PLATE)
START-STOP
SWITCH
REMOTE START-
STOP TERMINAL
BLOCK (INSIDE)
CONTROL
BOX

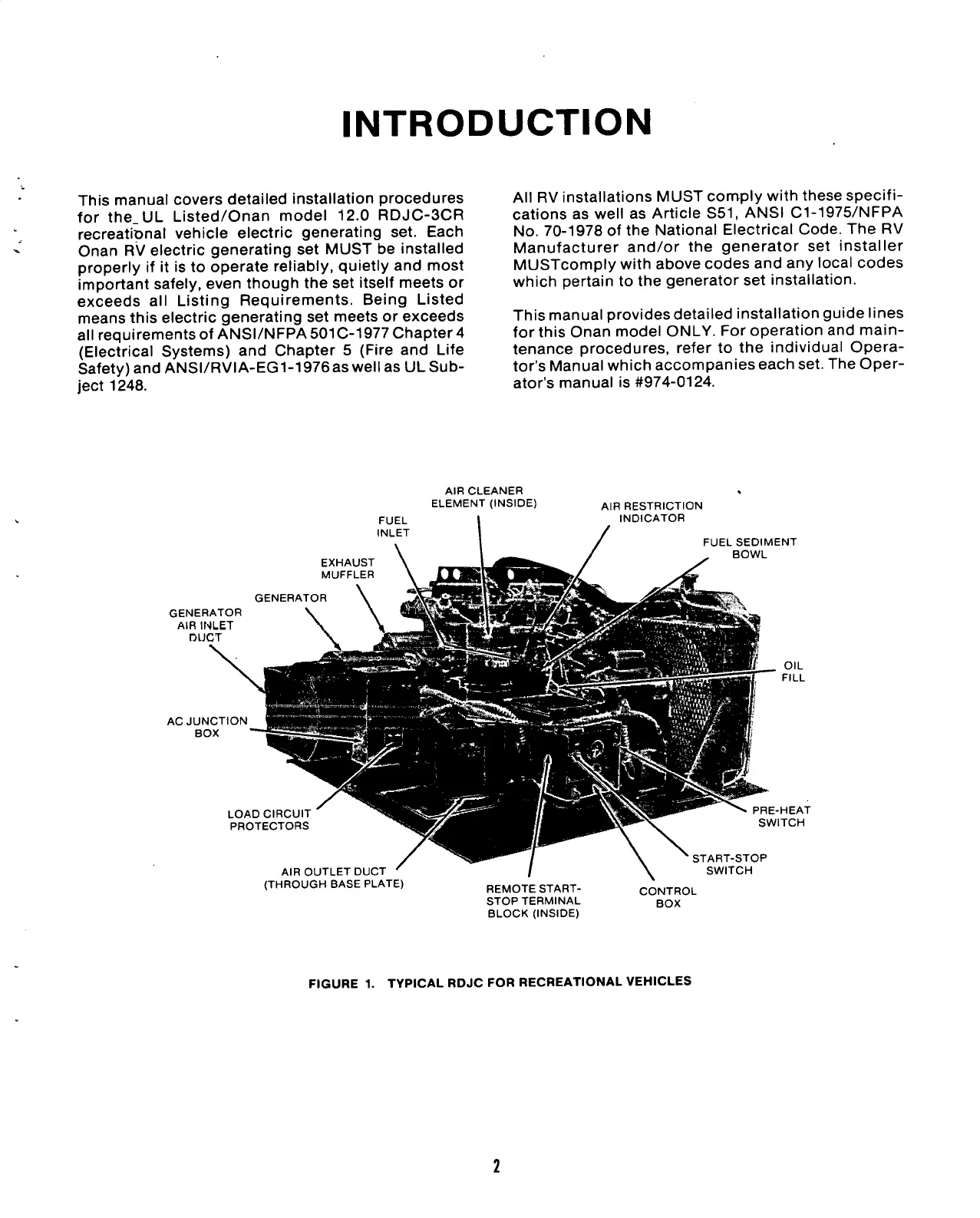

FIGURE 1. TYPICAL RDJC FOR RECREATIONAL VEHICLES

Onan 12.0 RDJC Series Specifications

General

Brand	Onan
Model	12.0 RDJC Series
Category	Portable Generator
Language	English
