5

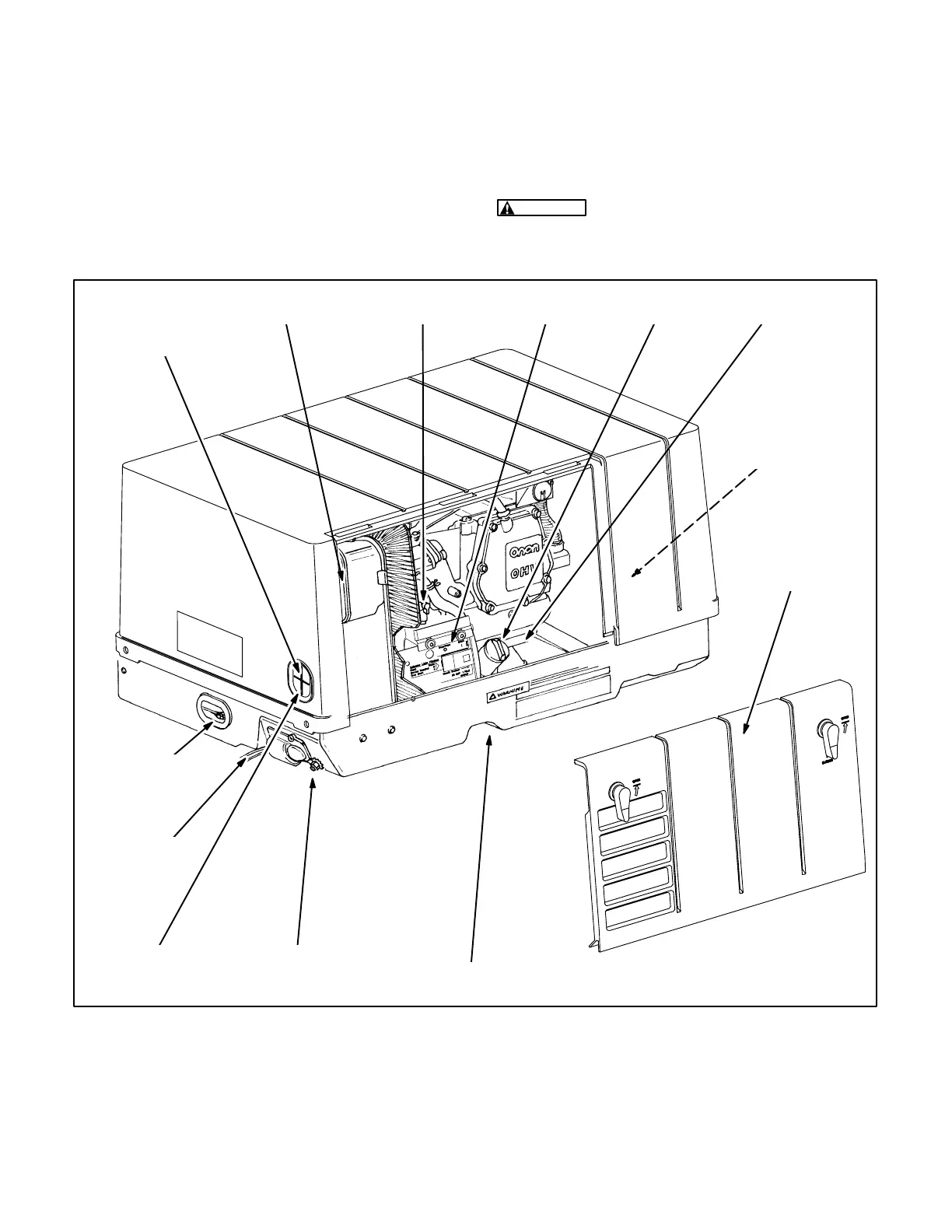

TYPICAL GENSET
Figure 1 illustrates a typical genset. See OUTLINE
DRAWING (Page 21) for installation details: mount-
ing bolt hole locations, connection points (fuel, bat-
tery, remote control, AC output and exhaust), sizes
and types of fittings, inlet and outlet air openings,
weight and overall dimensions, etc. See Pages 22,
23 and 24 for details of the underfloor mounting kits
available. See your Onan dealer for large-scale
copies of the drawings and for a full-size floor tem-
plate for floor opening cutouts.
CAUTION
Do not tip the genset forward or oil
will spill into the breather. Tip the genset back-
wards to loosen the shipping skid bolts.
MUFFLER WITH
CLEANOUT PLUGS
(accessible from below)
AIR CLEANER
COVER
ALTITUDE
ADJUST KNOB
OIL FILL CAP
& DIPSTICK
SPARK PLUG
(not shown)
CONTROL
PANEL
OIL DRAIN PLUG
(accessible from below)
MAINTENANCE
ACCESS COVER
AC
OUTPUT
LEADS
POS (+) BATTERY
CONNECTION
(inside)
NEG (−) BATTERY
& GROUND
CONNECTION
REMOTE
CONTROL
CONNECTION
(inside)
FUEL INLET
& FILTER
FIGURE 1. TYPICAL GENSET
